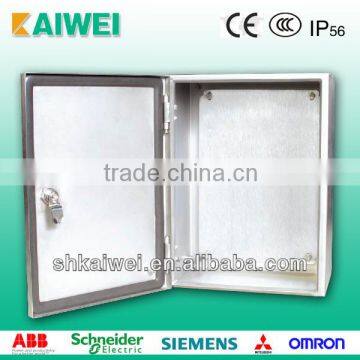

BAE waterproof electrical box

FOB Price

US$ 97 - 246 / Set

100 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Multiple Protection grooves can prevent the entry of dirt or water
2.PU foaming sealing strip ensures a protection class IP56

BAE waterproof electrical box

1. Material: SUS304(Other material can be optional)

2. Surface Treatment: Wire Drawing,Mounting Plate is Galvanized

3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing

Item Name:		BAE waterproof electrical box
Material:		SUS304(Other material can be optional)
Thickness:		Box Body:1.5mm Door Plate:2.0mm Mounting Plate:2.5mm

Standard Configuration:		Box Body,Door Plate,Sealing Strip,Grounding Sets,Mounting Plate,Door Lock

Surface Treatment:		Wire Drawing,Mounting Plate is Galvanized


Class of Protection:		IP56(According to GB4205-1993) PU Foaming Sealing

MOQ:		100 PCS
Supply Ability:		10000 PCS/Month
Delivery Time:		10-15 days
Remark:		Special Demands Can Be Customized

Details:

Main advantage of BAE waterproof electrical box:

PU foaming sealing strip ensures a protection class of IP56 to box body.
Galvanized mounting plate can also be used for wiring outside the box.
Multiple Protection grooves are designed at the box opening for reinforcement, which can prevent the entry of dirt or water when the door is opened.
Special SUS304 stainless steel lock system with double-teeth cylinder shows high quality and ensures universality.
Surface wire drawing treatment (sand blasting is available in high-class box).
