AST High Quality Hot Runner Coil Heater

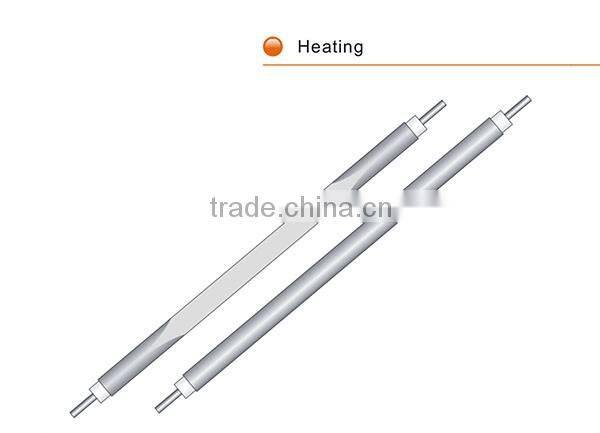

KYLIN manufactures high quality minitubular heaters that assure the best with respect to safety and performance.Minitubular heater owes it importance to his great versatility; the possibility to reach high working temperatures in small spaces allows to support the most difficulit needs. KYLIN minitubular heater can be manufactured with differents lengths, powers and sections, and are avaliable from stock also with thermocouple built-in (type J).

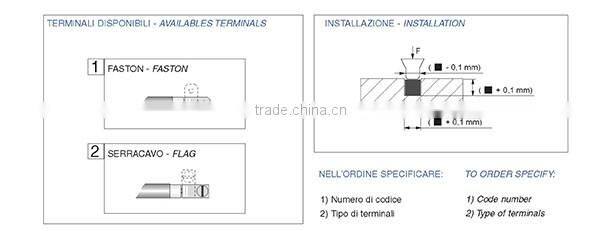

The most advanced technological solution for the injection manifold heating. The square section of the heating part allows an exceptional heat exchange, along with an extremely easy installation. At this subject, it is sufficient to make a square section groove where the heater can be fitted, and further pressed. This application, as per below scheme,allows to use these heaters without any fixing system to mantain them in position and to get a better heating exchange. It is obvious that the application of our heaters, as above described, will guarantee both the perfect anchoring into the groove and the perfect contact and heat transmission of three sides of the heater.

Voltage: up to 250 V

High voltage flash test (cold): 800 V (AC)

Insulation resistance (cold): > 5 MΩ for 500 V (DC)

Leakage current (cold): < 0.5 mA for 253 V (AC)

Surface temperature: max. 750°C

Length : max. 3000 mm

length tolerance: ± 5%

Diameter tolerance:± 0.15 mm

Leads: PTFE insulation, heat resistant up to 260°C

Power tolerance (cold) Standard:±10%

On request: ± 5%

Sheath material: quality 1.4541

Power density: max. 15 W/cm²

Resistance per meter heated length: 20 to 1400Ω

Thermocouple: type J / K

Test Following to EN 60335/2/11 & EN 60204-1

SuZhou Kylin Electronic Technology Co.,Ltd was founded in 2007. After 10 years of efforts and development, we has a certain scale and strength. We specialize in industrial communications products and temperature control equipment's research and development, manufacturing and sales of FCS, and has a highly skilled R & D team and a good after-sales service system.

The Company is a professional provider of hot runner accessories, which cover hot runner temperature controller, temperature control component, connector, cable, heater and thermocouple in various specifications. Our one-stop shop enables you to enjoy cost-effective and professional service. In comparison with purchasing various accessories from different manufacturers, one-stop shopping allows you to have initiative for buying products at the most preferential price. In comparison with purchasing various accessories from different manufacturers, one-stop shopping provides you with more choices for selecting proper products according to specific requirements of hot runner system. Your best choice is to come to Jinqilinthe outstanding provider for one-stop shopping.

 1. OEM Service

 2. Have professional R&D group,all your techical requirement will be customized

 3. 24 online service,email will get back in 24 hours

AST high quality hot runner coil heater

Contact us if you require specific details for your application.

We will response and fulfill your needs soonest.

Looking forward to your inquiry and develop a long-term business relationship with you!
