Formwork/concrete Formwork for Dams , Cooling Towers With Side Climbing System

Specifications

Aluminium formwork: Safe Single - Side Climbing System / Climbing Formwork For Dams , Cooling Towers

Aluminium formwork: Safe Single - Side Climbing System / Climbing Formwork For Dams , Cooling Towers Concrete Slab Formwork

Introduction
Plywood 18mm as the skin, timber beam H20 as the primary and secondary beam, steel prop or scaffolding as the support system.

Advantages:
Easy operation, save material and time.
High rigidity and repeat rate.
High standard components make low cost available.
The construction site is safe and fast.

H20 Timber Beam Specifications:

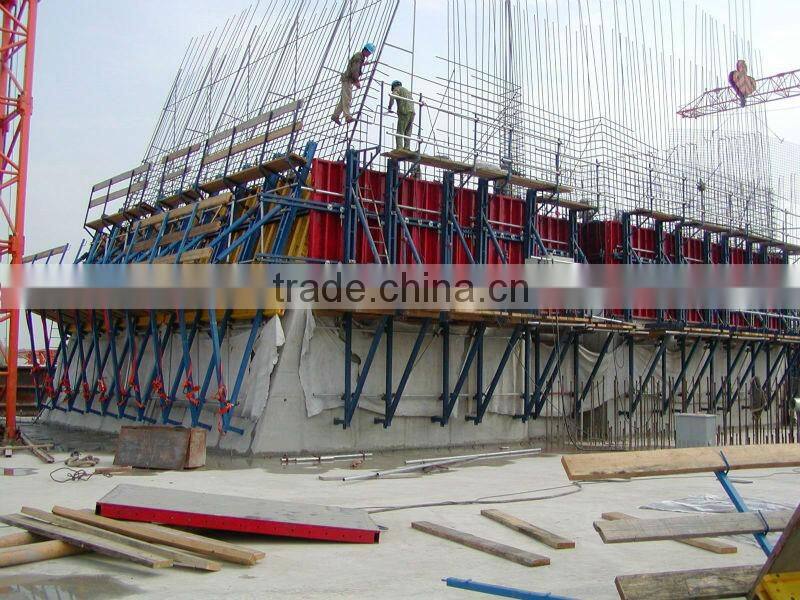

With SCB180 climbing systems, the loads from the fresh concrete pressure are transferred through the brackets by means of V-strongbacks and compression braces into the scaffold anchors.

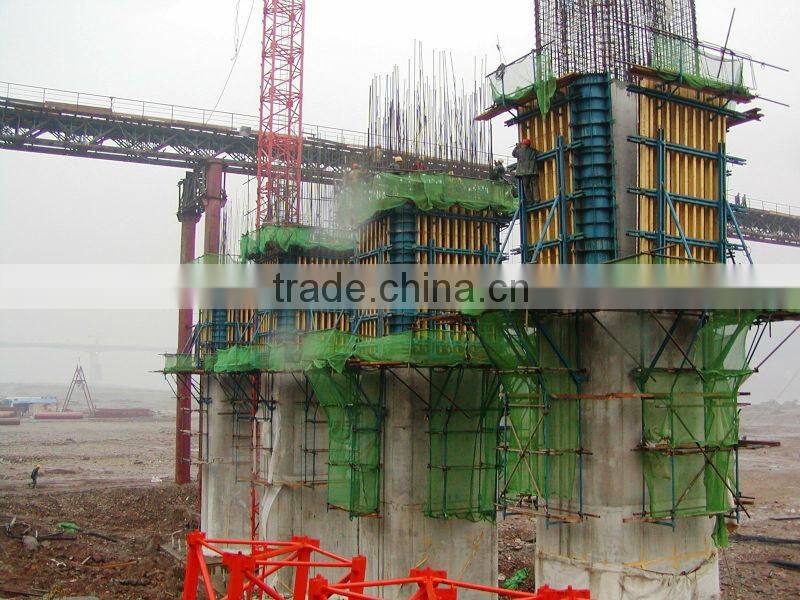

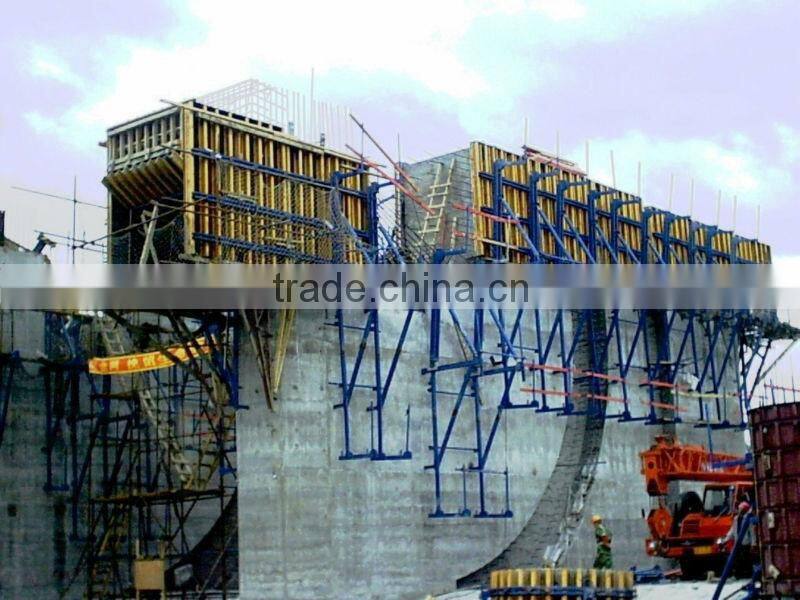

Typical applications for the SCB 180 system are dams, locks, cooling towers, pier heads, tunnels, and bank vaults.

The formwork is simply tilted backwards when striking takes place. The 1.80 m wide bracket requires only a minimum of space.

Competitive Advantage:

1. Economical and safe anchoring

The M30/D20 climbing cones have been designed especially for single-sided concreting using SCB180 in dam construction, and to allow the transfer of high tensile and shear forces into the still fresh, unreinforced concrete. Without wall-through tie-rods, finished concrete is perfect.

2. Stable and cost-effective for high loads.

Generous bracket spacing allow large-area formwork units with optimal utilization of the bearing capacity. This leads to extremely economical solutions.

3. Simple and flexible planning

With SCB180 single-sided climbing formwork, circular structures can also be concreted without undergoing any large planning process. Even use on inclined walls is feasible without any special measures because additional concrete loads or lifting forces can be safely transferred into the structure.

4. It is with the advantages of standard design, excellent applicability and interchangeable.

Package:

Applications:

As a kind of girder, it is an important constituent part for formwork and it is widely used in concrete formwork construction.
