Home > Products > CO2 Laser Engraving And Cutting Machine > 6040 laser engraving an d cutting machine /CO2 wood acrylic leather cutting and engraving machine

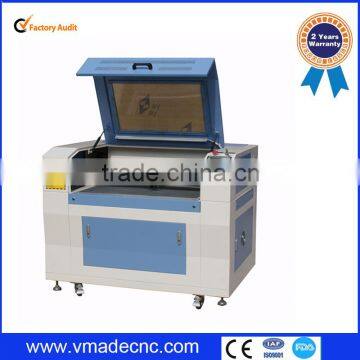

6040 laser engraving an d cutting machine /CO2 wood acrylic leather cutting and engraving machine
- qngdao shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Cheap 80W CO2 Small MDF Wood Acrylic Paper Fabric Laser Cutting Machine Price
-
High Speed Mobile Screen Protector And Label Sheet CO2 Laser Cutting Machine For Sale
-
Factory direct Cheap Hot Sale Fabric/Acrylic/Wood/ CO2 Laser Cutting Engraving Machine
-
Double 80w CO2 Laser Engraving Cutting Machine Engraver for sale
-
UP and Down CO2 Laser Engraving Cutting Machine Engraver 40w/50w/60w/80w/100w/130w//150w
-
CO2 Up and Down Table Laser Cutting and engraving Machine for leather
Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Wood | Cutting Thickness | 0-30mm | |
| Cutting Area | 1000*600*240mm ,1300*900*240mm | Cutting Speed | 0-1000mm/s | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | DSP | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | VMAD | |
| Model Number | VLC | Certification | CE, Other, CE, CE Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
6040 laser engraving an d cutting machine /CO2 wood acrylic leather cutting and engraving machine
Main Features Al platform design with 240mm height to ensure rotary device working smoothly.
2.48 gears improve lifting strength on basic of big contacting area.
3.Adjustable design of bold screw holder offer lower noisy and stable moving.
4.Both limited switches on top and bottom, protecting working table.
Features of co2 laser cutting machine
1. Taiwan HIWIN square guide rails for XYZ-axis
2. sealed CO2 laser tube with 40W,60W,80W,100W,130W,150W, we use famous RECI brand las er tube made in Beijing.
3. Leadshine stepper motor and driver .
4.Belt transmission, also can be optional ball screw transmission, if you need, we can produce it for you
5.laser head with red light positioning function
6. exhaust fan and air pump, so it can adsorb the smoke when you engrave and cut the materials
7.water chiller, it can recycle the water and then cool the laser tube.
8.Ruida or Leetro control system in English, with USB interface
9. knife table or honeycomb table, it's up to you, if you want to cut cloth or fabric, it's best for you to choose honeycomb table
10. We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. 10,000hours' working time, 300days warranted.
Samples
Technical Parameter
Model | VLC-N1006 | VLC-N1309 | Option |
Working Area | 1000*600*240mm | 1300*900*240mm | According to demands |
Laser Power | 40w/50w/60w/80w/100w/130w//150w | ||
Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
Cooling Type | Water Cooling | ||
Engraving Speed | 0-60000mm/min | ||
Cutting Speed | 0-40000mm/min | ||
Laser Output Control | 0-100% Set by Software | ||
Min.Engraving Size | Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm | ||
Highest Scanning Precision | 4000DPI | ||
Locating Accuracy | ≤+0.01mm | ||
Controlling Software | DSP Control System | ||
Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
Compatible Software | CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. | ||
Color Separation | Yes | ||
Drive System | High-precision 3-phase Stepper Motor | ||
Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
Working Environment | Temperature:0-45C,Humidity:5-95%(No Condensate Water) | ||
Packing Size | According to the Model | ||
Net Weight | According to the Model | ||
Option | Honeycomb Worktable,Rotary Device,Auto-focus Devic | ||
5-7 working days for shipment
wooden packaging with ship and planes
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City,
Shandong Province of China.
It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate andattentive attitude on every step and always keep to learn the most advanced technology and create
more humanized products to all our customers.
Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ?
If you have any questions, Please contact us
Contact Us
- Jinan Vmade CNC Machine Co., Ltd.
- Contact nameLisa Sun Chat Now
- Phone86-0531-88971992
- AddressNo. 20-2-802, Feicui Qinghe, Licheng District
