Spindle Motor 1500w ,air Cooled Way
- shanghai
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
-
5.5kw Water Cooled Spindle Motor ,cnc High Frequency Motor Spindle
-
3kw Atc Milling Motor Water Cooled Cnc Router Spindle Motor Quality Choice
-
3kw Air Cooled Spindle Motor ,cnc Drilling
-
4.5kw Electric Spindle Motor,high Speed Tool Change Spindle Motor Quality Choice
-
3.5kw Air Cooling Spindle Motor for Woodworking Cnc Router Cnc Spindle Motor
-
1.5kw Water Cooled Spindle Motor for Cnc ,high Speed Spindle Motor 1500w
Product Details
| Place of Origin | Jiangsu, China | Brand Name | GDZ | |
| Model Number | GDZ80-1.5 | Application | Milling | |
| Maximum Torque | 1.5KW | Drive | Motor | |
| Operating Speed | 18000r/min |
Product Description
spindle motor 1500w ,air cooled way
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life

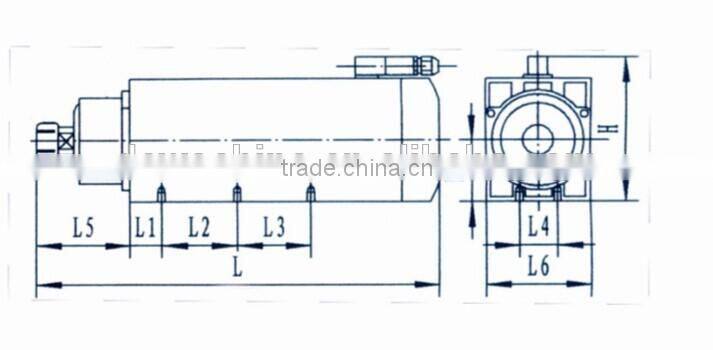

The dimension of air spindle motor
Technical date and models:
| spindle type | speed | rated power | voltage | current | frequency | Demensions(mm) | Joint of nose | cool way | ||||||||||||||
| (r/min) | (kw) | (V) | (A) | (Hz) | L | L1 | L2 | L3 | L4 | L5 | L6 | H | H1 | X-M | collect | |||||||
| GDZ75x80-700 | 20000 | 0.7 | 220 | 4 | 333 | 206 | 27 | 40 | 40 | 22 | 32 | 80 | 95 | 41 | 6-M6 | ER11 | air | |||||
| GDZ93x82-2.2 | 18000 | 2.2 | 380 220 | 5.5 10 | 300 | 285 | 37 | 90 | | 30 | 76 | 82 | 120 | 42 | 4-M6 | ER25 | air | |||||
| GDZ93x82-3.5 | 18000 | 3.5 | 380 220 | 8.8 15 | 300 | 327 | 37 | 90 | | 30 | 76 | 82 | 120 | 42 | 4-M6 | ER25 | air | |||||
| GDZ120x103-4.5 | 18000 | 4.5 | 380 | 9.5 | 300 | 328 | 25 | 60 | 60 | 36 | 91 | 103 | 146 | 60 | 6-M8 | ER32 | air | |||||
| GDZ120x103-6 | 18000 | 6 | 380 | 12.6 | 300 | 371 | 40 | 60 | 60 | 36 | 91 | 103 | 146 | 60 | 6-M8 | ER32 | air | |||||

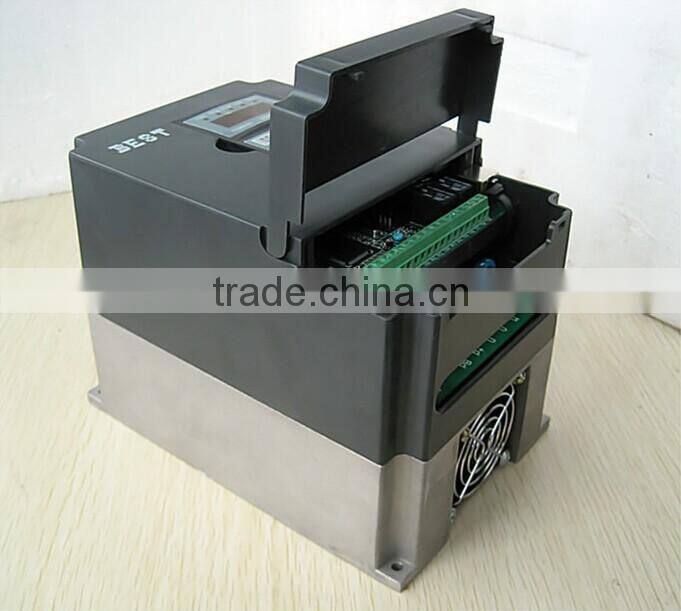

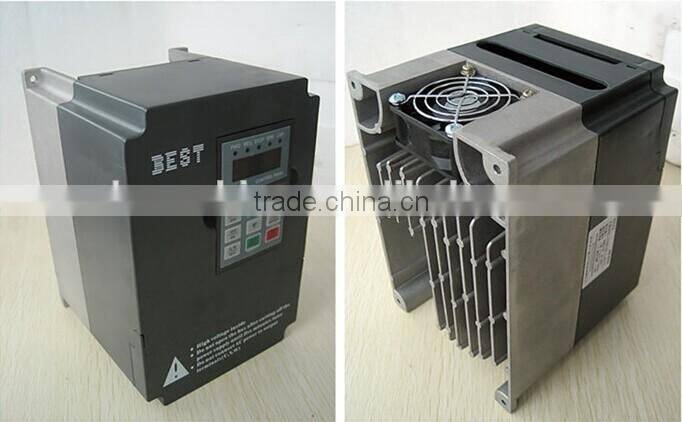

Suitful VFD (220VAC or 380VAC)

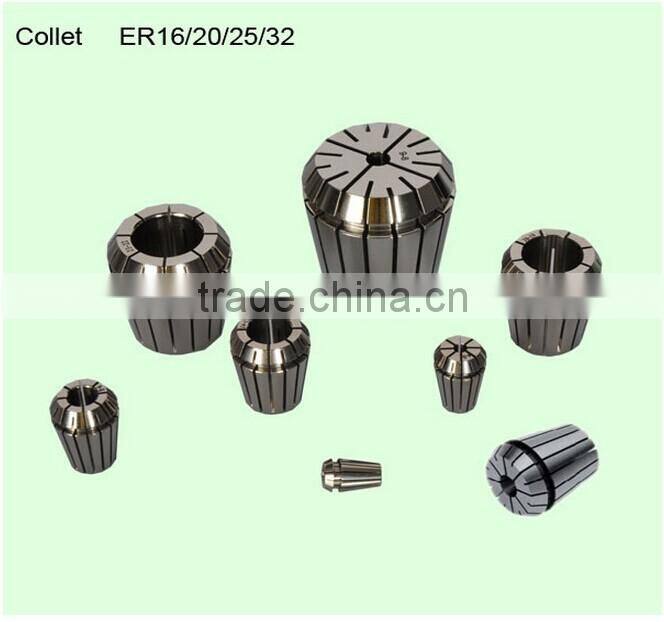

Suitful collet (ER serise)

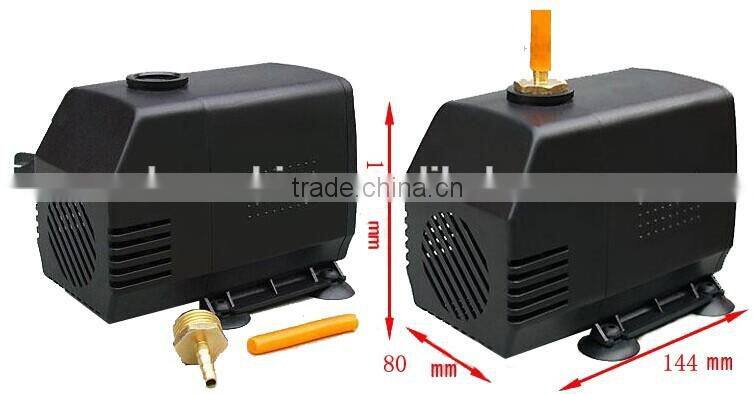

Water pump

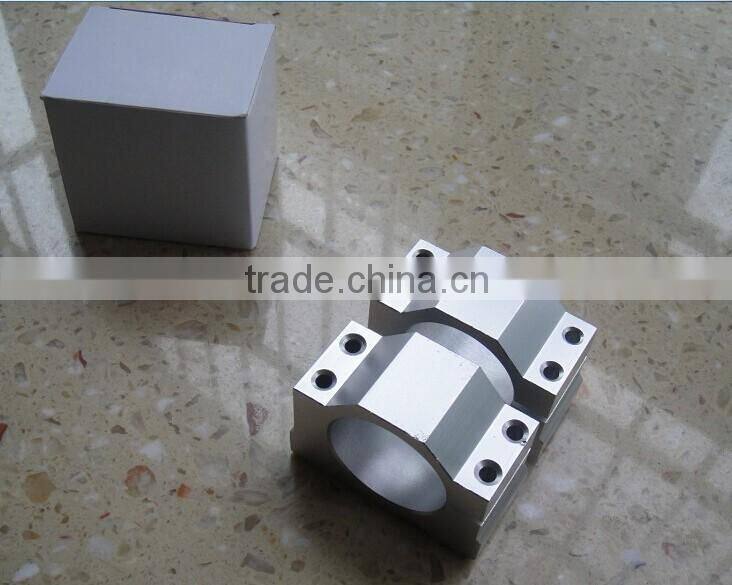

Bracket holder:
We provide standard packing for products.
Plastic foam will be put in carton boxes.
We deliver our goods by sea, air and courier service.
You may contact us to check the shipping status of your order.
Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.
Except stepper motor , we also supply breakout board, power supply and so on ,pls check following items.
Terrific after-sales service: 24hours around the clock & 12 months Warranty
Life-long maintenance service for the product.
If you need more information, Pls contact to me.
Our contact information:
Changzhou Dewo International Co.,Ltd
Contact Person : wendy wang
Mobile:86-18018256960
Skype: 816
More Quantity . more discount !!!
Changzhou Dewo International Trade Co., Ltd., exporting stepper motors, motor drivers, BLDC motor and PM motor. We spcialize in this field for many years, with the strength of high quality and competitive price in China.
We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!
our certification:
Our team and Exhibition:
our friend:
Question 1: How to choose the suitable stepper motor?
Answer: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one.
Question 2: Any other methods to finalize the model?
Answer: Sure, you can send us the model you are using, we can help you find the suitable one.
Question 3: When can I get the drawing of stepper motor?
Answer: We will provide drawings of stepper motor after you place the order.
