Worm Gearbox Motor Nema 15 Square Stepping Motor Large Torque ,vibration Motor
- Shanghai
- T/T Credit Card
You May Like
-
Low Price Motor Stepper Nema 14 35mm 3d Printer Reprap, Mini Split Air Conditioner
-
1.8 Degree Nema 15 Stepper Motors for Lighting,motor Products International
-
Hybrid Geared Nema 8 20mm 2 Phase Hybrid Step Motor Mini , Temperature Control 3d Printer
-
Hybrid Geared Nema 8 20mm 2 Phase Hybrid Stepping Motor, Pci International
-
Closed Loop Nema 14 High Torque 2/4 Phase Stepper Motor Micro Stepper Motor , Linear Motor Low Price
-
2 Phase Nema 43 110mm High Torque Stepper Motor 21 N.m
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DEWO, DEWO | |
| Model Number | DW39HS20-0506, DW39HS20-0506 | Phase | 2 | |
| Type | Hybrid | Certification | CE, ROHS | |
| Step Angle(degrees) | 1.8 degree | Holding Torque | 11 oz-in/0.80 kg.cm | |
| Current / Phase | 0.50A |
Product Description
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full step,no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80°CMax.(rated current,2 phase on) |
Ambient Temperature | -10°C to +50°C |
Insulation Resistance | 100MΩMin. 500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06Max.(450 g-load) |
Shaft Axial Play | 0.08Max.(450 g-load) |

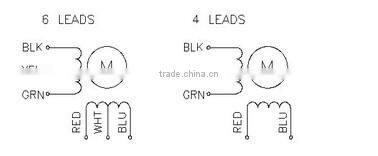

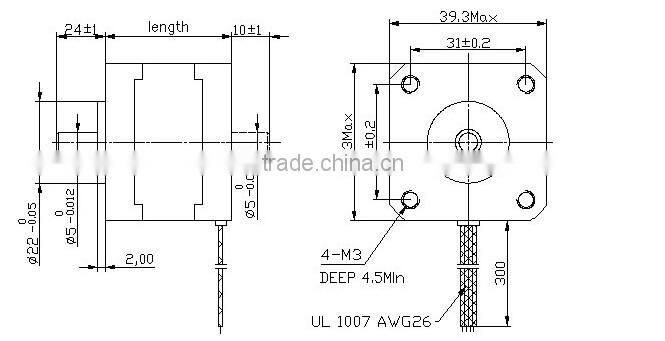

Model No | Current/Phase | Resistance/Phase | Inductance/Phase | Holding Torque | #Of Leads | Rotor Inertia | Weight | Length | |
A | Ω | mH | Oz-in | g-cm | g-cm2 | Kg | mm | ||
DW39HS20-0404 | 0.40 | 6.6 | 7.5 | 9 | 650 | 4 | 11 | 0.12 | 20 |
DW39HS20-0506 | 0.50 | 13 | 7.5 | 11 | 800 | 6 | 11 | 0.12 | 20 |
DW39HS34-0654 | 0.65 | 7 | 9.3 | 25 | 1800 | 4 | 20 | 0.18 | 34 |
DW39HS34H-0404 | 0.40 | 30 | 32 | 29 | 2100 | 4 | 20 | 0.18 | 34 |
DW39HS34H-0604 | 0.60 | 15 | 16 | 31 | 2200 | 4 | 20 | 0.18 | 34 |
DW39HS34H-0606 | 0.60 | 40 | 21 | 18 | 1300 | 6 | 20 | 0.18 | 34 |
DW39HS34H-0166 | 0.16 | 75 | 50 | 15 | 1100 | 6 | 20 | 0.18 | 34 |
DW39HS38H-0504 | 0.50 | 24 | 45 | 40 | 2900 | 4 | 28 | 0.2 | 38 |
DW39HS38H-0806 | 0.80 | 7.5 | 6 | 28 | 2000 | 6 | 28 | 0.2 | 38 |
DW39HS44H-0304 | 0.30 | 40 | 100 | 39 | 2800 | 4 | 36 | 0.25 | 44 |
