Home > Products > Hybrid stepper motor > Hybrid Geared Nema 8 Welding Square 20mm Stepper Motor, 3d Printer : Reprap Prusa

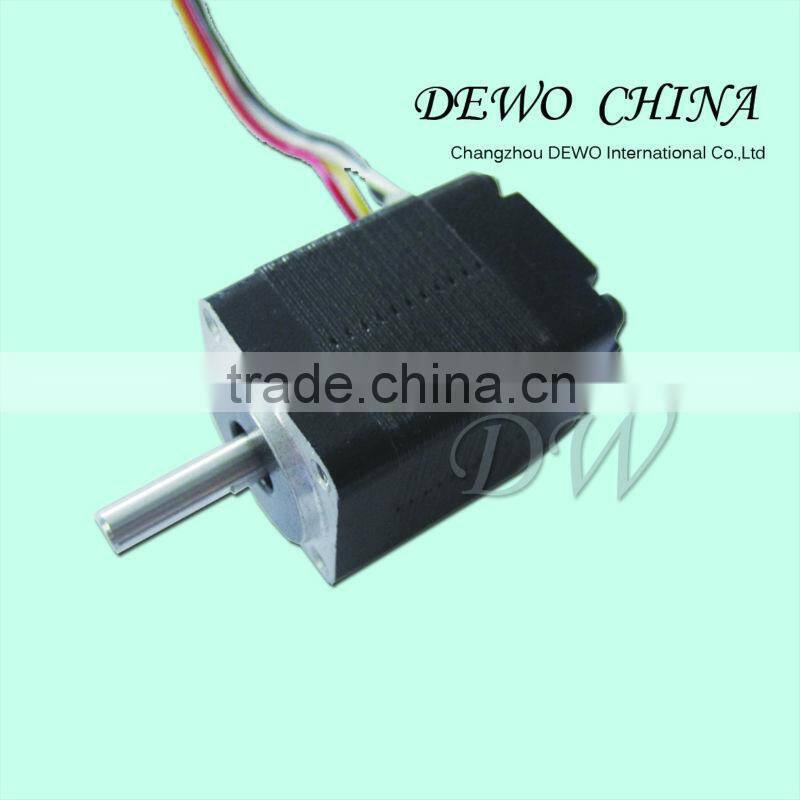

Hybrid Geared Nema 8 Welding Square 20mm Stepper Motor, 3d Printer : Reprap Prusa
US$ 8 - 10
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
Hybrid Geared Nema 8 Motor Step 20mm Large Torque, Pci International
-
Price of 1.8 Degree Low Speed High Torque Nema 34 Single Phase Hybrid Stepping Motor
-
Nema 14 Step Motor Cheap Electric Motors
-
Hybrid 2 Phase Nema 17 Bipolar Stepper Motor 12 Volt
-
Hybrid Geared Stepper Motor Nema 8 Ratio 1:15, 3d Printer : Reprap Prusa ,20mm 12v dc Motor
-
High Torque Nema 17 Stepper Motor Electrical Machine Size 42*48mm
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DEWO | |
| Model Number | DW20HS33-0604 | Phase | Other, 2 or 4 | |
| Type | Hybrid | Certification | CE, ISO, ROHS, UL | |
| Step Angle(degrees) | 1.8 | Holding Torque | 2.2-5.6 oz-in/160-400g-cm | |
| Current / Phase | 0.20-0.60A |
Product Description
Technique Parameter
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full step,no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80°CMax.(rated current,2 phase on) |
Ambient Temperature | -10°C~+50°C |
Insulation Resistance | 100MΩMin. 500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06Max.(450 g-load) |
Shaft Axial Play | 0.08Max.(450 g-load) |
DW20HS Motor Name List(1.8.)
Model No | Current/Phase | Resistance/Phase | Inductance/Phase | Holding Torque | #Of Leads | Weight | Length | |
A | Ω | Mh | Oz-in | g-cm | Kg | mm | ||
DW20HS28-0204 | 0.20 | 24 | 8 | 2.2 | 160 | 4 | 0.05 | 28 |
DW20HS30-0506 | 0.50 | 11.5 | 1.7 | 2.5 | 180 | 6 | 0.06 | 30 |
DW20HS33-0604 | 0.60 | 6.5 | 2.2 | 2.8 | 200 | 4 | 0.07 | 33 |
DW20HS38-0604 | 0.60 | 10 | 5.5 | 5.6 | 400 | 4 | 0.08 | 38 |
