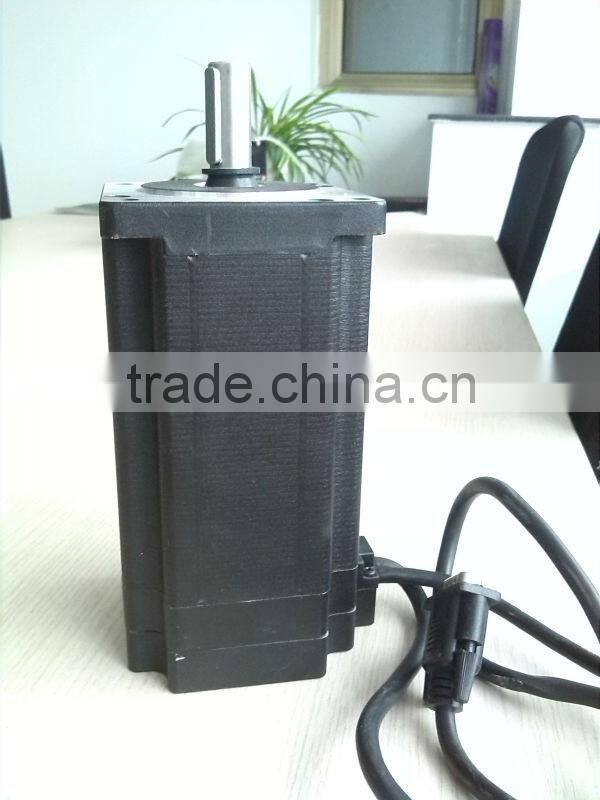

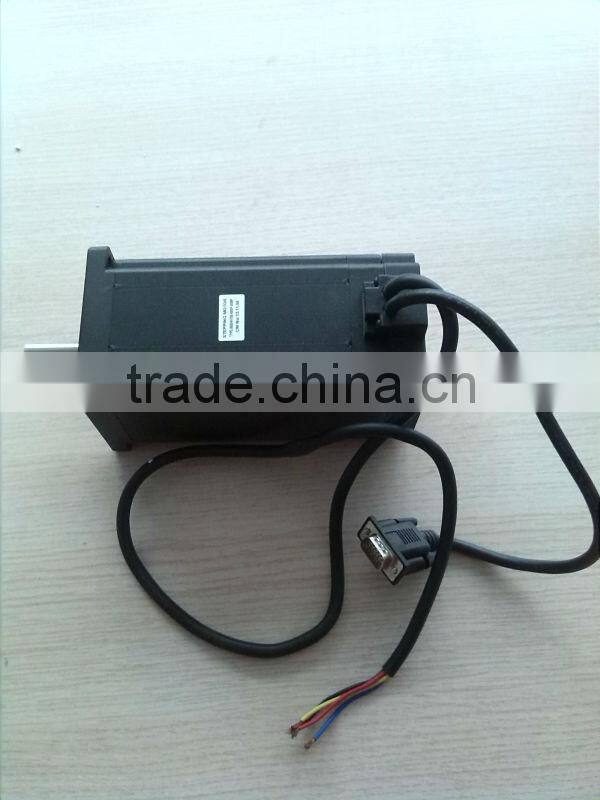

1.8 Degree ,size 86 Closed Loop Stepper Motors Manufacturing
- SHANGHAI
- T/T
You May Like
-
High Speed Micro Motor With Encoder ,servo Motor& Nema 34 Stepper Motor
-
1.8 Degree ,size 86 Closed Loop Hybrid Stepping Motor Manufacturing
-
Hybrid Nema 23 Micro Stepper Motor Encoder
-
Nema 23 High Quality Hybrid Encoder Stepper Motor
-
High Quality Nema 34 China Cheap Stepper Motor ,encoder Close Loop Motor,easy-servo
-
High Quality Nema 24 Easy Servo Motor 3kg Torque
Product Details
| Place of Origin | Jiangsu, China | Brand Name | DEWO | |
| Model Number | DW86HS118-4504A-40MP | Phase | 2 | |
| Type | Hybrid | Certification | CE, ISO, ROHS, UL | |
| Step Angle(degrees) | 1.8° | Holding Torque | 895 in-Oz/ 62kg.cm | |
| Current / Phase | 4.5A |
Product Description

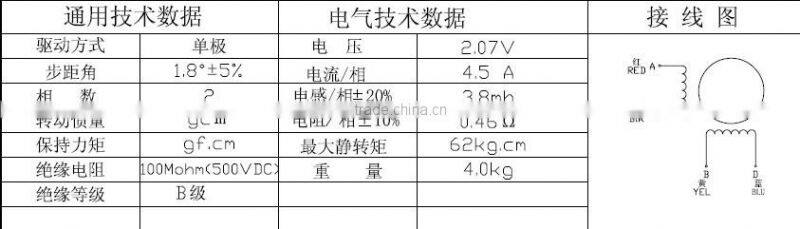

Technique parameter
Item | Specification |
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full step,no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80°CMax.(rated current,2 phase on) |
Ambient Temperature | -10°C~+50°C |
Insulation Resistance | 100MΩMin. 500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06Max.(450 g-load) |
Shaft Axial Play | 0.08Max.(450 g-load) |
DW86HS Motor Name List(Square)
Model No | Current | Resistance | Inductance | Holding Torque | #Of Leads | Rotor Inertia | Detent Torque | Weight | Length | ||
A | Ω | mH | Oz-in | Kg-cm | g-cm2 | (kg.cm) | Kg | mm | |||
DW86HS65-2808 | 2.80 | 1.4 | 3.9 | 250 | 18 | 8 | 1000 | 0.8 | 1.7 | 65 | Φ14*37 |
DW86HS65-5904 | 5.90 | 0.28 | 1.7 | 250 | 18 | 4 | 1000 | 0.8 | 1.7 | 65 | Φ14*37 |
DW86HS75-2008 | 2.00 | 2.2 | 10 | 291 | 21 | 8 | 1400 | 1.7 | 75 | Φ14*37 | |
DW86HS75-4004 | 4.00 | 0.5 | 2.5 | 347 | 25 | 4 | 1400 | 1.7 | 75 | Φ14*37 | |
DW86HS80-4208 | 4.20 | 0.75 | 3.4 | 486 | 35 | 8 | 1400 | 1.2 | 2.3 | 80 | Φ14*37 |
DW86HS80-5504 | 5.50 | 0.46 | 4 | 486 | 35 | 4 | 1400 | 1.2 | 2.3 | 80 | Φ14*37 |
DW86HS94-2008 | 2.00 | 3.2 | 15 | 611 | 44 | 8 | 1700 | 2.1 | 94 | Φ14*37 | |
DW86HS94-4008 | 4.00 | 0.8 | 3.5 | 597 | 43 | 8 | 1700 | 2.1 | 94 | Φ14*37 | |
DW86HS113-3504 | 3.50 | 0.53 | 6.5 | 763 | 55 | 4 | 2700 | 2.8 | 113 | Φ14*37 | |
DW86HS113-6008 | 6.00 | 0.43 | 2.5 | 763 | 55 | 8 | 2700 | 2.8 | 113 | Φ14*37 | |
DW86HS118-4208 | 4.20 | 0.9 | 6 | 833 | 60 | 8 | 2700 | 2.4 | 3.8 | 118 | Φ14*37 |
DW86HS118-6004 | 6.00 | 0.6 | 6.5 | 902 | 65 | 4 | 2700 | 2.4 | 3.8 | 118 | Φ14*37 |
DW86HS151-2008 | 2.00 | 3.9 | 20 | 1110 | 80 | 8 | 3600 | 3.7 | 151 | Φ14*37 | |
DW86HS151-3004 | 3.00 | 1.9 | 22 | 1110 | 80 | 4 | 3600 | 3.7 | 151 | Φ14*37 | |
DW86HS156-4208 | 4.20 | 1.25 | 8 | 1180 | 85 | 8 | 4000 | 3.6 | 5.4 | 156 | Φ14*37 |
DW86HS156-6204 | 6.20 | 0.75 | 9 | 1249 | 90 | 4 | 4000 | 3.6 | 5.4 | 156 | Φ14*37 |
