Home > Products > Al or Cu punching and bending devices > Busbar Multi Functional Punching Machines

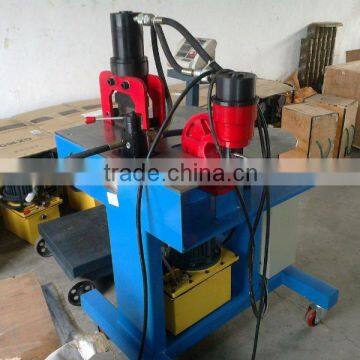

Busbar Multi Functional Punching Machines
Negotiable
/ Unit
1 Unit(Min. Order)
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | guomai | |
| Model Number | OK-501 |
Product Description
Specifications
1)Apply to: horizontal-cutting;vertical-cutting;2)bending;punching;cutting
3)Working Desk dimension: 600mm(L)x600(W)x770mm(H)
Product number | 0071 |
Type | Ok-502 |
General working pressing force(psi) | 1000 |
Electric power | 220V/380V 50HZ |
Cutting working force(KN) | 200 |
Cutting scope(mm) | Cu,Al plate<150x12mm |
Punching working force(KN) | 55-300KN |
Punching scope(mm) | Ø11.5Ø19.5mm 5 moulds |
Bending working force(KN) | 270KN |
Horizontal capacity(mm) | Cu,Al<125x12mm |
Vertical capacity(mm) | Cu,Al<125x12mm |
Horizontal angle(º) | 0-135º |
Vertical angle(º) | 0-90º |
weight | 180kg |
