Product Details
| Products Status | Stock | Screen Size | Other, 22 inch | |
| Type | Other, Capacitive, Projected Capacitive Touch Screen | Interface Type | USB | |
| Resolution | Other, 4096 * 4096 | Brand Name | KingTouchGroup | |
| Model Number | KTT-PCT22K | Place of Origin | Guangdong, China |
Product Description
KingTouch Technology Group Limited
Projected Capacitive Touch Screen(10 touch points)
(PCAP)Capacitive Multi Touch Screen Specification:
KingTouch's projected capacitive touch screen is developed by American expert,used high quality raw material imported from Japan,and the quality control is under the super vision of Taiwanese esperienced technical stuff.The item has long life,high stability,high transmittance,large size,maintenance free features,and is idea for smart phone,trblet PC,Gps
Advantage:
-Capacitive touch technology.
-Highest resolution, sensitive and fast response
-Easy to install with LCD monitor
-Dustproof and Waterproof maintenance free.
-Touch screens can be built in specific dimensions requested by clients in custom orders
-Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.
Application:
-Point-of-information kiosks
-Vending and ticket sales
-Electronic catalogs
-Gaming, lottery, and amusement
-Public pay phones
-Multimedia marketing
-Banking/financial transactions
-Industrial control rooms
-Computer-based training
| OS | Version | Interfaces |
| Windows | Windows 8(Need logo submission) Windows 7 Windows Vista, XP/2000 Windows /5.0/6.0/7.0 Windows Embedded Windows XP Tablet PC edition | USB/RS232 |
| Linux | Distribution based on Kernel 2.6.24 and later. (Ubuntu/Linux Mint Debian Fedora Red Hat/CentOS Magaie/Mandriva/Mandrake SUSE/openSUSE | USB/RS232 |
| Android 2.3 ~ 4.4 | USB/RS232 | |
| Mac | Mac OS, Mac OS X (PowerPC, Intel CPU) | USB |
| QNX | QNX RTOS v6.3 | USB/RS232 |
Projected Capacitive Touch Panel Specification
Product model | KTT-PCT15K |
Dimensions | 15" |
Structural | GG |
Drive form | COB |
Rati | 4:3 |
Lens OD | 452.8mm*281.4mm*1.1mm |
Lens VA | 412.8mm*233.4mm |
Sensor OD | 438.8mm*267.4mm*1.1mm |
Thickness | 2.4mm |
Surface hardness | 6H |
Transparency | >90% |
Operating temperature | -30 °C -- +75 °C |
Storage temperature | -40 °C -- +85 °C |
Relative Humidity | 90% at 60°C |
Linearity | 1PT:+/-1mm,10PT:+/-2.5mm |
Touch life | >300,000,000 times |
Max. Resolution | 4096 x 4096 (Automatic matching ) |
Max. Support Points | Max,10 points |
Control Type | PCBA control board |
Connector Type | USB |
Interface to Host/Master | USB, 4 wire, 2.0 Full speed |
Supply Voltage | USB 5VDC |
Power Consumption | Active Mode:<30mA,Idle Mode:5mA |
Oscillator Frequency | 12MHz |
Response Time | <10ms |
Min. Report Rate | 10PT: 80Hz |
Max. operating frequency | 100 MHz |
ESD.Air discharge | 8KV |
ESD.Contact discharge | 4KV |
Operating system | Windows7/Windows8/Windows XP linux,Android Mac |
Adapter ripple | Vpp<50mv |

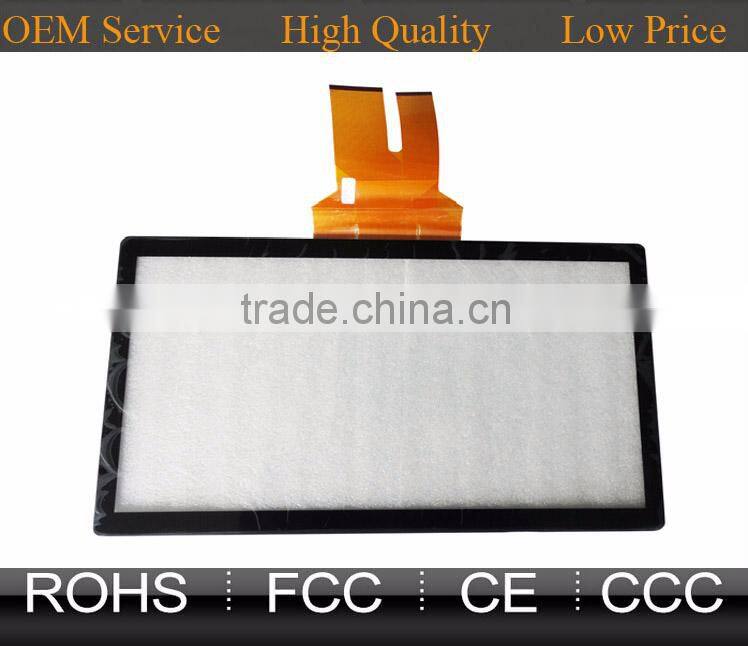

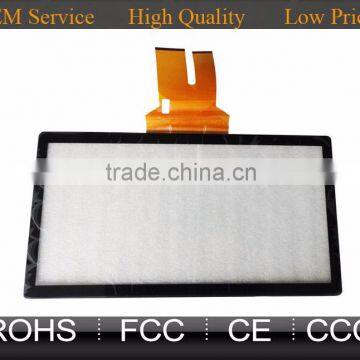

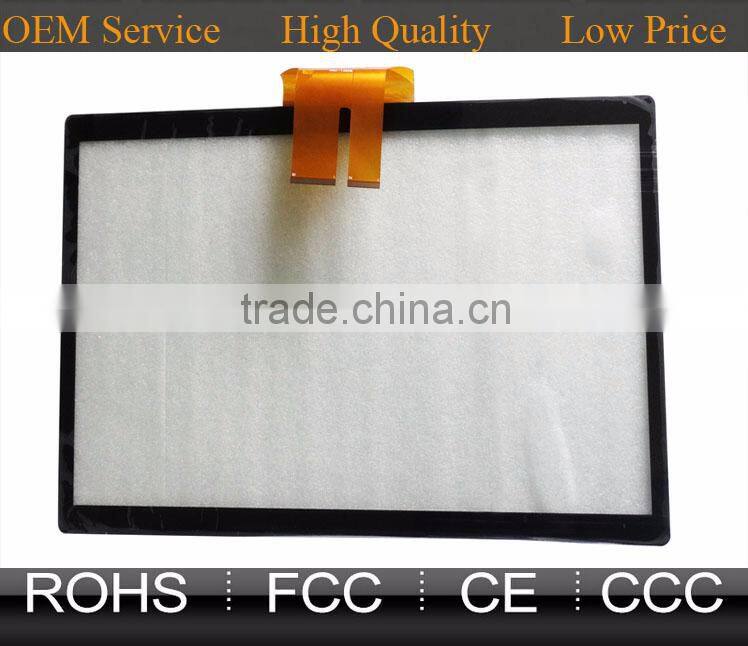

Product Picture
-IR Touch Screen/IR touch frame 15"~500" with 2 ,6 ,10, 16, 32 touches can be choose
-Capacitive Touch Foil,Interactive Touch Foil 17"~110" with 2,6,10,20 touches can be choose.
-4 wire 5 wire Resistive touch screen,resistive touch film 7"~22" Single Touch

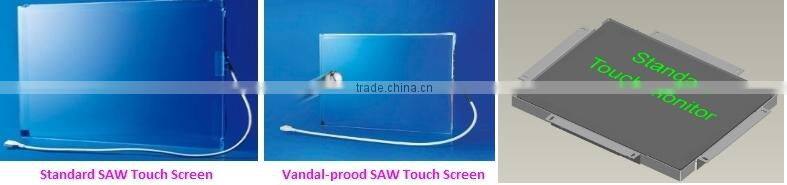

-SAW touch screen/panel 7"~ 42" Single Touch
-Projected Capacitive Multi touch screen (PCTP) 10..4"~42" 10 touches
-OEM Touch monitor/open frame touch screen monitoe assembly service.

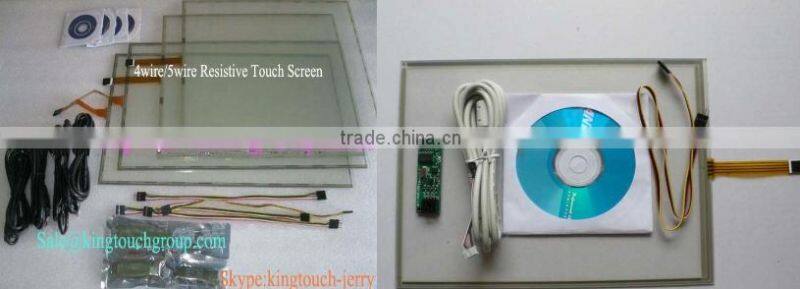

4.4 wire 5 wire Resistive touch screen / panel(welcome to your inquiry)
