2 Points 4 Points 6 Points 10 Points 16 Touch Points 32 Touch Points 110 Inch IR Touch Screen,good Multitouch Screen Touch Frame

Infrared Touch Screen Working Principal

IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board whichcontains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sidesto create a grid of invisible infrared light. The bezel shields the parts fromthe operation.

What is "Multitouch"?

Multi-touch is a method of input on a touchscreen that allows two or more fingers to be used on the screen at one time.KingTouch's MultiTouch Frame is famous for
introducing multi-touch to the game machine,KIOSK interactive display,Adverstising Display in the world by using it to allow pinching and stretching gestures on the screen to
control zooming. Multi-touch is something typically associated with the newest Infrared touchscreen technology.

KingTouch'Infrared Multi Touch Screen

Features:
• Supports multi-touch (2,6,10,16,32,40 fingers gesture supported)
• Extremely low-cost
• Communication port: USB 2.0 full speed
• Accurate and reliable
• No ghost point
• Drift-free
• Flexible, full mouse functionality with the touch of your finger or any object
• Landscape or portrait orientation
• Compatible with Windows7, Windows8, Vista, XP, Linux, Android
• Certification of FCC, CE, RoHS, IP65 approved

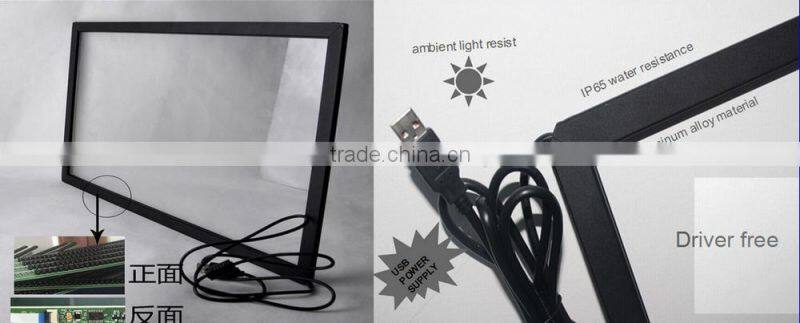

Picture of Infrared Touch Screen,Infrared Touch Frame(Plug And Play Easy Install)

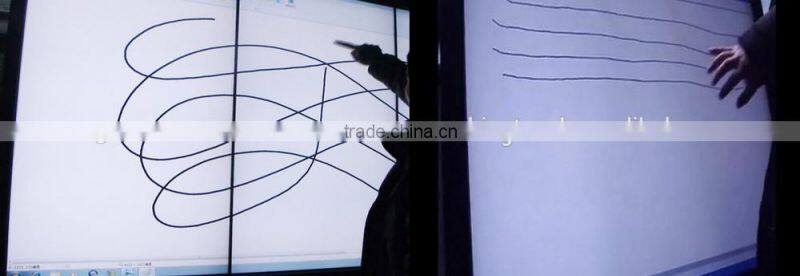

Smooth Touch,No Gost Point,Accurate Position

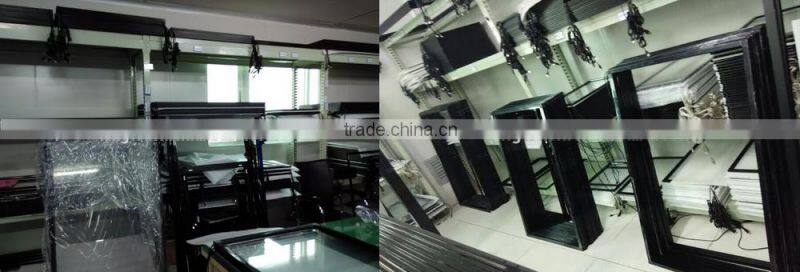

 WorkShop

Applications

• Large Size Information Kiosks
• Gaming Machine, Lottery , POS, ATM and Museum Library,
• Government projects and 4S Shop
• Electronic catalogs
• Computer-based traning
• Eductioin and Hospital Healthcare
• Digital Signage Advertisement
• Industrial Control System
• AV Equip & Rental business
• Simulation Application
• 3D Visualisation /360 Deg Walkthrough
• Interactive touch table
• Large Corporates

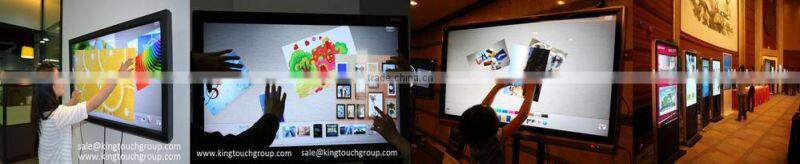

1. Digital Signage Advertisement,Government Projects

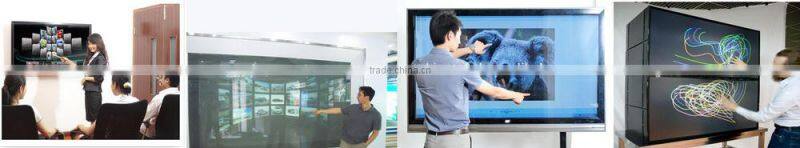

2.Education And Hospital Healthcare

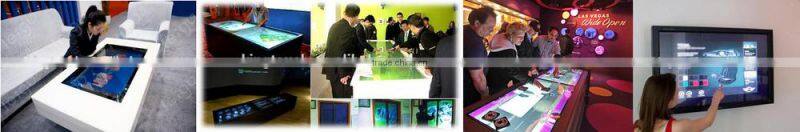

3. Touch Table And Information Service

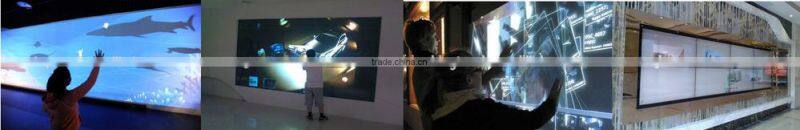

 4. For Video Wall,Interactive Touch Wall

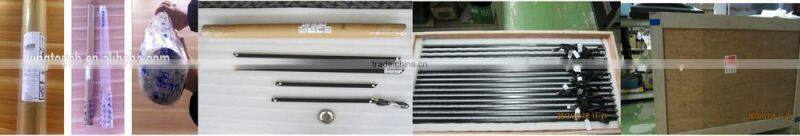

 Package

Portable condole to gently put forward from the top of frame components. (Product components including touch frame, screws, 3M glue)

About KingTouch Technology Group Limited

KingTouch Technology Group Limited (Who including Xiamen KingTouch Technology Co., Ltd) founded in 2003 and located in Shenzhen, China is a touch technology-leading Group company which focus on developing, manufacturing touch products and touch solutions of human machine user interface, Such as: infrared(IR) Single-touch, Dual-touch and Multi touch Overlay, 4 Wire and 5 Wire Resistive touch screen,Surface Acoustic Wave (SAW) touch screen, Interactive touch foil film through glass, Projected and Surface Capacitive touch screen, Optical touch screen, Touch LCD Monitor, Touch Kiosk, and Multi-touch LCD Monitor and Advertisement POS, Etc. So KingTouchGroup’s touch products had been widely used in Office Computor, Industrial equipment, Game Machine, Kiosk, POS, Automotive system, Medical equipments, Handheld GPS, Tablet PC, 4S Shop, Bus station, Metro, Digital signage AD, Hotels, Museums Library and Entertainment KTV, Etc.

1.Transparent Capacitive Touch Foil 2,6,10,20,40 touch points can be choose



2.Infrared Touch frame 2,6,10,16 32 40  touch points can be choose



3.SAW Touch Scree(welcome to your inquiry)



4.4 wire 5 wire Resistive touch screen / panel(welcome to your inquiry)





Specification:   Multi-touch Screen Size: General Size 15 inch to 500 inch Fit in with Panel display device Performance: Touch Mode Single-touch,Dual-touch, Multi-touch, drag, draw-line, rotate, zoom in/out Resolution(Interpolation) 4096*4096   32767*32767 Linearity Error <1.5mm Response Speed <15ms Mechanical: Input Method Finger or gloved hand (rubber ,cloth or leather) Touch Times Unlimited Touch Activation Force No minimum touch activation force is required Minimum Touch Object 2.5 mm X 2.5 mm Vandal-proof No break by 1-pound steel ball dropping from 130 cm high Surface Durability Surface durability is that of glass, Mohs' hardness rating of 7 Optical: Glass: Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional Light Transmission 92% Gloss Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units Environmental: Temperature Operating Range: -20°C ~ 70°C; Storage Range: -40°C ~ 85°C Relative Humidity Operating Range: 0%~90% RH (no dew falls) Storage Range: 0% to 95% RH (no dew falls) Altitude Up to 3,000m Ambient Light Direct sunlight 90°to ±30° to the display surface Touch detection operational Direct sunlight all angles to display surface Free of false touch reports Electrical: Operation Voltage Typical +DC 5V, +4.75V to +5.25V Power Supply Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms Size above 52”(52” not included): external AC-DC power adaptor Interface Full Duplex USB 2.0 (Full Speed) Plug and play compatible Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity Current Typical 150MA@+5VDC; 350mA, maximum Power <1.5W, operating current<300mA Electrostatic Protection 15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4) Controller Integration inside touch panel Agency Approvals CE, FCC, Rohs Operating System: Operation System :          WindowsXP Windows 7 windows8 Android Linux
