2016 Hot sale 42 Inch Interactive Touch screen Foil /capacitive Multi-Touch foil Film/interactive window screen touch foil

                               KingTouch's Capacitive Touch Foil,Interactive Touch Foil/Film

                             (Capacitive Touch Foil 2,4,6,10,20,40,100 touch points can be choose)

1.Standard Type Dual touch foil work through 1mm to 20mm glass

(2 touch points)

2.4096 Type Multi Touch Foil Work through 1mm to 15mm glass  more sensors and performs better in accuracy,response,anti-interference(10 touch points or 20 touch points)

3.8192type  Work through 1mm to 15mm glass  more sensors and performs better in accuracy,response,anti-interference  (super-high accuracy)( 40 touch points or 100 touch points)

How To Use The Touch Foil

 MOQ 1 PCS

Which Tail location Do you want? Side model or Base model take 42inch 4096 tpye as example as follow:

KingTouch's Multi Touch Foil Features

• No mechanical wear as you are not touching the touch screen unit only the substrate it is working through.
• Lightweight foil easy to apply to a range of materials glass acrylic wood etc.
• Easy to ship rolls up in a tube
• Can be made quickly in custom sizes
• Simple setup calibration, sensitivity etc
• Works with LCD and rear and front projection
• Works with gloved hands
• Vandal proof and weather proof applications

Art and Sci­Fi
High transparency ≥95%, glass­level transparency
No bezel of touch area
Thin and light, the sensor thickness only 0.17mm
Thru­glass touch, the maximum thickness of glass can reach 20mm.
Only hands valid, no touch action of metal, plastic, and so on.

Excellent experience
Zero pressure touch, even with glove.
Mouse function with Zoom in/out and rotation.
2,4,10,20,40 uo to 100 touch points Multi­touch, Support TUIO & Win Native
Precise touch & real­time response

What sizes are available?
The foil comes in standard 4:3 format from 15" to 80" and 16:9 format from 17" to 200" Special custom sizes are also available.

How is it fixed?
The touch screen can be fixed using either a permanent or non-permanent adhesive system. The system used is dependant on the application.

The  non-permanent system is designed to be for used on , it is an ideal system for retail applications where you may wish to remove and recover the touch foil for future promotions.

Our permanent system uses an optically clear system ideal for applying to glass and other non-metallic substrates. Best used where a permanent fixing is required and when the touch screen is being used in a range of more rugged environments.Both systems use a wet lamination process. Laminating instructions are available

Applications

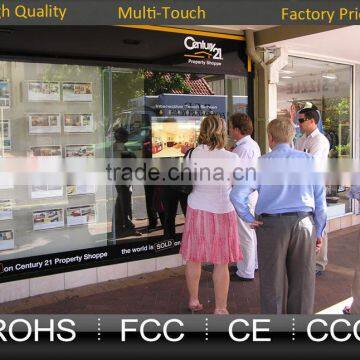

1. Shop/Store window displays
2. Indoor and outdoor kiosks
3. Glass partitions
4. Corporate offices
5. Training and meeting rooms
6. Exhibitions and conferences
7. Museums and visitor attractions

 Interacti Touch Foil Specification

Product Show

Capacitive MultiTouch Foil And Conteroller&USB Cable

WorkShop

 Capacitive Multi-Touch Foil Use for Interactive Touch Wall and Touch Table
