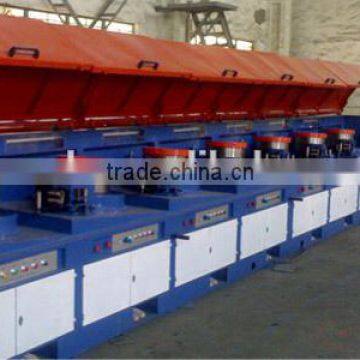

LZ9/700 Steel Wire Drawing Machine(Cable Making machine)

Specifications

Max inlet dia:16mm.Min outlet dia:0.5mm
Capstan dia:250~1200mm
Speed:300-1200m/min
AC frequency motor, inverter adjust speed

Welcome To Contact Me!~~

Contacting ways:

Helen  Zou: mobile  13921534531

  Straight Line Wire Drawing Machine/ Drawing Machine Factory

---------------------------------------------------------------------------

1. Feature of the drawing machine

    The straight line drawing machine applies advanced international technology,with digestion and absorption, the drawing machine id applicable for high intesity and performance demand. It mainly applied for the production of steel curtain wire,tyre steel wire ,steel wire for rope,spring steel wire ,stainless steel wire etc. The capston diameter of the straight line drawing machine series products is Φ350- Φ1200mm with maxium inlet diameter of Φ14mm and minimum outlet diameter of 0.7mm.

    The equipment of the straight line drawing machine contains the function of  human-machine dialogue,over tempertureprotaction for the moter,alarm for abnormal water pressure,fault display,ect. the capston appled the combination of the narrow water cooling and air cooling with good cooling effect. Generally it is an kind of efficient and advanced drawing wquipment with easy operation,high degree of automation and aboard process scope.

1. Drawing blocks: All drawing blocks are made of steel with hardened surface, capstan diameter isφ350mm-φ1200mm. The material is ZG45 steel, surface is build-up welded, the surface is brightness, smooth, wear-resistant surfacing height of 150mm, long service life; hub height of 150-200mm.

2. Protection cover: Full closed as the following picture, and equipped with the lighting system.

 3. Die box is welded structure, into two cavity. The guide roller is mounted into the side to ensure that steel wire can straight into the drawing die, die holder should be adjusted to wire tangent to enter the drawing rolls tuning roller installed at the entry end of the mold base tuning roll by a small cylinder put power, tuning the swing of the roller, so that the corresponding sensor output signal to fine-tune the speed of change. Tuning roller wire tension by adjusting the air pressure change, regulation range 0.15-0.6Mpa. The mold box is also equipped with a stirring device. Tuning roller side of the mold box, a gear reducer single-phase capacitance running motor through a sprocket, power passed to the stirring arm to stir the mold box, lubrication powder, without agglomeration affect lubrication.

5. Electrical cabinet: spray-paint surface.

1. Water proof or wooden box packaging

2. FCL

1. We are always providing customers with not only the excellent solutions of steel wire production line, best related equipment and perfect services but also free technical services on the steel wire production line.

2. If you have any questions in the process of producing steel wire, or about steel wire production line, please feel free to contact us any time. Our solutions and quotation will be sent to you soon to meet you special requirements.

3. Welcome to visit our factory and Wire drawing production lines.

1.We are one of the leading wire drawing machine manufacturers with more than 15  years experiences with a high reputation.

2.We have gotten CE and ISO9001:2008 standard and certificate.

3.Company location: Wuxi city, 125km away from Shanghai. Welcome to visit us, we will pick you up from Shanghai.

4.Number of employees: 50-100

5.We have a professional technical team, a good after-sale service team, an excellent production management team.

6.We can design and produce various wire drawing machines, auxiliary equipment according to customers’ special requirements.

Successful experience / Markets

 Be up to the international level. Our lines and related complete equipment have been exported to Southeast Asia, West Asia, Eastern Europe, South America, the Middle East, Russia, India, Indonesia, Morocco, South Africa, Algeria, etc.
