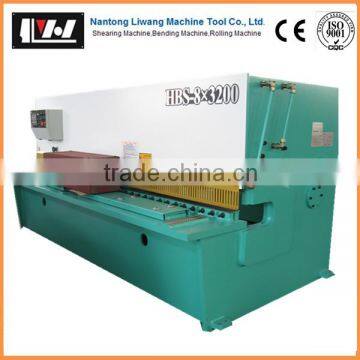

High precision cnc guillotine sheet metal cutting machine
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | liwanng | Model Number | QC12Y-6x3200 | |
| Voltage | 380/220/415 | Rated Power | 7.5KW | |
| Dimension(L*W*H) | 3800X1700X1650MM | Weight | 6400KGS | |
| Certification | CE ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
cnc guillotine sheet metal cutting machine
Standard control system:E21, other control system optional
Features
| 1.This machine is of welded steel structure, hydraulic driving.The return stroke is completed by nitrogen return cylinder . |
| 2.The machine is of good steadiness and safety while in use . |
| 3. The blade clearance can be adjusted quickly and simply . |
| 4. The back gauge adopts mechanical driving and equipped with counter display |
| 5. The front gauge is counted with scale and positioned by block |
| 6. The stroke of upper blade beam can be adjusted freely, which improves the efficiency when cutting narrow plates. |
| 7. The machine is equipped with reliable protection barrier to ensure safety. |
E21S CONTROLLER |
Backgauge control |
Control for AC motors,frequency inverter |
Intelligent positioning |
Double programmable digital output |
Stock counter |
Program memory of up to 40 programs,upto 25 programs per program |
One side positioning |
Retract function |
One key backup/restore of parameters |
mm/inch |
Chinese/English |
Main parameter
Model | Max. Shearing thickness (mm) | Max. Shearing width (mm) | Distance between uprights (mm) | Strokes (n/min) | Back gauge Stroke (mm) | Throat depth (mm) | Main power (kw) | Length (mm) | Width (mm) | Height (mm) | Weight (mm) |
QC12Y-6X4000 | 6 | 4000 | 4220 | 10 | 20-600 | 150 | 7.5 | 4650 | 1850 | 1750 | 8000 |
QC12Y-6X6000 | 6 | 6000 | 6230 | 6 | 20-600 | 150 | 11 | 6650 | 2200 | 1950 | 17000 |
QC12Y-8X2500 | 8 | 2500 | 2720 | 14 | 20-600 | 150 | 11 | 3100 | 1750 | 1700 | 6800 |
QC12Y-8X3200 | 8 | 3200 | 3440 | 10 | 20-600 | 150 | 11 | 3800 | 1850 | 1750 | 7500 |
QC12Y-8X4000 | 8 | 4000 | 4230 | 8 | 20-600 | 150 | 11 | 4600 | 1900 | 1800 | 8500 |
QC12Y-8X6000 | 8 | 6000 | 6230 | 6 | 20-600 | 150 | 11 | 6700 | 2350 | 2050 | 19000 |
QC12Y-10X2500 | 10 | 2500 | 2720 | 10 | 20-600 | 150 | 11 | 3100 | 1750 | 1700 | 7500 |
QC12Y-10X3200 | 10 | 3200 | 3440 | 10 | 20-600 | 150 | 11 | 3800 | 1850 | 1750 | 8000 |
other type optionaly
working material
