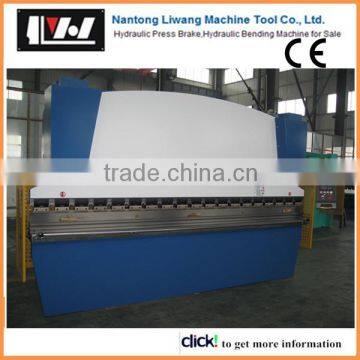

used sheet metal bending machine with high precision

FOB Price

US$ 5,000 - 20,000 / Set

1 Set(Min. Order)

Port Shanghai China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	LIWANG	Model Number	WC67k
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Stainless Steel	Power	Hydraulic
Automation	Automatic	Extra Services	Machining
Certification	Other, ISO 9001-2008	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

used sheet metal bending machine

1.The application of used sheet metal bending machine

The folded sheet metal bending machine has high productivity and high working accuracy, using different shapes of up and down mould, can be bent into various shapes artifacts, slider stroke at a time can be to a bending forming of sheet metal, after a lot of bending can be achieved relatively complex shape workpiece, when equipped with the corresponding equipment, can also make a punch

2.Main technical parameter

Hydraulic press brake wc67 series
Specification	Pressure KN	Worktable length mm	Distance between uprights mm	Throat Depth mm	Stroke mm	Opening height mm	Main motor KW	Weight KG
WC67K-40/2000	400	2500	1550	250	120	325	4	2600
WC67K-40/2500	400	2500	2050	250	120	325	4	3000
WC67K-63/2500	630	2500	2050	250	120	330	5.5	4200
WC67K-63/3200	630	3200	2600	250	120	330	5.5	5100
WC67K-80/2500	800	2500	2050	320	120	370	7.5	5800
WC67K-80/3200	800	3200	2600	320	120	370	7.5	6100
WC67K-100/2500	1000	2500	2050	320	120	380	7.5	6000
WC67K-100/3200	1000	3200	2600	320	120	380	7.5	6600
WC67K-100/4000	1000	4000	3200	320	120	380	7.5	8100
WC67K-125/3200	1250	3200	2600	320	120	380	7.5	7000
WC67K-125/4000	1250	4000	3200	320	120	380	7.5	8500
WC67K-160/3200	1600	3200	2600	320	180	450	11	9500
WC67K-160/4000	1600	4000	3200	320	180	450	11	11200
WC67K-200/3200	2000	3200	2600	320	200	470	15	12700
WC67K-200/4000	2000	4000	3200	320	200	470	15	15300
WC67K-250/3200	2500	3200	2600	400	250	530	18.5	15700
WC67K-250/4000	2500	4000	3200	400	250	530	18.5	18500
WC67K-300/3200	3000	3200	2600	400	250	560	22	19400
WC67K-300/4000	3000	4000	3200	400	250	560	22	21700
WC67K-300/6000	3000	6000	4700	400	250	560	22	29600
WC67K-400/4000	4000	4000	3200	400	300	640	30	30000
WC67K-400/6000	4000	6000	4700	400	300	640	30	34500
WC67K-500/4000	5000	4000	3200	500	300	640	37	31800
WC67K-500/6000	5000	6000	4700	500	300	640	37	43200
WC67K-600/6000	6000	6000	4700	500	300	650	45	53500

3.Features

1).Holistic welding structure

2).ESTUN E200 special CNC system for press brake(double axes) is optional

3).the drive element of backgauge adopts importing ball screw and linear guideway

4)CNC system DA52,DA56,DA66WE,DA41,E210 is optional

...
