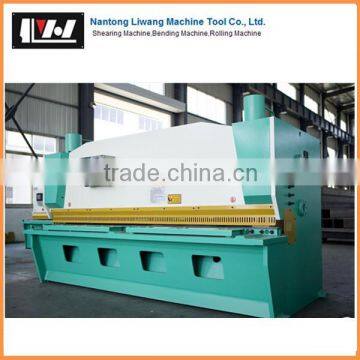

High efficiency hydraulic steel cutting machine

1,Features of the machine

1.Holistic welding structure

2.Adopt interacted hydraulic transmission system

3.Triple support lead rail to eliminate the gaps , it enhance the shearing quality.

4.The accumulator’s return is stable and fast.

5.Rectangular blades with four cutting edges to prolong working life.

6.Blades clearance adjusted by hand wheel , it’s quick, accurate and convenient.

7. Adjusting shearing angle to reduce the deformation of the sheet

8.Upper blade holder with inward struture

5.Pneumatic back support is optional

2,control system

1.the control system is ESTUN E21, the cutting times is displayed on the screen

2. Front support and back support for free, pneumatic back support is optional

3.The cut stroke and cut times can be controlled by the system

4.the program memory of up to 40 programs, up to 25 steps per program

5.Chinese/English

3.Customized machine

1.we have standard type machine for optional

2.If you have special requirement of the throat depth, back gauge, cutting length, can be made according to your needs.

3. the standard control system is E21, we also have E10, DA310,DA360 and PLC control system

4. for thin metal plate, we have pneumatic back support for optional

Specification

Max.

shearing thickness

Max. shearing width

Shearing angle

Ram strokes

Back gauge range

Motor power

mm

mm

°

n/min

mm

kw

QC11Y-6x2500

6

2500

1°30

17

20-600

7.5

QC11Y-6x3200

6

3200

1°30

14

20-600

7.5

QC11Y-6x4000

6

4000

1°30

10

20-600

7.5

QC11Y-8x2500

8

2500

1°30

14

20-600

11

QC11Y-8x3200

8

3200

2°

10

20-600

11

QC11Y-8x4000

8

4000

2°

8

20-600

11

QC11Y-10x2500

10

2500

1°30

10

20-600

11

QC11Y-10x3200

10

3200

2°

10

20-600

11

QC11Y-10x4000

10

4000

2°

12

20-600

11

QC11Y-12x2500

12

2500

2°

10

20-800

15

QC11Y-12x3200

12

3200

2°

10

20-800

22

QC11Y-25x3200

25

3200

3°

5

20-800

37
