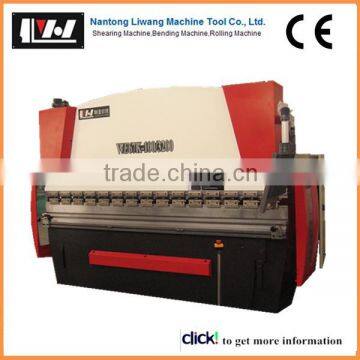

cnc bending machine with DA41

European Delem DA-52S controller offers multilanguage selection. It's easy operation by directly inputting angles or sizes of axes while programming. According to different request, controlled axes vary from 2 to 5 axes.

1. 6.4" color LCD display. (TFT)
2. 266 MHz processor, memory capacity 64MB.
3. Tooling database: punches for 30 sets, dies for 30 sets.
4. Standard Windows functions. User specific applications support.
5. USB keyboard, mouse and flash memory drive.
6. Precision ball screw lead, linear slide way and AC servo motor for X axis.
7. Bearing-type guideway system.
8. Angle position controlled by AC servo motor. (for 2 or 3 axes)
9. German HOERBIGER hydraulic circuit. (for 4 axes and above)
10. Equipped with European optical scales. (for 4 axes and above)

1. Alphanumeric product naming.
2. Millimetres/Inches, KN/Ton and languages selection.
3. Number of steps up to 25. Step repeat up to 99 (maximum).
4. Programmable tooling, products and material properties.
5. Computed functions include tooling safety zones, press force, crowning adjustment, speed-change point and etc. (Differ from various axes.)
6. Store tooling & workpiece data via USB interface.
7. There are two modes: angle-input mode, depthinput mode.
8. Diagnostic program Both sides angles can be adjusted independently. (for 4 axes and above)

Detail pictures

certificate;

How to get a accurate quotation from us ?

1,tell us metal thickness.

2,tell us metal widthness.

How to repair&maintain our machine ?

Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.

we can solve it through email and video.

what policy for broken parts?

within one year,we offer free parts.

if beyond one year,you need to buy by factory cost.
