different shape pipe making machine
- Guangzhou
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Other, pipe making machine | |
| Pipe Material | Stainless Steel | Application | Drain Pipe | |
| Production Capacity | 0.5~2m/min | Place of Origin | Hunan, China | |
| Brand Name | Sanke | Model Number | ZG100A | |
| Voltage | 380V | Power(W) | 45KW | |
| Dimension(L*W*H) | 16x2.8x2.4m | Weight | 16 Tons | |
| Certification | CE ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specification:
1.High production stainless steel pipe making machine
2.Good quality,high efficiency,long service life,excellent performance and stability.
Application of High production steel pipe making machine
The High production steel pipe making machine is manufacturing stainless steel pipes/tubes widely applied in furniture, windows,construction, decorative, domestic applications, mechanical structure,bicycle, chair, desk....Etc.
The main technical parameters:
| Model Indicator Item | ZG100A |
| Main Motor Power(kw) | 45 |
| The range of the pipe(mm) | φ143~ φ273 |
| The thickness of the pipe(mm) | 2.5~6.5 |
| The speed of the welding(m/min) | 0.5~2 |
| The horizontal axis diameter(mm) | φ100 |
| Vertical axis diameter(mm) | φ60 |
| Size of Host Machine (length x width x height) | 16x2.8x2.4 m |
| Welder | TIG Welder for steel strip within 2mm thickness; Plasma welding and TIG welding machine above 2mm |
| The accuracy of pipe | According to GB/T12771-2000 or up to customers' requirements |
Structures of High production steel pipe making machine
Single side/double side uncoiler
3-stage roller tube making machine
Forming section/Welding section/Sizing section/Cooling section/
Weld bead grinder/Auto-cut off/Run out table
Electric control system
TIG welding machine + cooling equipment
Unloading shelf
Rolls made of Cr12Mov
The production process of High production steel pipe making machine
unwinding→the oriented feedstock→cleaning for the steel belt→
the steel belt molding→welding→polishing the welding line→making round→straightening→cut off the certain size →unloading
. It can be done at one time.
The advantages of High production steel pipe making machine
1. Our this High production steel pipe making machine are manufactured from finest materials. Steady, durable and long lifetime.
2. Cost effective, high return of investment.
3. Automatic control, safe and easy to operate.
4. Easy to replace the molds, save working hour and increase efficiency.
5. Low noise.
6. The machine and make different type of stainless steel pipe/tube which are round, square, rectangle type of pipe/tube

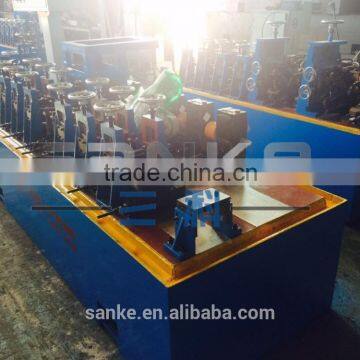

The pictures of High production steel pipe making machine
Packaging&Shipping
The machine mechanical parts are nude packing,and our warehouse workers will use iron wire to fasten the machine parts in the container,machine motors & electrical parts are well wrapped by plastic and well protected.
After-sales Service
1.Send engineers to make the foundation and install the machine until it works out qualified pipes.
2.Provide skilled master to guide your workers to operate the machine,even work at your site if needed.
3.Provide the technical documents about machinery installation,maintenance,operation and so on.
4.Any problem during production process contact us directly.We will solve it as soon as possible.
Company Information
we have special technology on High production steel pipe making machine with more than 20 years design and reserch experience.
FAQ
Q:What is your company product?
A:Our company is special on High production steel pipe making machine ,polishing machine, embossing machine,etc.
Q:How to trust your company?
A:Because we are professional and enjoyed a good reputation both at home and abroad.
Q:How to guarantee your quality?
A:We have a strict quality management systerm to check every order carefully.
Q:How can i get more details about products?
A:We will offer you best price referring to your detail request,so please kindly inform us of the material, thickness,size (length,width) color and other requirments you prefer,special offer will be given.If you need any information,we can give you our suggestions.
Contact Information:
Contact person:Bill
Cellphone:+86-735-2175680
Fax:+86-735-2175650
Skype:Chenzhou sanke
Whatsapp:+86-13824323646
