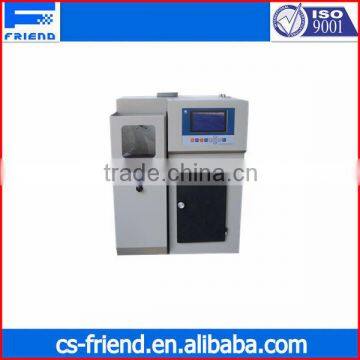

Vacuum Distillation Range Determination for Petroleum Products with High Boiling Point Range

Specifications

Application range

Vacuum Distillation Range Determination  applies GB/T7534-2004 standard provisions of industrial Determination of volatile organic liquid boiling range.

Industrial volatile organic liquid, High purity, single component samples, reagents, and other petroleum products its distillate Cheng process Measuring range is very small, and bring to The detection process and the detection accuracy is extremely difficult and demands.

Features

1, large-screen LCD

2, English operating system platforms, multiple operating modes available for customer programming using

3 The United States The XEC infrared graduated cylinder reading system, High resolution, High literacy scale accuracy, good stability

4, Use the key to set the calibration system, user-friendly design, completely solve The traditional equipment tracking complex calibration operation

5, HP Precision tracking systems, rail wear, excellent drive, tracking amplitude can be controlled 0.1ml

6, The instrument can be upgraded to the computer using computer control (generally The LCD screen, unable to upgrade computer), The distillation process automatically optimizes The dynamic display of The relevant parameters, heated power to achieve

7,New method file and call The function, sufficient storage space to save test record cold bath and graduated cylinder bath temperature control using intelligent measurement and control system, each group test conditions required to automatically determine The end conditions and can print a report issued by The test results,

8, The software set anti-overshoot, which can effectively prevent The gas bumping

Specifications

1, Environment: Temperature 0 ~ 60 °CRelative humidity:  80%

2, Display: LCD display.

3, Distilling rate: 4 ~ 5mL/min

4, The cold bath constant Measuring range: -10 to +70 ° C

5, Measuring range: room temperature ~~ +350 ° C Resolution: 0.1 °C

6, Volumetric detection range: 0 to 100 mL of resolution 0.1mL

7, Temperature measurement devices: German imports probe

8, Power AC220V 50Hz Total power: 1.5kw
