vacuum distillation

Specifications

Specifications

1.Distillation Analyzer at reduced pressure
2.Digital temperature controller
3.High accuracy
4. GB/T9168

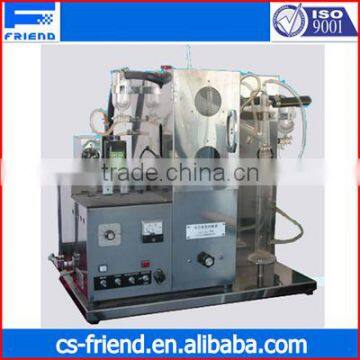

Product Model: FDR-0911

Test Method The sample is distilled at a controlled, reduced pressure under conditions which provide approximately one theoretical plate fractionation.

Scope

Features andBenefits

• Conforms to ASTM D1160 and ISO 6616 test specifications

Features

Vacuum Distillation System performs reduced pressure distillations of petroleum products in accordance with ASTM specifications. The instrument consists of two parts. Includes host apparatus andput into refrigeration apparatus. Host from The bath, The temperature control part, glassware, balance tank, The pressure regulation system, solenoid valves, electric heater, etc.. Its main features are as follows;

1, The main structure of the instrument is compact, attractive appearance, easy to operate, The bath and the end of Taiwan made of stainless steel, corrosion resistance.

2, Bath temperature temperature control through digital thermostat table temperature control, temperature control table can visually display the temperature of the circulating water, andcan accurately control the temperature.

3, Includes a vacuum pump, The pressure regulating system, solenoid valves, balance tank andother components of the pressure system

4, The flask was heated furnaces parallel structure, uniform heating, The furnace can be adjusted up anddown, andwith a fan to rapid cooling.

5, The cold trap invested refrigeration apparatus refrigeration, convenient, and reliable.

Technical parameters

1, Power: AC220V ± 10% 50Hz

2, Input power: Host 1900W input refrigeration instrument 300W

3, Water bath Measuring range: room temperature to 99.9 °C

4, Temperature control accuracy: ± 2 °C

5, The pressure adjustment range: AC10 ~ 220V
6, The pressure adjustment range: 1mmHg ~ 4mmHg
7, External dimensions: 720X420X680mm

Package:Plywood case

Delivery Time:15 working days
