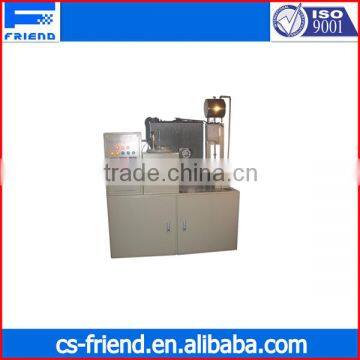

Brake fluid stroke simulation tester

Scope
      Brake fluid stroke simulation tester for assessing the performance of brake fluid and lubricating materials adapt performance test requirements specified in the conduct of a total of 85,000 times the stroke trials to observe the changes related materials

Features
1, a cast iron brake master pump, Bore: 28.58mm ~ 28.65mm, aluminum pistons, diameter: 28.52mm ~ 28.55mm;
Two, three brake wheel cylinders, bore: 28.60mm ~ 28.66mm, aluminum pistons, diameter: 28.52mm ~ 28.55mm;
3, a special pump to adjust the mounting plate;
4, the main use of uncoated steel pipe;
5, a standard set of drive mechanism, can produce 8 Mpa working pressure;
6, the digital display stroke rate, with adjustment device;
7, no radiation heating system;
8, rubber cup meet the standards;
9, the microcomputer temperature controller, digital display, temperature range: 20 ~ 150 ℃ ± 2 ℃, PT100 temperature sensor, high precision;
10, working pressure gauge shows, precision regulator valve to adjust the pressure: 7Mpa ± 0.3 Mpa;
11, digital timer, alarm Fengming;
12, fully enclosed refrigeration compressor, reduce cycle gas chamber temperature;
13, one structure, easy to operate;

Technical parameters
1. Applicable standards: ISO4925
2, the pressure range: 7Mpa ± 0.3 Mpa
3, the pressure control: precision regulator valve
4, the pressure display: precision pressure gauge
5, the stroke rate: 1000 / h
6 trips: 85000 times
7, the temperature range: 20 ~ 150 ℃ ± 2 ℃
8, temperature control: digital PID temperature controller
9, Refrigeration: Refrigeration Compressors
10. Timing mode: digital timer
11. Alarm: Alarm Fengming
