Home > Products > vegetation and slope protection material > soft pemeable flexible hose(steel-plastic)
soft pemeable flexible hose(steel-plastic)
- 150000 Meter / Meters per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Pretty Lion | |
| Model Number | soft pemeable flexible hose |
Product Description

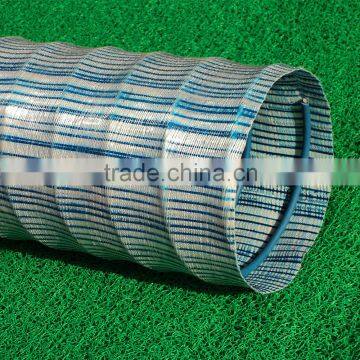

soft pemeable flexible hose
Hose Specification
Art. No. | PLD0101 | PLD0102 | PLD0103 | PLD0104 | PLD0105 | PLD0106 | PLD0107 | |
Item | φ50 | φ80 | φ100 | φ150 | φ200 | φ250 | φ300 | |
Wire diameter(mm) | ≥1.6 | ≥12.0 | ≥2.6 | ≥3.5 | ≥4.5 | ≥5.0 | ≥5.5 | |
Distance between wire (ring/m) | ≥47 | ≥37 | ≥32 | ≥24 | ≥17 | ≥17 | ≥17 | |
Filter cloth | MD Tensile Strength kN/5cm≥ | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
MD elongation % ≥ | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
CD tensile strength kN/5cm≥ | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
CO elongation % ≥ | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
Ball tensile strength kN ≥ | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | |
Filter coefficient m/s ≥ | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | |
Effective aperture mm ≥ | 0.06—0.25 | |||||||
Hose Pressure Resistance Index
Specs Item | φ50 | φ80 | φ100 | φ150 | φ200 | φ250 | φ300 | |
Flat rate | 1% N | ≥100 | ≥180 | ≥400 | ≥780 | ≥1000 | ≥1200 | ≥1400 |
2% N | ≥180 | ≥400 | ≥780 | ≥1000 | ≥1200 | ≥1400 | ≥1600 | |
3% N | ≥370 | ≥780 | ≥1200 | ≥1400 | ≥1700 | ≥1800 | ≥1900 | |
4% N | ≥660 | ≥1200 | ≥1500 | ≥1800 | ≥2100 | ≥2200 | ≥2400 | |
5% N | ≥1100 | ≥1500 | ≥1800 | ≥2000 | ≥2300 | ≥2600 | ≥3000 | |
Acid & Alkali Resistance | No unusual changes when being marinated 72 in 10% Hcl and 10% NaOH | |||||||
