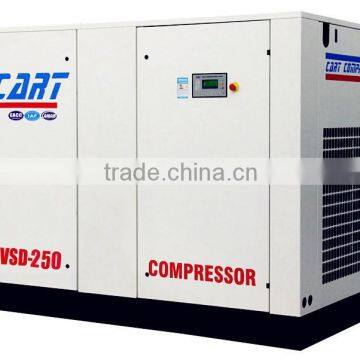

industrial air cooling and water cooling screw air compressor 185KW/250HP ( energy-saving )
- Shanghai
You May Like
-
280KW/375HP (7/8/10/13bar)screw air compressor
-
Medium pressure screw air compressor 315KW/400HP (direct driven & screw type) Chinese manufacturer
-
Air cooling/ water cooling screw air compressor 355KW/450HP medium pressure direct drive air compressor
-
air cooling/ water cooling screw air compressor 400KW/500HP 7/8 /10/13 bar direct driven air compressor
-
2015 year hot sale 1.3 Mpa 450KW/600HP direct driven screw air compressor
-
7bar screw air compressor 500KW/680HP (2015 new factory price)
Product Details
| Condition | New | Type | Screw | |
| Configuration | Stationary | Power Source | AC Power | |
| Lubrication Style | Lubricated | Mute | No | |
| Place of Origin | Anhui, China | Brand Name | CART | |
| Model Number | VSD-250A/W | Voltage | 380VC±10%/50HZ, other voltage can be customized | |
| Dimension(L*W*H) | 2700mm*1600mm*2000mm | Weight | 3700KG | |
| Certification | EACC IAF ANAB | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specification:(Direct driven)
Model | VSD-100A/W | VSD-125A/W | VSD-150A/W | VSD-175A/W | VSD-220A/W | VSD-250A/W |
Air flow/pressure (m3/min,/Mpa) | 13.6/0.7 13.3/0.8 11.6/1.0 9.8/1.3 | 16.3/0.7 16.0/0.8 14.6/1.0 12.3/1.3 | 21.5/0.7 20.6/0.8 17.8/1.0 15.5/1.3 | 24.0/0.7 23.0/0.8 20.5/1.0 17.5/1.3 | 28.5/0.7 27.0/0.8 25.0/1.0 22.0/1.3 | 32.5/0.7 31.2/0.8 28.0/1.0 25.5/1.3 |
Power(KW/HP) | 75/100 | 90/125 | 110/150 | 132/175 | 160/220 | 185/250 |
Noise dB(A) | 68±2 | 70±2 | 75±2 | 75±2 | 76±2 | 76±2 |
Outlet diameter | DN50 | DN50 | DN80 | DN80 | DN80 | DN80 |
Weight(kg) | 1950 | 2500 | 3130 | 3300 | 3500 | 3700 |
L*W*H(mm) | 2130*1300* 1680 | 2130*1300* 1680 | 2550*1540* 1950 | 2550*1540* 1950 | 2700*1600* 2000 | 2700*1600* 2000 |
Cool air flow (m3/h) | 20500 | 24000 | 27000 | 30000 | 32500 | 44000 |
Coolwater flow (T/h) | 6.8 | 8.0 | 10.0 | 12.0 | 16.0 | 18.0 |
Note:
1.Standard power supply: 380V ±10%/50HZ,460V/220V/6KV/10KV
other voltage type can be customized specifically.;
2.Start mode: variable frequency soft start
3.Appropriate Environmental temperature: -5°C-45°C
4.F.A.D capacity measured in accordance with ASMC PTC9 or ISO1217 (GB/T3853)
5. Transmission: direct drive
6. The type of discharge pressure below 1.7Mpa can be customized
7. Inlet water temperature for water cooling is under 35°c, water pressure 0.2Mpa-0.6Mpa; Inlet and outlet water temperature difference for minimum water flow is 24°c, for the maxium water flow is 8°c.
pls: As our product is constantly being updated, any changes in the parameters or appearance are to be finally explained by our company.
Detailed introduction of different parts
Comprehensive service
Pre-sales
The innovation design of cart air compressor not only save maintenance costs, but also ensure that a low system temperature and low compressed air temperature, make all parts achieve the best cooling effect and long life. Easy to open the door and save routine maintenance time. More air filter, oil filter, oil separator are designed to reduce downtime and maintenance costs.
Sales
In order to achieve more satisfactions of customer and establish long-term stable cooperative relations, we and our dealers provide professional service and technical training for everyone in time. So you do not worry.
1,Free compressed air system consulting, design, planning and any other services; help customers have reasonable, economic, reliable compressed air system.
2,Organize air system training, provide professional person operating machine.
After-sales
1,We have a national sales network to meet the customer’s need which to repair and maintenance service and spare parts.
2,We provide 24 hours service and actively cooperate with the production needs
3,We provide these services:Parts delivery, installation, debugging, ensure that users can obtain professional and perfect service.
4,In order to know more news about the running of machines and regular tracking service, we help the customer establish the whole running documents.
5,Our professional engineers and the engineers of authorized dealers provide professional, rapidly, efficient service.
Air system solutions
Cart not only provides air compressor equipment, but also provides air compressor refrigeration dryers, adsorption dryers, air compressor precision filter, gas tank and related equipment.
1 The most energy-efficient, reliable, optimized air system solution design and construction
2 Special industries and special environment of the air system solution design and construction
3 Compressor power , power system optimization solutions for the design and construction
4 A variety of the central intelligent control and special control solution design and construction
5 The energy recovery system based solutions design and construction
