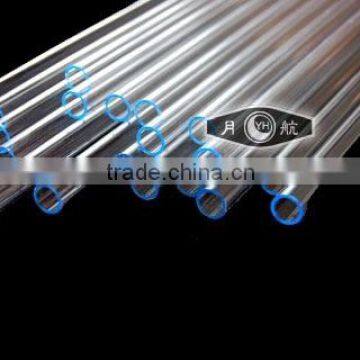

UV- Block Quartz Tube

FOB Price

USD $1 - $10 / Piece

500 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	YH
Model Number	YH-1-3	Type	Translucent Quartz Pipe
Color	Clear	Application	heating tube
Surface Treatment	Polished	Shape	Twin Tube
Outside Diameter	1--200	Ozone Content	Ozone Free

Product Description

Specifications

quartz glass tube is capable to stop all the radiation of UV-B and UV-C and a big proportion of UV-A with maximum visible light

UV Quartz glass tube

It is capable to stop all the radiation of UV-B and UV-C and a big proportion of UV-A with maximum visible lights, it therefore can effectively prevent the harm for people skin and objects that have to be under the explosion of UV radiation and set out the maximum visible light at the same time.

The OH contents: ≤50ppm, ≤10ppm, ≤5ppm, ≤1ppm

ApplicationIt can be served as the material of halogen lamps, high density discharge lamps and other UV lights and so forth.

1. Chemical composition unit: ppm

Cr	Ge	Fe	Mg	T i	Ca	Al	Na	Li	K
<0.5	<0.4	1.5	0.5	2.5	2.3	2.5	2.5	036	2.5

2. Physical Properties

Density 20 kg*m^-3(×10³)	2.2
Coefficient of expansion 25-300 ^-1(×10^-6)	0.58
Softening point	1620
Annealing point	1160
Strain point()	1060
Youngs modulus(Pa)	7.3×10⁵

Detailed technical specifications and dimensional tolerances

IDxOD(mm)	(mm)	IDxOD(mm)	(mm)	IDxOD(mm)	(mm)
6x8	1.00	16x18	1.00	25x27.5	1.25
7.8x10	1.10	18x20.5	1.25	30x33	1.50
8x10	1.00	19x25	3.00	32x35	1.50
9x11.8	1.40	20x22	1.00	38x44	3.00
10x12	1.00	20x23	1.50	40x43	1.50
12x14	1.00	22x25.3	1.65	50x54	2.00
13x15	1.00	23x26	1.50	60x64	2.00

Range of Out-Diameter	Wall Thickness/Out-Diameter %	Out-Diameter	Wall thickness	Deflection of Wall	Elliptcity	Angularity/1220mm
<5mm 5mm-113mm	>18% >18%	±2.50% ±2.00%	±10% ±10%	10% 10%	2.0% 1.5%	2.44mm 2.44mm
6mm-13mm 13mm-30mm 30mm-60mm	<18% <18% <18%	±1.25% ±1.50% ±1.50%	±8% ±8% ±10%	8% 8% 10%	1.5% 1.5% 1.5%	2.0mm 2.0mm 2.0mm
