flexible metal hose

FOB Price

USD $1 - $22 / Meter

1 Meter(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China		Brand Name	LANYU
Model Number	Customized

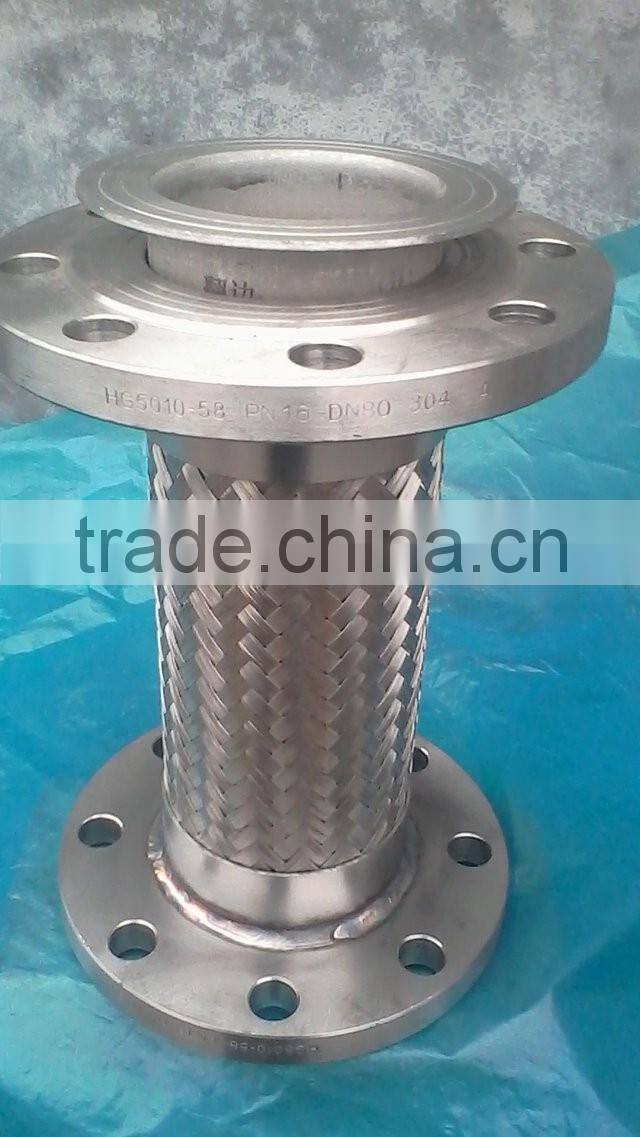

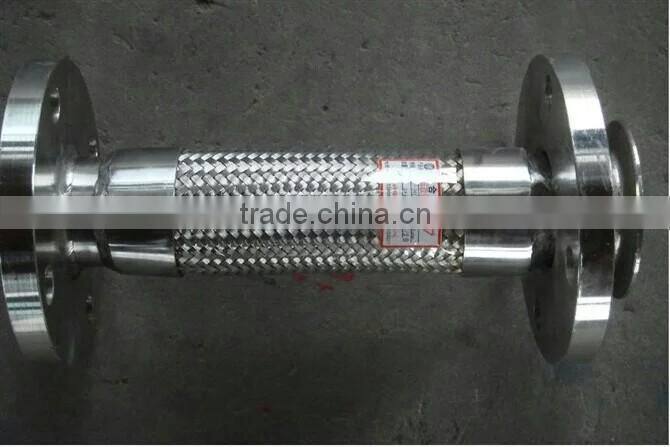

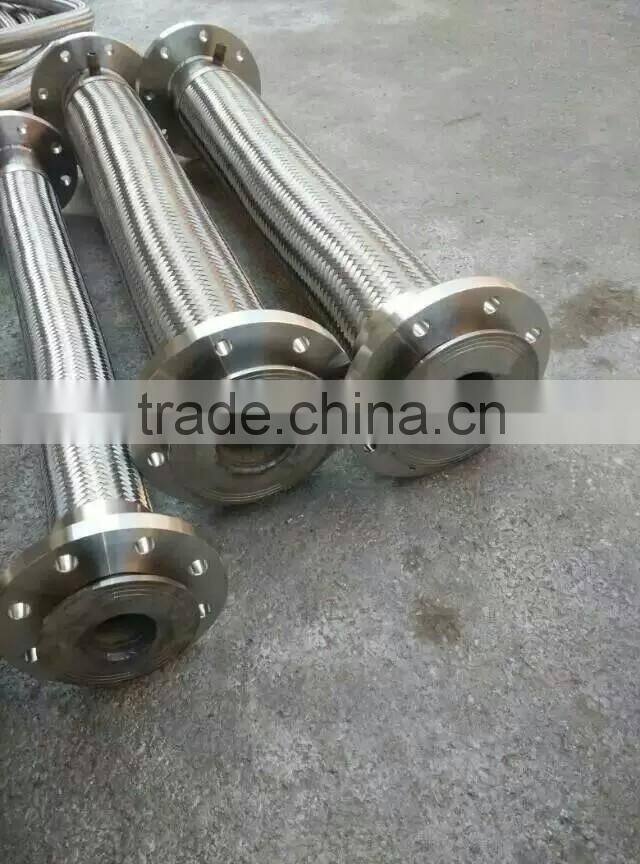

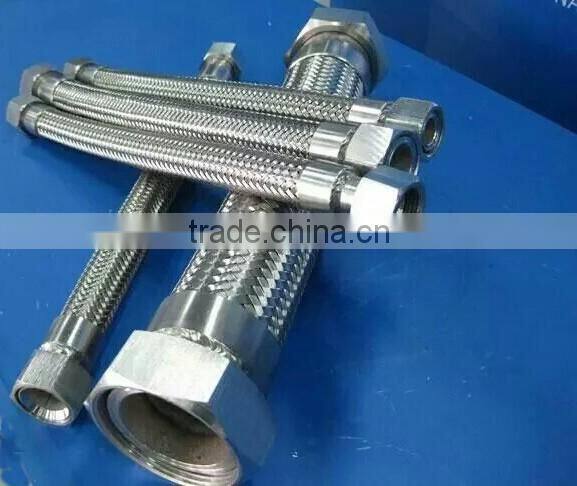

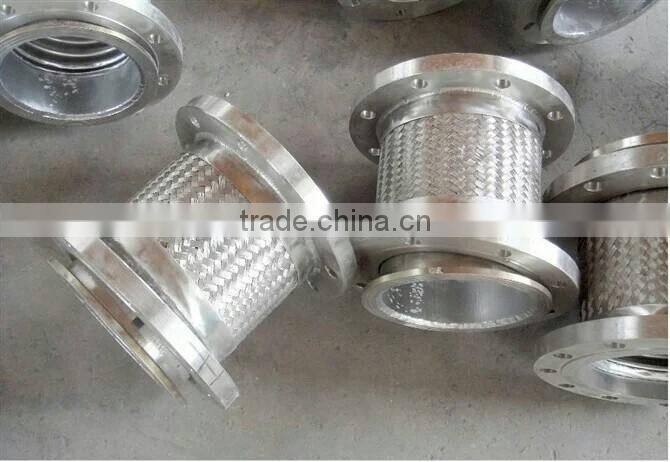

flexible metal hose

Product Description

Metal Hose Product Description:

1.Metal hose entirely using stainless steel materials,

has stronger corrosion resistant ability;
2.Hose body as hydraulic of the thin-wall stainless

steel tube, spinning forming, has stronger flexibility,

scalability, flexibility and seismic capacity, weaving nets

to strengthen protection, make its ability to higher of the pressure;
3.At both ends of hose, connected with the various of the interface,

convenient connecting and using;
4.These products not only suitable for rotary joints and its backup.

specification

Size			Without braid	With 1 braid	Pressure	Dynamic	Static	Weight
DN	mm	inch	mm	mm	bar	mm	mm	kg/m
6	6.1	1/4	9.6	10.6	100	100	25	140
10	10	3/8	14.3	15.4	90	150	40	190
12	12.2	1/2	16.7	17.8	80	200	50	210
16	16.2	5/8	21.6	22.8	70	200	50	410
20	20.3	3/4	26.8	28	64	200	70	480
25	25.4	1	32.2	33.7	50	200	90	650
32	34.3	1 1/4	41.1	43	40	250	110	760
40	40	1 1/2	49.8	52.5	30	250	130	1050
50	50.2	2	65	67.2	28	350	175	1440
65	65.4	2 1/2	80.8	83	24	410	200	1689
80	79.9	3	95	97	18	450	205	2084
100	100	4	116.7	119	16	560	230	3749
125	125	5	149	152.5	12	660	280	4930
150	150	6	174.9	177.5	10	815	320	5837
200	198	8	225	228	8	1015	435	8762
We also can design and produce according to your specs and requirements

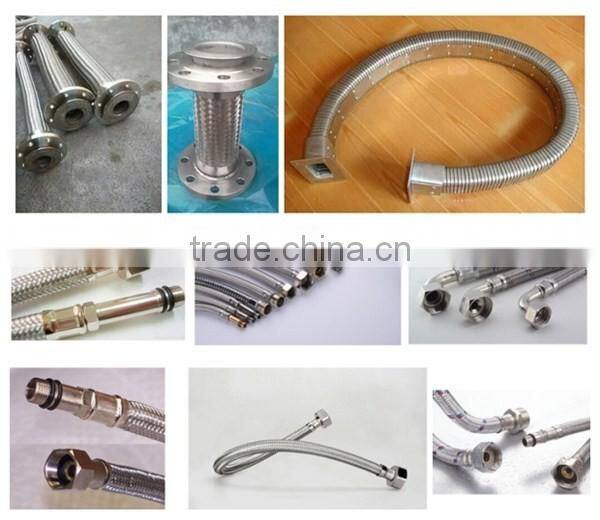

photos
