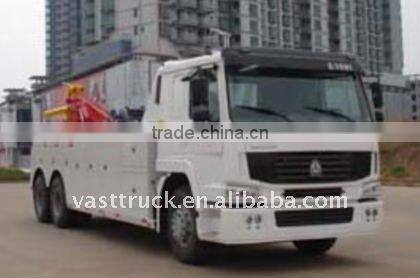

Howo Wrecker

Steyr 6*4 wrecker

Model

Steyr 6*4 wrecker

Dimension

9500*2500*3550,3600(mm)

Chassis type

 ZZ1256M4646C

Cargo body size

Total mass

25000  (kg)

Appearance / departure angle

15/14(°)

Rated payload

F/R suspension

1560/1990   (mm)

Kerb weight

19880 (kg)

Maximum speed

90(km/h)

Engine

WD615.92/WD615.93/WD615.92E/WD615.93E

Displacement

9726/9726/9726/9726(ml)

Power

196/213/196/213 (kw)

Manufacturer

China Heavy Duty Truck Group Co., Ltd. /

Emission standard

GB17691-2005,GB3847-2005

Number of the axles

3

Front tread

1939,1958 (mm)

Wheel base

 4325+1350,4600+1350(mm)

Rear tread

  1800,1830 (mm)

Number of the tires

10

Tire type

11.00-20,12.00-20

Fuel type

Diesel

Number of the springs

9/12,10/12

Axle load

4325+1350,4600+1350

Cab Passengers

 2

Notes

Lift Quality: 4990kg; with the chassis, optional high-roof cab Steyr Wang Overall height when the size of 3600mm.

My Wrecker production plants can be divided into separate prop hanging type, body care hanging together, flat back set type, platform type lift. Separate Hanging care and the care that the crane arm can be working alone, independently of each other; care body lift in conjunction with the care that the crane arm linked together; flat-type back contains hanging through traction or vehicle to give back on a plate containing transport; platform-type lift platform, moving through the lift pass or high-altitude operations. According to Wrecker's crane, corbel-specific functions, can be divided into Wrecker crane rotary type, slide-type crane to shore up arm folding (load) type and so on. Wrecker with assisted steering, mainly used in tunnels, bridges and other venues operating on limited occasions.
