Home > Products > Plastic Welding Tool > High-precision Aligning Welding Tool
High-precision Aligning Welding Tool
- China's major port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | Ritmo | |
| Model Number | Universal 160, UNIVERSAL ALINGER 63 | Type | Other, Aligner, pipe straight aligning |
Product Description

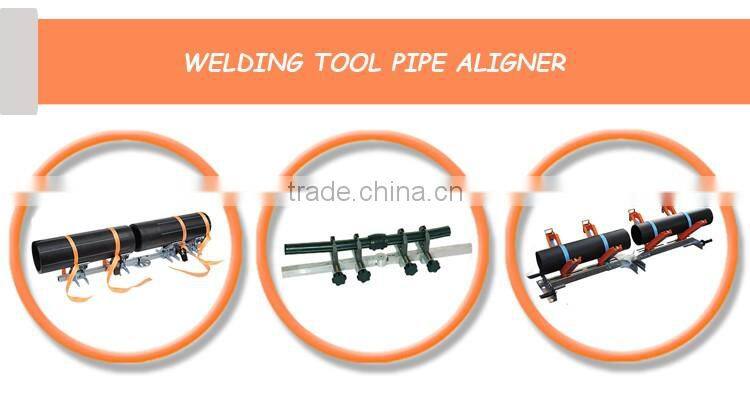

High-precision Aligning Welding Tool
This professional tool is essential to hold pipes still and aligned during electrofuion. The UNIVERSAL ALIGNER 160 LIGHT is made almost entirely in a special Aluminium alloy and features central joint for the fixed positions at 45° -90°, four self-centring clamps that require no adapters,and on request an additional axle complete with two clamps for welding the tees.Its special quick release clamps grants a rapid extraction of the pipe once it has been welded.
| Model | Working range | Dimension(mm) | Weight |
| Universal 63 | 20-63mm S5-SDR11 | 1)Aligner straight: 600*160*116mm 2)Transport bag: 440x190x140mm | Aligner:3.4Kg Transport bag:0.5Kg Standrad composition:3.9Kg |
| Universal160 Light | 63-160mm | Aligner straight: 980*430*260mm | Aligner without 3rd axle:9Kg Bag or wooden transport case: 1,5Kg or 14Kg |
| Aligner Eco 63-180 | 63-180mm | 2axes:915*140*130mm 3axes:915*575*130mm | 2axes: 7.5Kg 3axes: 10Kg |
| ALIGNER 125-500 | 125-500mm | 2axes:1815*610*410mm 3axes:1815*1230*410mm | 2axes: 38Kg 3axes: 52Kg |
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more
than 50 countries and area.
Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.
Thank you for your looking through.
