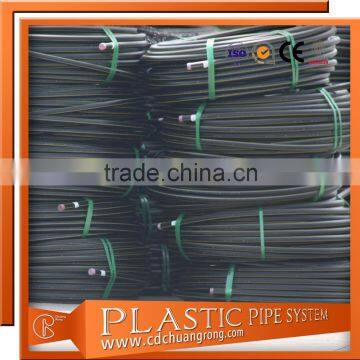

Small Diameter 20mm HDPE Roll Pipe

Small Diameter 20mm HDPE Roll Pipe

1.Raw material:PE100 or PE80

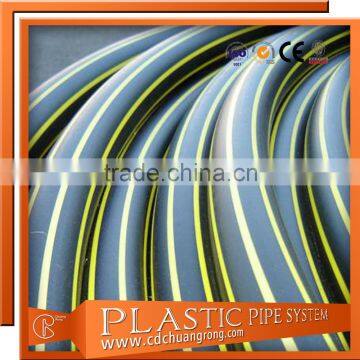

2.Color:black with yellow stripe or as required

3.Specification:please see the following table

4:Connecting way:butt fusion or electrofusion

5.Advantage:ODM.OEM

6.Pressure:

PE100:PN7(SDR11),PN4(SDR17.6)

PE80: PN5(SDR11),PN3(SDR17.6)

7.Product feature:light weight,high strengh,low resistance,

corrosion resistance,easy installation,long lifespan,low cost

CHUANGRONG PE100/PE80  Plastic Pipe Features:

1.Nontoxic

2.Corrosion resistance

3.No Leakage

4.higher flow capacity

5.Convenient for construction and installation

6.Lower system and maintenance costs

7.Longevity: 50 years under pressure use.

 Recycled and Environment-friendly

Applications:

1.Municipal water supply, gas supply and agriculture etc.

2.Commercial & Residential water supply

3.Industrial liquids transportation

4.Sewage treatment

5. Food and chemical industry

7. Replacement of cement pipes and steel pipes

8. Argillaceous silt, mud transportation

9. Garden green pipe networks

Inspection:

We can supply ISO9001-2008, BV ,SGS, CE etc certification.

All kinds of products are regularly conducted pressure-tight blastingtest,

longitudinal shrinkage rate test, quick stress crack resistance test,tensile test and melt index test,

so as to ensure the quality of products totally reach the relevant standards from raw materials to

finished products.

CHUANGRONG PE PIPE Properties :

 1.Specific Gravity, g/cm3, 20(C): 0.941-0.965

 2.Longitudinal Reversion, % (110(C)): <=3

 3.Oxidation Induciton Time, min (200(C)): >=20

 4.Extension Rate at Break. %: >=350

 5.Hydraulic Pressure Test:

1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.

2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.

3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.

Multiple Package:

1.Bulk  2.Plastic bags 3.Coil or as required

CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.

Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.

If you need to know more pls keep contact ,we will try our best to service for you.

Thank you for your looking through.
