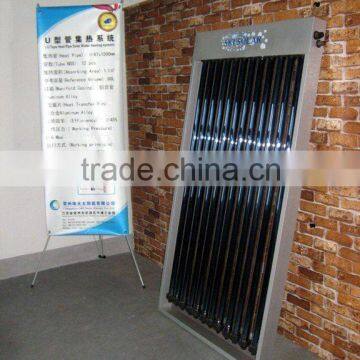

U Pipe Solar Collector

Special designed for the separate pressurized solar heating systems. It's easy to combine with existing water heating systems. This solar collector is of excellent figure, reliable performance, low maintenance, convenient replacement. One or several glass tubes broken will not affect the operation of the whole system.

Working Principle

The vacuum tubes absorb the solar energy and transfer into the heat energy, then pass it to the U pipes. U pipes conduct the heat to the water.. The circulation pump makes water circulate every now and then. And Each time the water circulates through the header pipe, the temperatures is raised by 5-10 degree. There is no water in the vacuum tube, so the tube will not break in the winter. It can be still operate in the event of occasional tube breakages.

Specifications:

Heat pipe material: TP1 copper

U pipe material: copper

U pipe diameter: 8mm

Vacuum tube model: φ47mm×1500mm or φ58mm×1800mm

Fins around U pipe: Aluminum

Inner manifold: copper header pipe

Outer manifold: stainless steel SUS304-2B, thickness: 0.31mm or aluminum alloy, thickness: 2mm

Insulation: rock wool, thickness: 30mm to 60mm.

Frame: aluminum alloy, thickness: 2mm

Low price, high quality!
