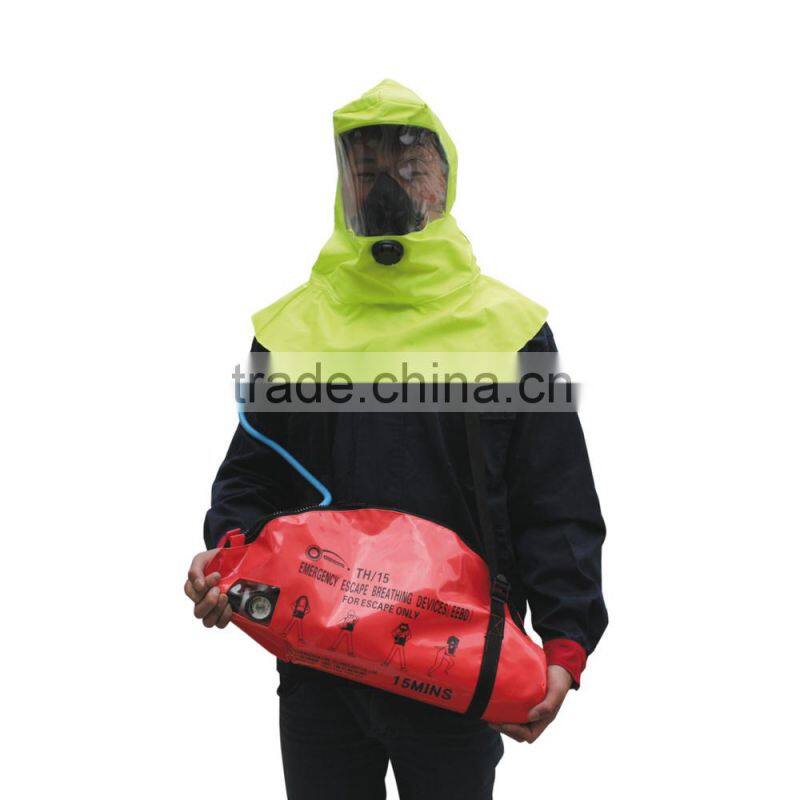

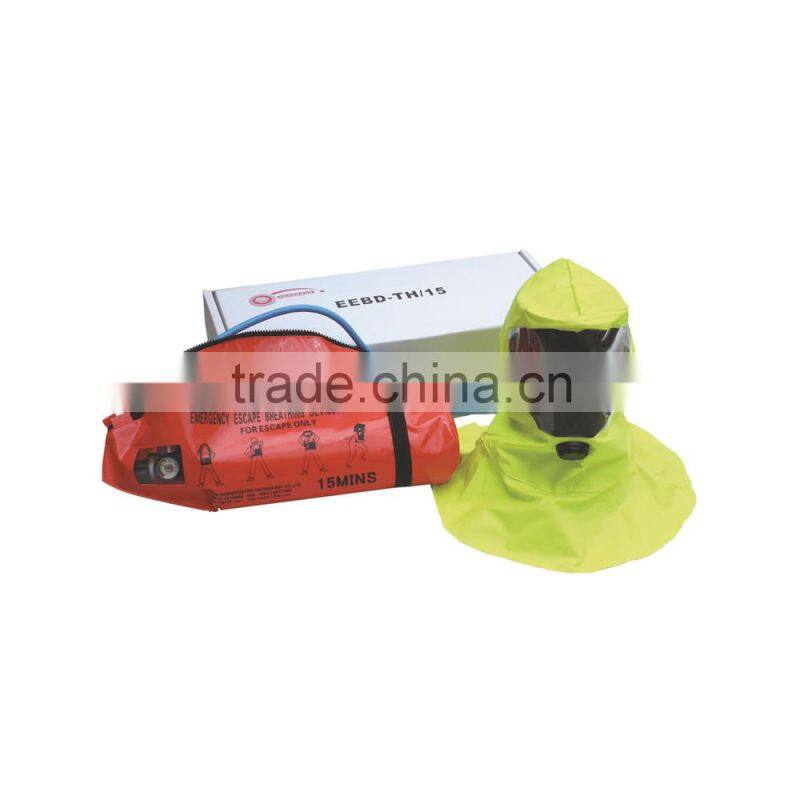

CCS APPROVED EC MED SOLAS Life Saving Equipment TH/15EEBD Emergency Equipment Breathing Device

 Model  : XINTHDF-15  ,VOLUME :3 L ,   Rating working pressure :21 MPA, Duration Time:>= 15 MIN ,Weight :<= 8.5 kg

 Details:

1.1   Preface

Compressed air emergency escape breathing apparatus XINTHDF-15(shorten as EEBD 15) is self protection breathing device for Escaping from the dangerous place. Please read the instruction manual carefully before use, which can help you to escape from the emergency scene safely in effective time as long as you master the using method correctly.

EEBD 15 is prohibited to use for fire-fighting, entering into oxygen-deficit and liquefied cabin, and fire fighter as well.

The user should be trained professionally before use,  should be taken the scheduled maintenance correctly according to instruction manual.

1.2   Main performance Index

a.  Output pressure of Combination valve:(10±2)bar

b.  Output flux of Combination valve:(38±2) L/min

c.  Opening pressure of medium safety valve:13bar~20bar

d.  Alarm pressure≤10 bar,alarm volume≥90dB

e.  Rationed operation time≥15min

f.  Absolute value of breathing resistance under normal temperature≤500Pa

g.  rationed working pressure of cylinder210bar

1. Effective volume of cylinder 3 L
2. Completed weight≤8.5Kg

j.   Package size(m m)520×150×250

1.3   Standard

Complied with IMO RES MSC.98(73),EN1146:2005,ISO 23269-1:2008.

Solas Emergency Escape Breathing Device EEBD

1. Emergency Escape Breathing Devices are only used for escape from a compartment that a hazardous atmoasphere to provide personel breathing protection

2. Not be used for fighing fire, entering oxygen defi-cient voids or tanks , or worn by fire fighters

3.there is a pressure gauge on the cylinder to indicate the cylinder pressure. the cylinder pressure of EEBD is not indicated by a pressure gauge during storaging

4. the hood is a flame resistant head cover which completely covers the head ,neck, and may cover portions of the shoulders , there is a clear window on it

5. easy to use , open the cylinder value and put the hood on head when use.

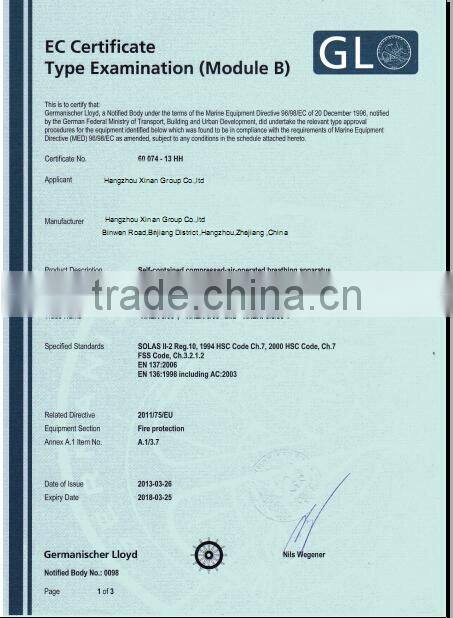

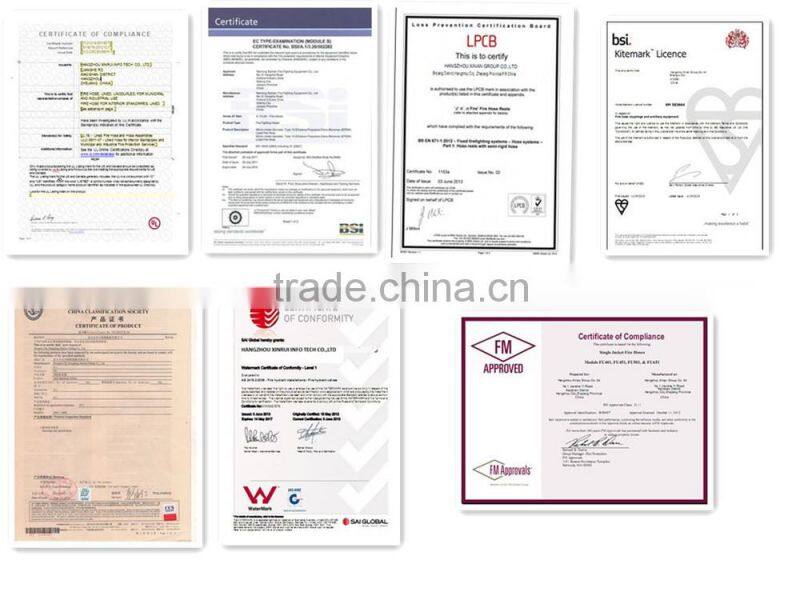

Hangzhou  Xinrui Info Tech  Co., Ltd. is a professional company provides  fire fighting equipment  and  Marine Safety equipment in according with IMO and SOLAS rules and regulations etc. Many  of our products have achieved MED ,CE,SOLAS,CCS ,FM ,UL ,TUV BSI certification .

Main products :Fire fighting equipment  and marine safety equipment .Which has productive capacity of 10,000,000 meters of fire-hose and more than 1,000,000 products annually.

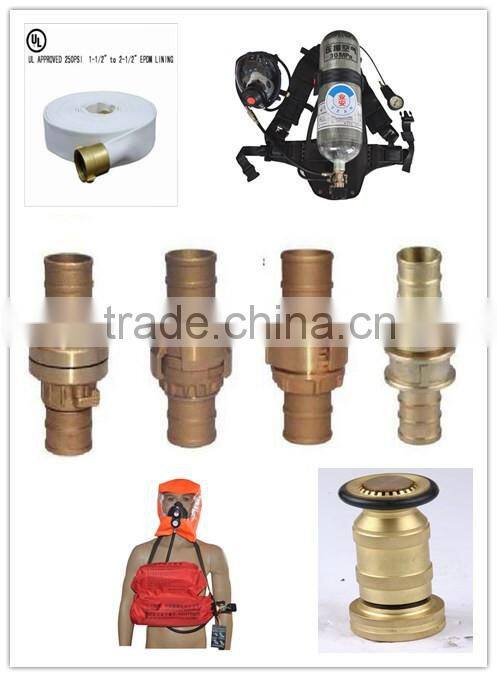

A. Firefighting Series: Fire Hoses, Fire Hose Couplings, Fire Hose Nozzle, Fire Hose Boxes, Fire Hydrant, Foam applicatorSelf-Contained Breathing Apparatus (SCBA), Emergency Escape Breathing Device (EEBD), Firefighting Suit, Explosion proof lamp, Chemical suits, fire helmet , etc.

B.Marine Lifesaving Series: Immersion Suits, Life jackets, Lifebuoy, Inflatable Life Raft, Life jackets lights, Lifebuoy lights, Life raft lights, Signals etc.

C. Marine Out fittings: Pilot rope ladder and Embarkation rope ladder, Gangways, Personnel transfer net, Gangway net, Scramble Net, Sacrificial Anode etc.

FAQ:

1.Quality assurance

All products will have been strictly quality checked before packing .

2.OEM and ODM service available.

Color on fire fighting equipment

Print your brand on our equipment

Specification and dimension

Customized the packing

3.Where is your company ?  We are located in .

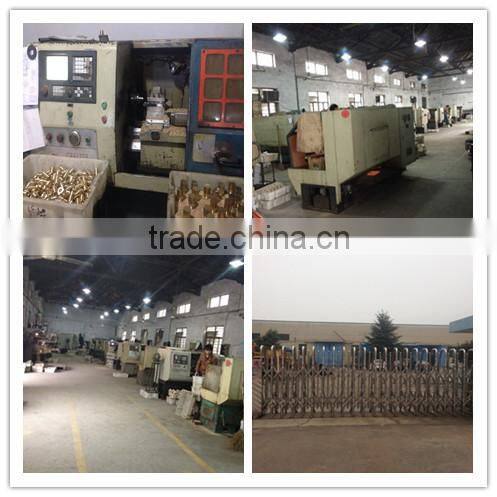

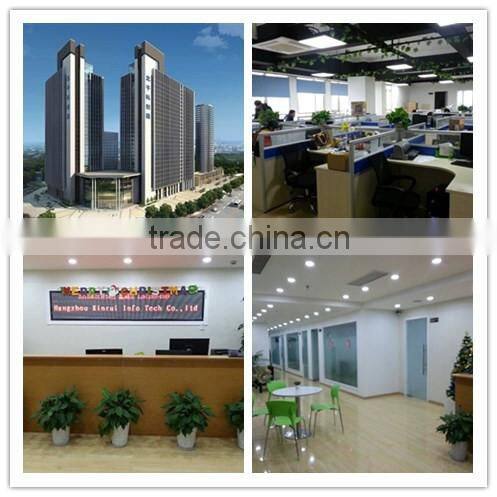

Hangzhou city , famous for “ west lake “ .We have factory in Shang yu ,near to Hangzhou  .
