Product Details

Type	grain cleaning machine	Use	Seed cleaning processing
Certification	ISO9001:2000,CE	Place of Origin	Henan, China
Brand Name	JINGU	Model Number	5X-5
Condition	New	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

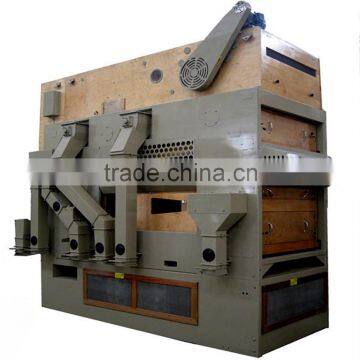

2015 hot sell Cimbria type sunflower seed cleaning machine

Product Description

Introduction of Seed cleaning machine

The 5X series seed cleaning machine was especially designed for flexible, high quality use in the seed industry. It is used for grain, fine seeds, barley, malt, soy beans, corn, oilseeds, and pulses.

The cleaner can be used for pre-cleaning and intensive cleaning, but mainly for seed cleaning.

Excellent cleaning results are achieved due to the variable screening diagrams and the aspiration system.

The closed, bolted and painted steel construction ensures a long service life.

Characteristics

n Adjustable, drum feeds with an optional vibrating chute

n Proven rubber ball cleaning method for good performance

n Main screen boxes adopt wear resistant plywood, which is approved for food

n Overall box-type structure could reduce dust content in workshop

n Cleaning with the highest precision where calibration is also possible

n Powerful air separation system allowing for a high separation rate

n Removable ball trays

Model	5X-5	5X-12
Dimension(L×W×H)	3200×1920×3600 mm	3790×1940×4060 mm
Overall weight	3250 kg	3600 kg
Rated capacity	5 t/h	10 t/h
Overall air volume	8200 m3	12520 m3
External air blower	4-72N0-6A, 7.5 kW	4-79N0-6A, 11 kw
Vibration sieve motor(gear motor)	2.2 kW	2.2 kW
Back lifting system motor	3.0 kW	3.0 kW
Feeding motor	1.5 kW	1.5 kw
Total Power	6.7 kW	6.7 kw
Air Blower Type	centrifuge air blower
Top air blower Rotary speed	4-79NO6A,1400 r/min
Back lifting air blower Rotary speed	100~1000 r/min
Screen Type	piercing screen
Screen Dimension (L×W)	800×1250 mm
Frequency	300(80~400) times/min
Amplitude	30 mm
Layers and number	4 layers,7 pieces	5 layers,15 pieces
Screen number and type
level 1	1 piece round hole	3 pieces slot hole
level 2	2 pieces slot hole	3 pieces slot hole
level 3	2 pieces slot hole	3 pieces slot hole
level 4	2 pieces slot hole	3 pieces slot hole
level 5	null	3 pieces slot hole

Our Services

Packaging & Shipping

FAQ

Q: Guarantee and after-sales service?

One year guarantee for whole machine
24 hours technical support by email
Calling or door to door service

Q:What is different between combined seed cleaner and fine seed cleaner?

Fine seed cleaner realize 99% high efficiency cleaning for kinds of seed.
Enviromental protection is important sector by our equipment. Our equipment complete with dedusting system.
Noise control to keep low noise
Energy saving solution to whole seed cleaning system.
C/W air circulation system
The key point advantage is fine seed cleaner suit for large-scale industrial production for seed.
Our customer could occupy the seed market more easily depend on good quality fine seed.
