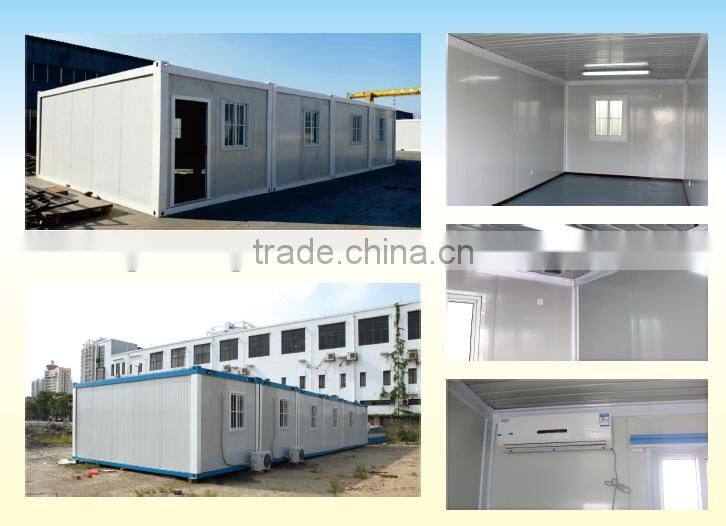

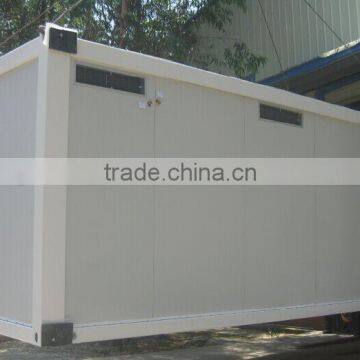

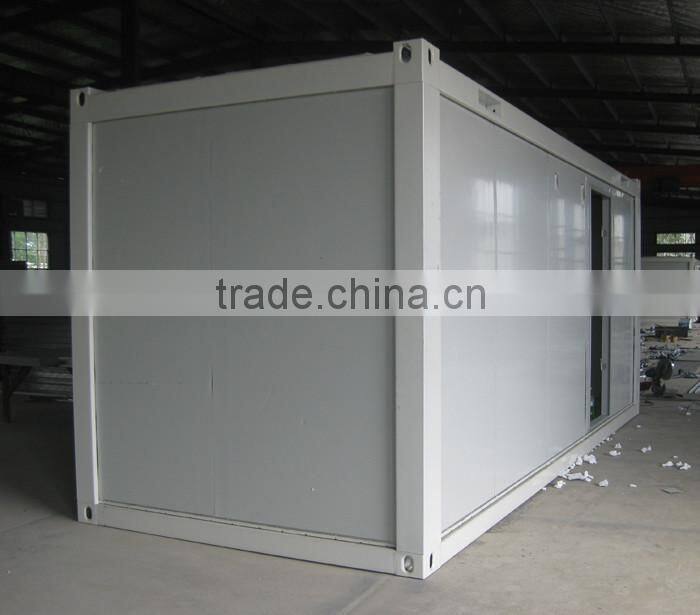

Flat Pack Container Cabin

Design: Design on your request.

Application:

1. Widely used in building site, such as road project, railway, real estate, bridge project, dam project, power station, and mining site and so on..

2. Widely used for factory.

3. Widely used for family house for low income house, dormitory, accommodation, apartment, kitchen and so on .

4. Widely used for temporary house, such as temporary hospital, temporary classroom, wild temporary houses etc.

5. Widely used for gas station.

6. Widely used for villa.

Technology date:

1. 1.       Wind against: 10-level wind
2. 2.       Static load: 0.20 KN /m2;   Live load: 0.3 KN/m2
3. 3.       Basic wind pressure: 0.35 KN/m2
4. 4.       Earthquake intensity, Fortification intensity: 8 degrees for singly story
5. 5.       Damp proof & flame proof
6. 6.       Easy assemble, 2-3 persons can install about   3 units per day.

Assembly Period:

     5 people in one team. The workers must accept training first.

     5units can be finished installation per sunny day.

Main material list as bellow

pedestal

4mm bend steel

post/column

4mm bend steel

cantrail beam

3mm bend steel

floor slab

1220*2440*15mm plywood or fiber cement board

External wall

50mm EPS sandwich panel(the two side is steel sheet,thickness is 0.326mm),Density 9kg/cubic

Internal wall

50mm EPS sandwich panel(the two side is steel sheet,thickness is 0.376mm),Density 12kg/cubic

Door

5cm EPS sandwich panel(the two side is steel sheet,thickness is 0.376 mm ),Density 12kg/cubic

Window

plastic steel sliding window(1150mmx1000mm) ,the thickness of glass is 4mm

galvanizing channel

2720×50×30mm
