LED Hi Bay Lighting Hi Bay lampen

Specifications

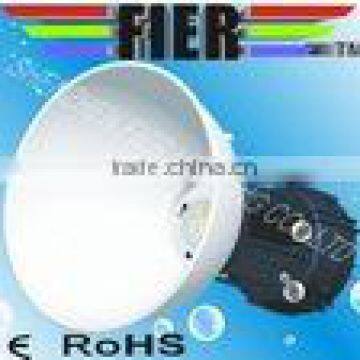

LED high bay lighting

Model: FEI108

Features:

1.Input Voltage: AC85V~265V
2.Freqency Range: 50Hz~60Hz

3.LED Working Voltage: 30-36Vdc
4.LED Quantity:1PC
5.LED Consumption:92W
6.System Consumption:106W
7.LED Efficiency:60-100LM/W
8.Initial Flux: WW/7,000LM;

                      NW/7,400LM

                      CW/7,100LM

9.IP Rating:IP65
10.Working Life Span: 50,000Hours
11.Connect Wire: Brown/L;Blue/N;Yellow, Green/G

12.Housing Color of Lamp Head: Black/ Silver (optional)

Color Temperature: WW/2,700-3,900K;NW/3,900-6,000K;CW/6,000-7,000K

Data:

1.  Total Harmonic Distortion:≤9%

2.  Power Factor:>0.9

3.  Height:Average Illuminance

               3M: 576 Lux

               6M: 210 Lux

               9M: 106 Lux

    4.  Illuminance Area (Light Spot)(Round):

             Height: 3M / Dia.6.18m
             Height: 6M / Dia.11.97m
             Height: 9M / Dia.17.76m

    5.  luminance Uniformity:>0.7

    6.  Luminaire Efficiency:>85%

    7.  Juction Temperature: ≤80 Celsius degree

    8.  Operation Temperature: -40 ~ +55 Celsius degree

    9.  Storage Temperature: -25 ~ +55 Celsius degree (25 Celsius degree is best-fit)

    10. Color Rendering Index: WW/Ra>68; NW/Ra>75; CW/Ra>75

    11. Power Line: 0.75mm three-core cable

Material:

1.  Light Source: Integrated LED

2.  The chips are all internationally renowed brands

3.  Light body:high quality aluminum body

4.  Light distribution uses reflector processed by Aluminum CNC Machines.

Advatages:

1.  Design/Engineering Simplicity

2.  High-energy efficiency

3.  Good heatabstractor

4.  Gentle for eyesight when working

5.  Long Life Span

6.  Low Power Consumption

7.  Pure color,no pollution,environment protected

8.  High Quality,competive price

9.  Prompt Services,etc.

Applications:buildings,factories,warehouses,large supermarkets,exhibition halls,stadiums,squares,docks and so on.

   If you have any interests in it or need more details,please don't hesitate to contact us.
