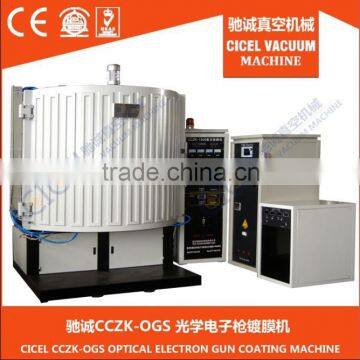

CCZK-OGS ELECTRON BEAM OPTICAL COATING MACHINE

1.CONTACT US

Contact:ROSA CHEN

Company:CICEL VACUUM COATING MACHINE CO.,LTD

ADD:Road2,Binhai Industrial park,Longwan district,Wenzhou city,Zhejiang province, 325000,China

Tel:0577-86739805  13857737962

Fax:56615100

2.

3 .Configuration of machine

Electron Gun:

4. Product Description

Glass lenses, optical resin lenses, binoculars, glass lens, optical lens, light cup, crystal glass products, stage lights, electronic products, products such as mobile phones Windows, panel shell coating.Chi shing optical device using the touch screen + PLC man-machine interface and vibration semiconductor film thickness instrument control system, and can realize parameter input, process monitoring and data storage, and other functions, can set the process flow and execution, the coating film layer repeatability, optical performance stability, improve the quality, to solve the complexity of manual operation, coating color, such as optical performance inconsistency problem.Optical coating equipment can be many layers of plating system various membrane system.Optional configuration of different evaporation source, electron gun and ion source and the film thickness gauge can be plating a variety of film system, and other high melting point metal, oxide, compounds can evaporation, membrane material and can be coated on the glass surface.

1 design load big crucible electron gun, the evaporation process of membrane materials surface smooth, uniform distribution of evaporation;

2 choose the international famous brand America INFICON semiconductor film thickness of vibration monitoring system, which can realize film speed and the coating process automatic control;

3 we require stringent design specification, tie-in and friendly man-machine interface touch, enjoy the fingertip control;

4 intelligent programming and industrial PLC perfect combination, let you experience the chi shing equipment intelligent beauty;

5 multi-function workpiece rotation mode of innovation design, capable of carrying more than dome type optical coating umbrella or planet type bogie;
