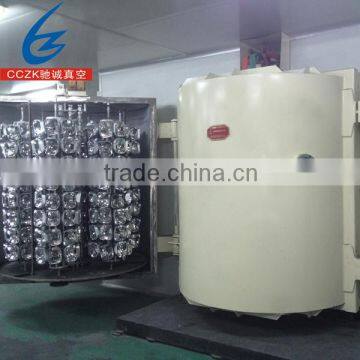

Silicone oil protective film coating machine for auto lamps
- 20 Set / Sets per Month
- Ningbo Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CICEL | |
| Model Number | CCZK-1600 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Certified ISO90012.Nice after-sales service
3.Strong technology support
4.Size can be customized
5.doulbe doors coating
I.Protective film coating machine for auto lamps is designed for automobile lamps, coating silicone oil after metalising reflective aluminum. This protective film is anti-corrosive, anti-oxidative and durable.With reasonable structure, even film, good quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Coating process:
Ion cleaning——Reflective Aluminum Coating——Ion Bombardment——Spray Silicone Oil
II. Headlamps vacuum metalising machine: With double door for load auto lamps in turn to save time, configuration of ZJP-1200 Roots pump ,H-150Mechanical pump,KT-900 Diffusion pump,2X-30 Holding pump, from good pump supplier.
III . Auto lamps PVD coating machine
Technical indexes and parameters:
1. Vacuum chamber: ø1600mm×1950mm
2. Vacuum degree: (ultimate vacuum) 8×10 -4 Pa(clean vessel, idle load)
3. Pumping speed: 5×10-2≤5min (clean vessel, idle load)
4. Evaporation power:380V/12V 30KW
5. Size of rotary rack: ø450×1790mm 6 pieces
6. Total power: 380V 50Hz 80KW (max. 95KW within short time)
7. Total water volume: 0.2Mpa 3m3/h
8. Total gas volume: 0.4-0.8Mpa
