2015 New Design Durable Connectors and Cables 12v Wire Connectors

Inner packaging: Shaped Plastic
Outer packaging: Carton

2015 New Design durable connectors and cables 12v wire connectors

Product Description

1. One-stop solution,including male connector, female connector, terminals.

2. 2 way 6.0mm pitch wire to wire waterproof automotive connector

3. Housing to housing lock,high stability

4. Produce in house,resonable price with excellent quality

5. 100% testing befere shippment

6. Plastic Material: PA66+20%GF;

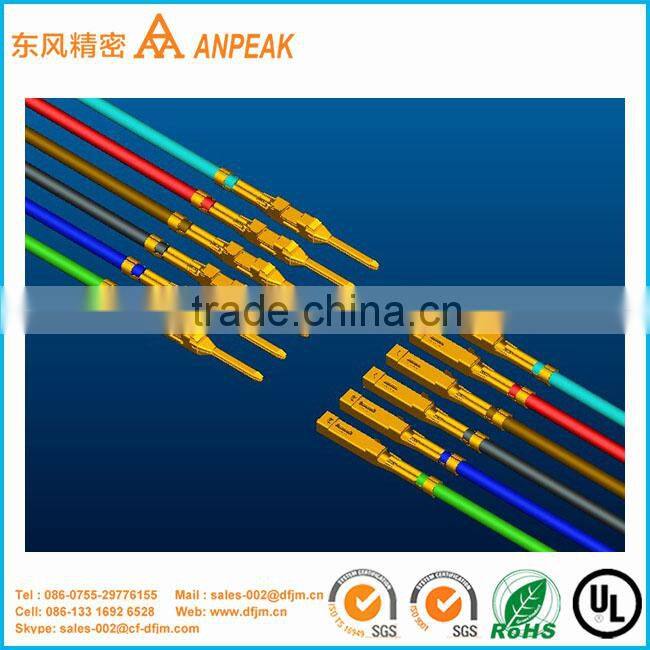

    Terminal: Brass for female conn.,tin-plated; Phosphorous bronze for male conn.,tin-plated;

7. Color: gray

Technical specifications

1. Voltage Rating: 24V DC/AC

2. Current Rating: 5A

3. Temperature Rating: -40~105°C

4.Contact resistance: initial value:10m ohm Max; after environmental testing:20m ohm max

5.Insulation resistance: 1000 M ohm Min.

6.Withstanding voltage:500V AC/Minute

7.Applicable wire:0.2-0.5mm²

8.Compliant with RoHS

9. Waterproof standards:IP68

Packaging and shipping

Inner packaging: Shaped plastic or customized

Outer packaging: Carton or customized

Shipping via Express

Our Service

Samples provide in 3 days, MP order delivery time in 2-4 weeks;

 Your email will be replied within 24 hours;

Factory price,international standard quality, short delivery time, zero compliant.

Please contact us with your demand for plastic parts

Please send us your inquiry including: 2D drawing and 3D model of the requested part (save a single file, eg ZIP), material specification, the annual number of parts and other important information.

Demand will be sent to the contact person.

We will try to prepare our quotation as soon as possible.

Looking forward to serve you with our best quality and reasonable price.

Contact us now.

Sales manager:  Sophia  cell :+86-133 1692 6528 / TEL: +86-755-2977 6155
