zhicheng 608-60T Auto-feeding Hydraulic Press Cutting Machine
- shanghai ningbo qingdao (Auto-feeding Hydraulic Press Cutting Machine)
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
zhicheng 608-150T Nonmetal Soft Rigid Material Four Columns Die Cut Hydraulic Press
-
zhicheng 608-100T Thermoforming sheet auto die cutting hydraulic press machine China
-
zhicheng 608-100T Plane Hydraulic Plastic Die Cutting Machine cut blister & tray for cosmetic
-
zhicheng 608-200T Automatic Precision 4-Column Plane Hydraulic Plastic Die Cutting Machine
-
zhicheng 608-200T Hydraulic Automatic Double-Side Blister Cutting Machine with Stacker
-
zhicheng 608-200T Auto-balance Precise Hydraulic Plastic Cutting Machine
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | Zhicheng ( Auto-feeding Hydraulic Press Cutting Machine) | |
| Model Number | 608-100T | Type | Cutting Machine | |
| Voltage | 220V/380V | Power(W) | 15HP | |
| Dimension(L*W*H) | 2600*3550*1650mm | Weight | 6000KG | |
| Certification | CE ISO9001 SGS | Warranty | 1.5 years for Auto-feeding Hydraulic Press Cutting Machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

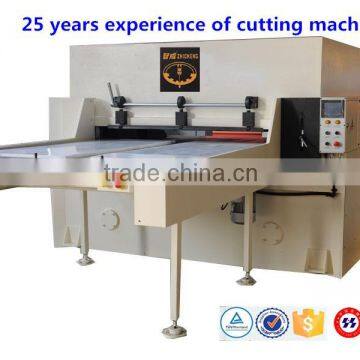

Auto-feeding Hydraulic Press Cutting Machine
1.Company Detail
Our company is professional on manufacturing shoemaking machinery with 25 years history, located in the world's footwear production in manufacturing city base-- yancheng, Jiangsu, with the integration of R&D, manufacturing and sales, also own the modern management , have the continue developing and innovation in shoe making machinery and rubber, EVA sole making machinery.
Our company has a complete rubber making machinery. moreover, our machine sold to 60 countries in the world. Perfect after-sales service and high quality machine could be offered by our factory.
Machine Description
1. Technical Parameters
Auto-feeding Hydraulic Press Cutting Machine
| Model | Cutting Force | Dimension (L*W*H) | Cutting Area | Motor Power
| Stroke | Net weight |
| ZC-608-60T | 60Tons | 2160x3250x1600mm | 1250x800mm | 7.5HP | 50~230mm | 4600kg |
| ZC-608-60T | 60Tons | 2280x3250x1600mm | 1470x800mm | 7.5HP | 50~230mm | 4800kg |
| ZC-608-60T | 60Tons | 2460x3250x1600mm | 1600x800mm | 7.5HP | 50~230mm | 5000kg |
| ZC-608-100T | 100Tons | 2200x3550x1650mm | 1250x900mm | 15HP | 50~230mm | 5600kg |
| ZC-608-100T | 100Tons | 2470x1200x1420mm | 1470x900mm | 15HP | 50~230mm | 5800kg |
| ZC-608-100T | 100Tons | 2600x1200x1420mm | 1600x900mm | 15HP | 50~230mm | 6000kg |
ZC-608-150T | 150Tons | 2300x3550x1750mm | 1250x900mm | 20HP | 50~230mm | 8600kg |
| ZC-608-150T | 150Tons | 2570x3550x1750mm | 1470x900mm | 20HP | 50~230mm | 9000kg |
| ZC-608-150T | 150Tons | 2700x3550x1750mm | 1600x900mm | 20HP | 50~230mm | 9400kg |
| ZC-608-200T | 200Tons | 2350x3580x1780mm | 1250x900mm | 30HP | 50~230mm | 10000kg |
| ZC-608-200T | 200Tons | 2620x3580x1780mm | 1470x900mm | 30HP | 50~230mm | 10500kg |
| ZC-608-200T | 200Tons | 2750x3580x1780mm | 1600x900mm | 30HP | 50~230mm | 11000kg |
Customer use of the site
2. Features and Advantages
Features and Advantages( Auto-feeding Hydraulic Press Cutting Machine ) |
1.The machine is applicable for whole-broken or semi-broken operation of various nonmetal slices materials by die cutter. For example: such industries as plastics packing, pearl cotton packaging, rubber and printing etc. |
2. Microcomputer controlled, with simple, prompt and accurate operation. |
3.The main machine adopts double oil cylinder, double-crank connecting rod balancing, four-column precise guiding mechanism, which can guarantee that the cutting depth at every cutting position is same.
|
4. The pressing board carries out slow cutting when it presses downward to contact the die cutter, which can make that there is no size error between the uppermost layer and lowermost layer of cut materials. |
5. The central oil supply automatic lubricating system guarantees the service life and precision of machine. |
| 6. Single-side or double-side automatic feeding system can be allocated to enhance the production efficiency of machine twice or thrice. |
Mass Produced products
We can according to your material,requirements,design the machine and mould for you.
3.Application:
The hydraulic cutting press machine is suitable to die cut Footwear factory, shoe materials factory, bag factory , leather goods factory, rubber conveyor belt, PVC conveyor belt, EVA foaming, PVC foaming, rubber products, beach shoe forming, vamps, sport shoe, and so on
4.the cutting machine Workshop Show
5. Our Certifications
Auto-feeding Hydraulic Press Cutting Machine
1. We are a factory,and the price is favorable.
2. We have strict QC system.
3. We offer a free after-sales service for 1.5 years.
4. Our engineers are available to service machinery overseas.
5. Our machines have been sold to over 60 countries.
Trade term:FOB,CIF,EXW
Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
6.Trade shows
Note: we can produce different types, tons and cutting area of machine according to your demand.
Why choose us?
* One year guarantee.Guarantee and after-sale service
* 24 hours technical support by e-mail.
* Calling or door-to-door service. Seller can send the engineer to buyer’s factory, but Buyer shall pay the round-trip air fare and accommodation
* Offer user manual and videos.
