Auto Wireless Reverse System Auto Parking Sensor

Specifications

auto wireless reverse system auto parking sensor

Specification:

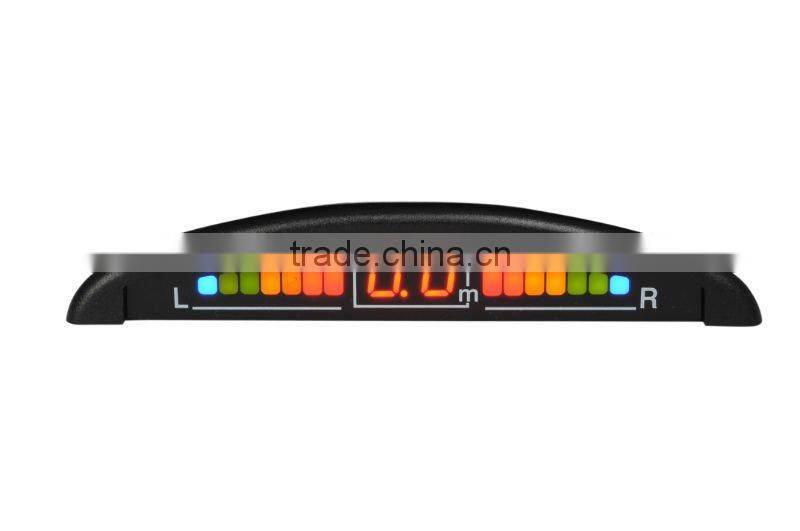

1. Wireless LED Display ultrasonic parking radar
2. Buzzer / voice optional
3. Dual CPU, 4sensors system.
4. without wire between the control box and LED display .
5. Operating voltage rating: DC12V.
6. Max power: Pmax<5W.
7. Operating temperature: -40°C~80°C.
8. Display Distance: 0.3m~2m.
9. Alarm Distance: 0.3m~1.5m.
10. Alarm voice: >80dB at 10 cm.
11. Ultrasonic frequency: 40KHz.
12. 2 years warranty-defect ones can be replaced by new

Product technical parameters:

• Rated working voltage:12V DC (9.6~16V DC voltage)l
• Operating current:20~180mA
• Detection range:30CM~250CM l
• Display range:30CM~250CM (centimeter-level display accuracy)l
• Volume de alarme:≥ 80dBl
• Working temperature:-40~+80°Cl
• Ultrasonic frequency:40kHz±1kHz

Product configuration:

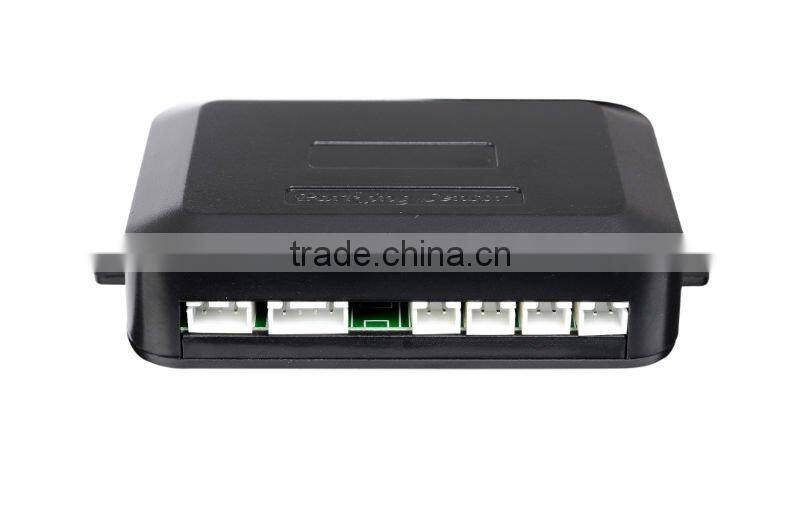

• Controller host:1 Pll
• BIBI speaker:1 PC (standard line long 5M)
• Ultrasonic sensor:4 PC (standard line long 2.5M)

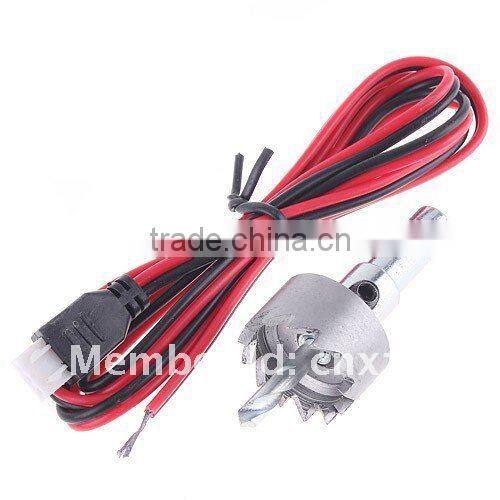

• Power cord:1 PC (standard line long 0.8M)
• Drill:1 PC (standard diameter : 22mm
• Product manual:1 PC (neutral specifications manual in Chinese and English)

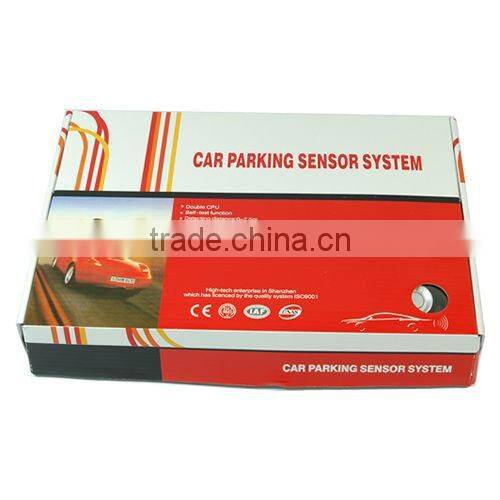

Products of conventional packaging:

• Neutral white box packaging; Quantity:20 PCs/carton; Net weight:12kg; Gross weight:13kg;Carton dimensions:54x32x45CM.

Quality commitment:

• quality guranted  within two years, the company promises users free replacement, freight paid by the users themselves.

Select reason for reversing radar products:

1.   Parts suppliers have been audited,all integrated circuit are world renowned brands
2.  Production process requirements strictly regulated,controllers,sensors and monitors allare tested for aging process before delivery to ensure stability after the factory;
3.  Each host, sensor  pssed  the 100% distribution and selection to ensure consistency of all sensor detection accuracy
4. Commitment of product quality guarantee period,and had established perfect after-sale service system, unlock all the user to worry about
5. Strong technology development ability,design and development products according to customer requirements or for the customer original equipment manufacture (OEM) are avalibale
