Panel Sizing Circular Saw Blade for Chipboard Cutting Great Quality
- Shanghai Qingdao Tianjin port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
TCT Panel Sizing Circular Saw Blade for MDF, Chipboard and Laminates
-
TCT Circular Panel Saw Blade for Chipboard MDF Laminate Board Cutting
-
Hukay Panel Sizing Circular Saw With Scoring Blade for MDF Chipboard Laminate Board Cutting
-
Tct Circular Saw Blade for Wood
-
Hukay Cross Cutting Tct Saw Blade for Solid Wood
-
Hukay Cutting Blade for Plastic
Product Details
| Place of Origin | Hebei, China | Brand Name | Hukay | |
| Model Number | 400x4.5x3.5x60x96T | Blade Material | Tungsten Carbide Steel | |
| Finishing | Other, non cotated | Size | 400x4.5x3.5x60x96T |
Product Description
Panel sizing circular saw blade for chipboard cutting great quality
Material:
1. Tungsten Carbide tip from Ceratizit, Luxemborg, KCR05/06
2. Saw body: High quality steel plate 75Cr1.
3.Technology support by German expert, quality up to the standard of German DIN54, DIN8033
Characteristic:
1. Specially designed for cutting chipboard-based materials and MDF
2. Combination with conical scoring saw blade there is excellent cutting performance
3. Extremely long life-time of carbide tips
4. TCT panel sizing saw blades are manufactured specially on request of your particular dimensions
Application:
1. Use for cutting single panel,laminated and MDF, HDF, multi-panels.
2. Triple chip flat tooth(TCG), left-right tooth(ATB).
3. Use machine: Used on horizontal panel sizing machine with scoring saw.
Work well on Biesse Selco, SCM, Homag, Bores, Giben etc.
Specification table
| Product No | Outer Diameter | Kerf | Body Thickness | Inner Bore | Teeth Count | Teeth Type | Positioning hole | Equipment |
| ID | D (mm) | B (mm) | b (mm) | d (mm) | Z | T-type | Positioning hole | equipment |
| 1 | 300 | 4.4 | 3 | 30 | 60 | TCG | 2/10/60 | Panhans |
| 2 | 300 | 4.4 | 3 | 65 | 60 | TCG | 2/9/110 | Selco |
| 3 | 300 | 4.4 | 3 | 30 | 72 | TCG | 2/10/60 | Panhans |
| 4 | 300 | 4.4 | 3 | 65 | 60 | TCG | 2/9/110 | Selco |
| 5 | 300 | 4.4 | 3 | 75 | 72 | TCG | 2/10/60 | Homag |
| 6 | 300 | 4.4 | 3 | 80 | 72 | TCG | 2/15/110+4/9/100 | Scm |
| 7 | 350 | 4.4 | 3.5 | 25.4/30 | 72 | TCG | ||
| 8 | 350 | 4.4 | 3.5 | 25.4/30 | 84 | TCG | ||
| 9 | 350 | 4.4 | 3.5 | 60 | 72 | TCG | 2/15/100 | Holzma/Nanxing |
| 10 | 350 | 4.4 | 3.5 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 11 | 350 | 4.4 | 3.5 | 75 | 72 | TCG | 4/15/105 | Giben |
| 12 | 350 | 4.4 | 3.5 | 80 | 72 | TCG | 2/15/110+4/9/100 | Scm |
| 13 | 380 | 4.4 | 3.2 | 30 | 84 | TCG | ||
| 14 | 380 | 4.4 | 3.2 | 60 | 72 | TCG | 2/15/100 | Holzma/Nanxing |
| 15 | 380 | 4.4 | 3.2 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 16 | 380 | 4.4 | 3.5 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 17 | 380 | 4.4 | 3.5 | 75 | 84 | TCG | 4/15/105+2/7/110 | Giben/Jidong |
| 18 | 380 | 4.4 | 3.5 | 80 | 84 | TCG | 2/15/110+4/9/100 | Scm |
| 19 | 380 | 4.4 | 3.5 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 20 | 400 | 4.8 | 3.2 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 21 | 400 | 4.4 | 3.5 | 60 | 84 | TCG | 2/15/100 | Holzma/Nanxing |
| 22 | 400 | 4.4 | 3.5 | 60 | 96 | TCG | 2/15/100 | Holzma/Nanxing |
| 23 | 400 | 4.4 | 3.2 | 75 | 84 | TCG | 2/7/110 | Jidong |
| 24 | 400 | 4.4 | 3.5 | 75 | 84 | TCG | 2/7/110 | Jidong |
| 25 | 400 | 4.4 | 3.5 | 75 | 96 | TCG | 2/7/110 | Jidong |
| 26 | 400 | 4.4 | 3.5 | 75 | 84 | TCG | 4/15/105 | Giben |
| 27 | 400 | 4.4 | 3.5 | 80 | 84 | TCG | 2/9/130+4/19/120 | Selco |
| 28 | 450 | 4.4 | 3.8 | 60 | 84 | TCG | 2/15/100+2/15/125 | Nanxing/holzma |
| 29 | 450 | 4.8 | 3.8 | 60 | 96 | TCG | 2/15/100+2/15/125 | Nanxing/holzma |
| 30 | 450 | 4.8 | 3.8 | 75 | 84 | TCG | 4/15/105 | Giben |
| 31 | 450 | 4.8 | 3.8 | 80 | 84 | TCG | 2/9/130+4/19/120 | Selco |
| 32 | 450 | 4.8 | 3.8 | 80 | 96 | TCG | 2/9/130+4/19/120 | Selco |
| 33 | 480 | 4.8 | 3.8 | 80 | 84 | TCG | 2/9/130+4/19/120 | Selco |
Pictures showing

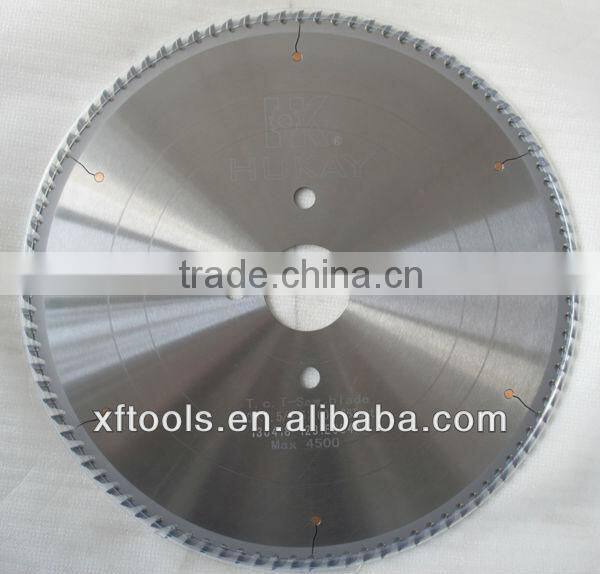

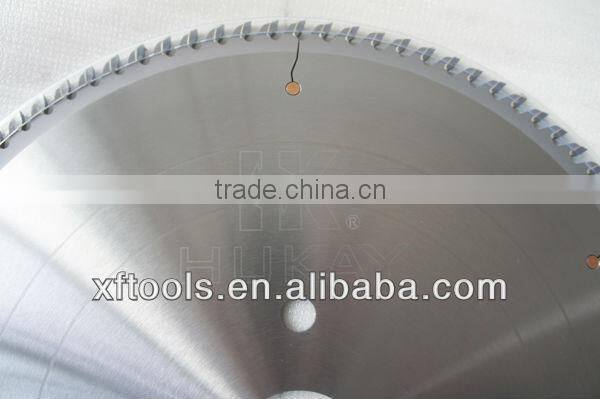

The front

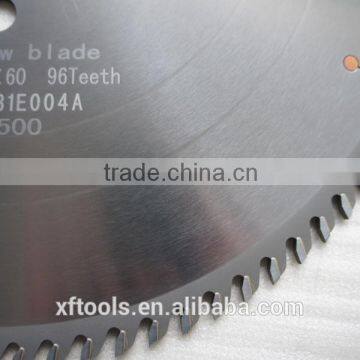

The label

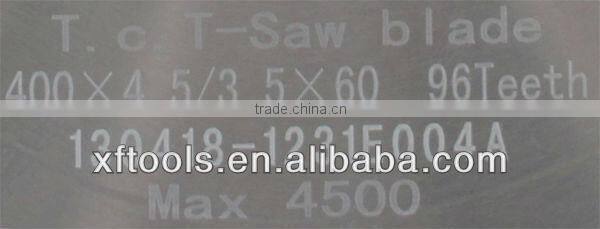

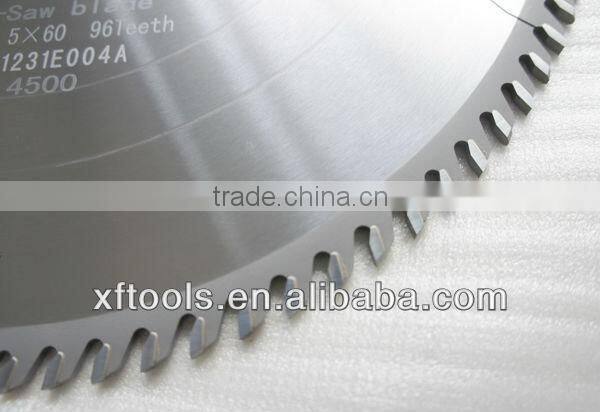

Laser engraving each size on the blades

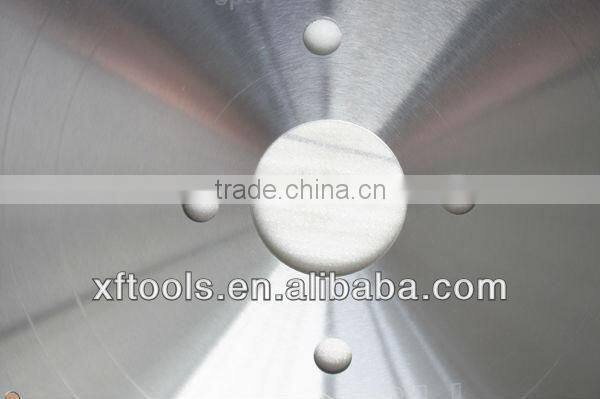

Four(less or more) pinholes to make sure the saw fixed firmly on the axes

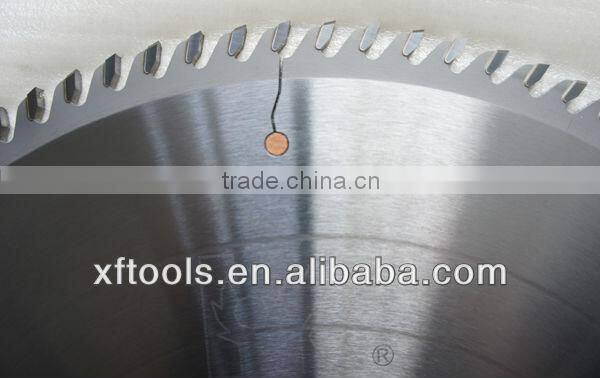

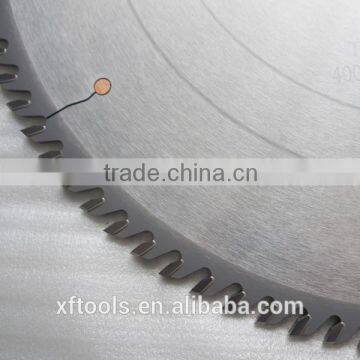

Sharpened TCG teeth for smooth cutting

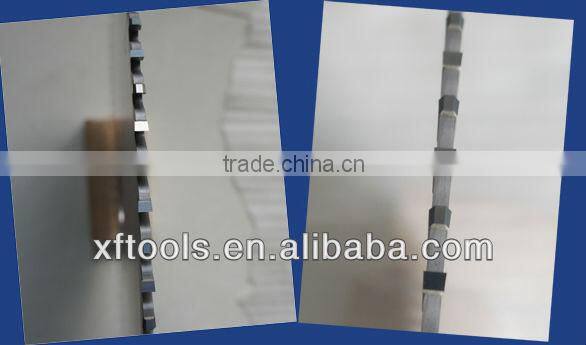

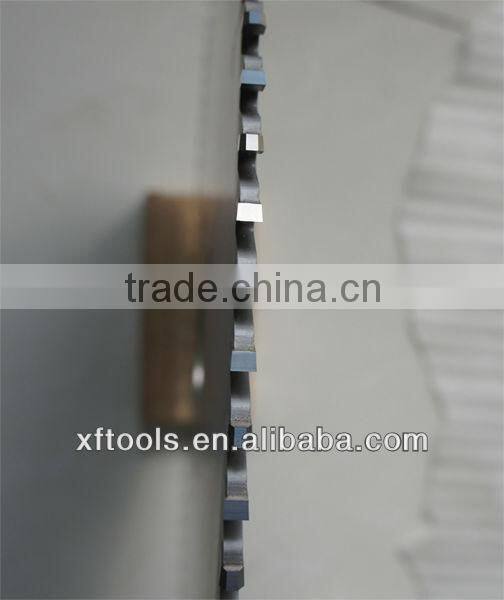

Triple chip flat teeth

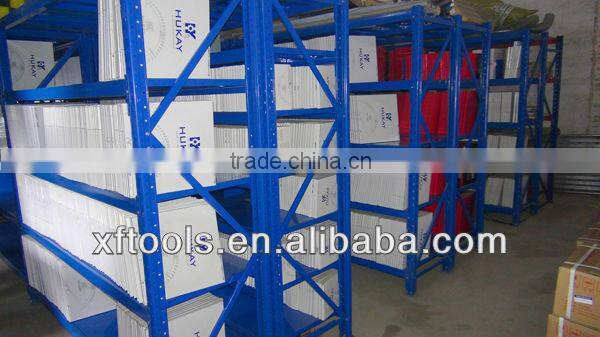

Warehouse management orderly
