1.0mm pitch double row double straight connector Pin header

Inner packaging: Shaped Plastic
Outer packaging: Carton

1.0mm pitch double row double straight connector Pin header

Header connector’s structure is single row, double row even more choice. So does plastic layer. Usual raw material is PBT, PA6T, PA9T and LCP. Usually Finish is tin and gold-plated.

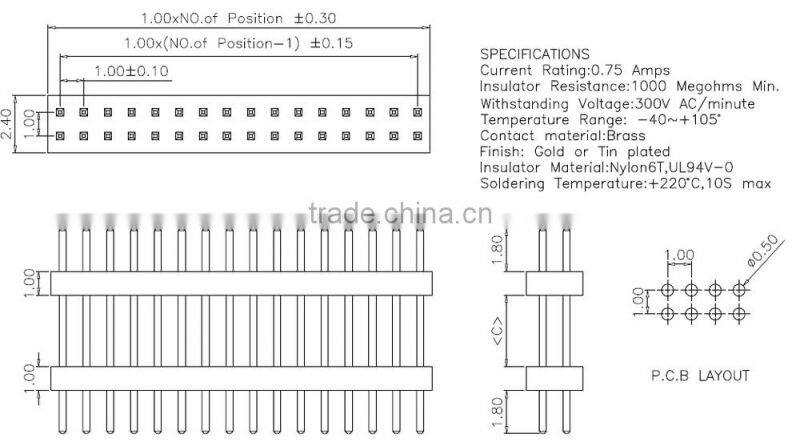

 SPECIFICATIONS

Current rating:0.75 Amps

Insulator resistance:1000 megohms Min.

Dielectric withstanding:AC 300 V

Operating Temperature: -40deg C ~+105deg C

Contact material:brass/phosphor bronze

Insulator material:standard Nylon-6T UL 94V-0

Finish: gold flash or Tin plated or Duplex plating

Max processing temp:230%dfor 30-60 seconds. (260%dfor 10 seconds.)

Packaging and shipping

Inner packaging: Shaped plastic or customized

Outer packaging: Carton or customized

Shipping via Express

Our Service

Samples provide in 3 days, MP order delivery time in 2-4 weeks;

Your email will be replied within 24 hours;

Factory price,international standard quality, short delivery time, zero compliant.

Tips:

If you do not find your needed products in our website,it do not mean that we do not produce what you are looking for.

You know like those products there are so many  speficications and we may not put all on website.

You can send your pictures or drawings for us checking to see whether we can help you or not.

 If you needs those above products,pls do not forget to tell me which series,it will help me quote to you more quickly and accuracy.

Thks for you again and hope have a happy purchase !

Certificate

 Our Team

                   R&D team                                                                             Sales Team

We have R&D engineers ready to discuss how best to meet your exact OEM specifications,

excellent sales team to ensure good comunications

 Our Workshop

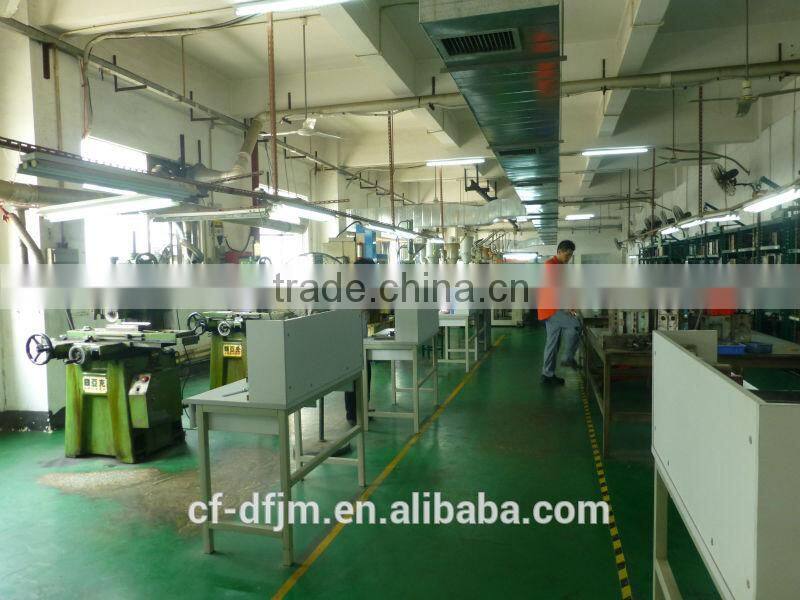

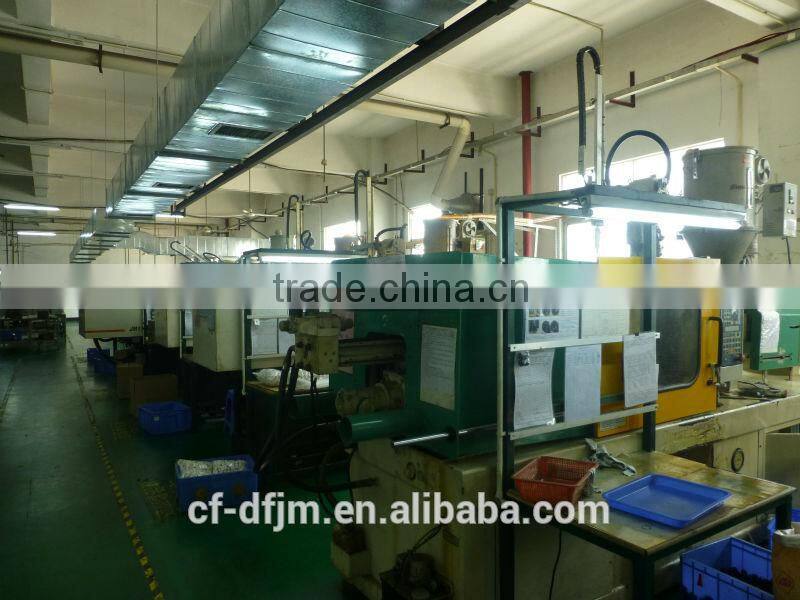

            In house mold workshop                         Plastic Injection Workshop

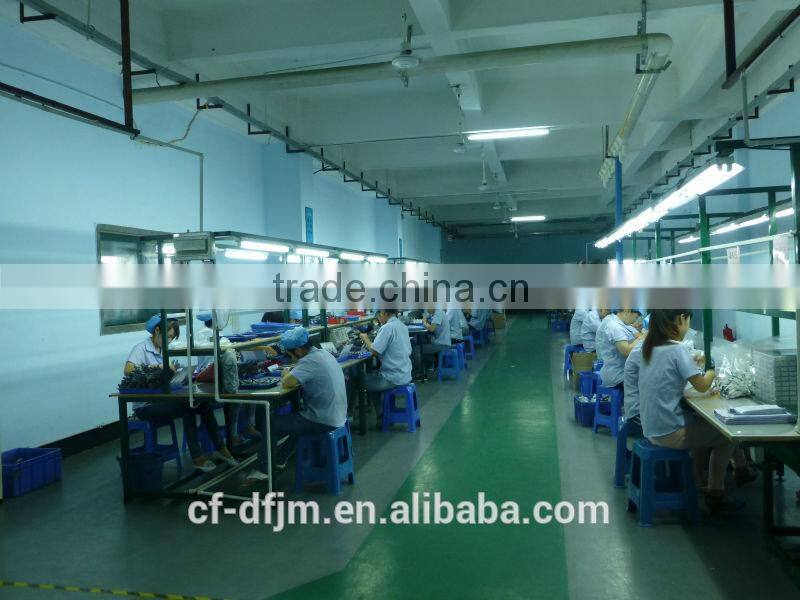

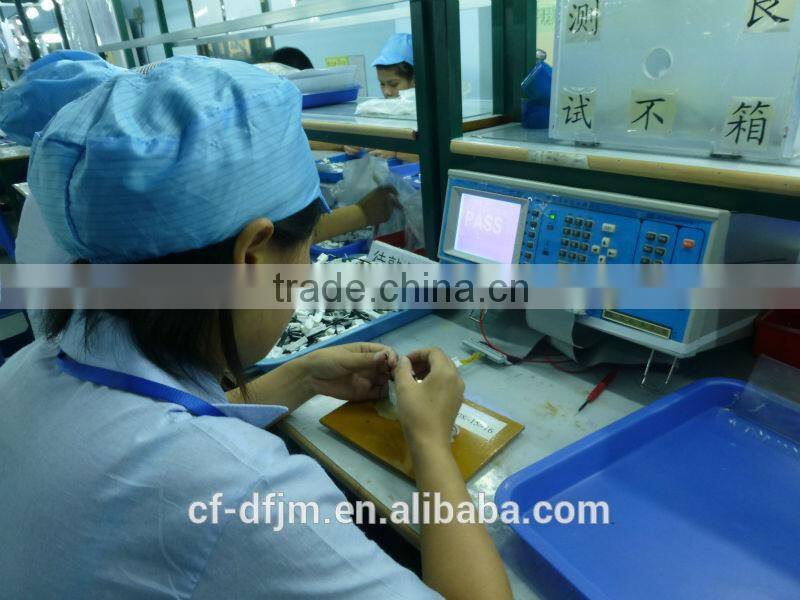

            Assembly workshop                  Continuity testing of  Assembly workshop

In-house molding,tooling, production,assembly and packing.

Our Material

We use ChangChun PBT from Taiwan, Dupont PA66 from America,

Ascend PA66 from America, and Jinfa PBT & PA66 from China.

Some of Our testing machines

   Thermal shock testing machine             Aging testing machine

                Solt Spray tester                                Cable plug tester

We do inspection during the manufacturing process and before packaging

to ensure high product quality.
