Home > Products > Japanese Type Quick Coupler > One Hand Nitto Quick Coupler With Male Thread MFJ1-SM

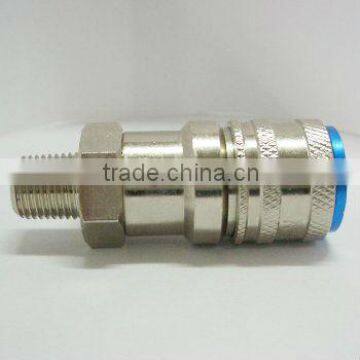

One Hand Nitto Quick Coupler With Male Thread MFJ1-SM
- Ningbo/Shanghai
You May Like
Product Details
| Type | Fittings | Place of Origin | Zhejiang, China | |
| Model Number | 9292951 | Brand Name | Mingfeng |
Product Description
NITTO Pneumatic Quick Connect Coupler
1.The NITTO quick connect coupler with robust construction accept 1/4" NITTO type of plugs
2.Available in female,male,hose end connection at size of 1/4",3/8" and 1/2"
3.Deep knurled socket sleeve for positive gripping
4.Proven and positive connection using ball-locking mechanism
5.Interchange with RECTUS 03,CEJN 314,CEJN 315
6.Maximum Working Pressure:250 PSI
7.Working Temperature Range:-40°F up to 225°F(-40°C up to 107°C) for standard Buna-N seals,depending on the medium,special seals are available on request,like EPDM,FKM.
8.Air Flow:35 SCFM at 100 PSIG with 10 PSIG pressure drop
| General features | |
| Product group | Coupler |
| Operate | One hand |
| Materials | Brass Nickel-Plated,Spring---SS,Balls---SS,Seals---NBR |
| Operating temperature | 0°C - 80°C |
| Operating pressure | 0 - 12 bar |
| Nominal pressure | 6 bar |
| Fluid | Compressed air and other fluids on low pressure |
| Packing | 5pcs/Small box |
