single model communication cables with Patch Cord Connector
- shenzhen
- T/T
You May Like
-
Duct bow-type drop single mode cable GJYXFHA
-
2 cores self-supporting ftth drop cable GJYXFCH
-
Cheap telecommunication self-supporting cable price
-
FTTH indoor FRP member flame retardant sheath covered wire cables
-
RUX FTTH 2.0x3.0mm GJXH drop cable LZSH outsheath
-
Drop cables 2.0x4.0mm GJXFV 2,4cores FTTH fiber optical cables
Product Details
| Place of Origin | Guangdong, China | Brand Name | szRUX | |
| Model Number | GJYXFCV |
Product Description
Product Description

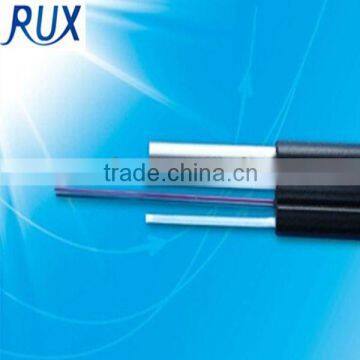

communication cable GJYXFCV
Optical | Jacket Machine | |||||||||
Test items | Units | Spec | Test items | Units | Spec | |||||
Single-mode fiber cutoff wavelength | λc/nm | ≤ 1250 | Test material | — | LSZH | |||||
λcc/nm | ≤ 1260 | |||||||||
Maximum Attenuation @ | 1310nm | dB/km | ≤ 0.40 | Tensile Strength | Elongation at break | |||||
1550nm | dB/km | ≤ 0.30 | Thermal aging treatment | |||||||
Dispersion Coefficient | 1288-1339nm | ps/nm•km | |D|≤3.5 | Before | MPa/ % | ≥10.0 ≥125 | ||||
1271-1360nm | Ps/nm•km | |D|≤5.3 | After | % | 20 ≥100 | |||||
1550nm | ps/nm•km | |D|≤18 | Time | h | 24×10 | |||||
Zero dispersion Wavelength | nm | 1300~1322 | Temperature | °C | 100±2 | |||||
Zero dispersion slope | ps/nm²×km | ≤0.092 | Change rate after heating aging | % | 20 | |||||
Light source continuity | — | continuous | ||||||||
Others characteristics | Cable Net weight | 1C | 22kg/km | 2C | 22kg/km | |||||
Product Length | m/Plywood Drum | 500 | 1000 | 2000 | ||||||
