High Quality SC APC/PC Fiber Optic Connector

FOB Price

US$ 2.68 - 3.18 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	szrunxiang
Model Number	SZRX-SC FAST CONNECTOR		Type	Other, HDMI

High Quality SC APC/PC Fiber Optic Connector
1.Telecome network
2.Fast connector
3.Indoor
4 Optical connunication network

High Quality SC APC/PC Fiber Optic Connector

Dementional drawing:

Area of applications
  Telecom network
  Ethernet network
  Optical laser
  Optical communication equipment
  CATV network

Description

ITEM	Technical Parameters
Applicable for	Drop cable.Indoor cable
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≤ -40dB
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB
Mechanical durability (500 times)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB

Advantages

1.manufacturer

2.High tensile strength, flexible

3.High precision of ceramic ferrule

4.High quality polished 100%test

Specification:

1.Low insertion loss and back reflection loss

2.Available hybrid adapter/shutter adapter

3.Available ceramic or PB sleeves

4.High precision alignment

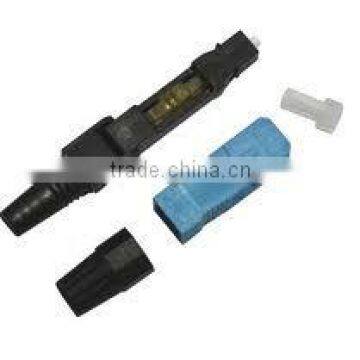

Picture show
