Home > Products > cable accessory > SC UTP Fiber Optic Connector

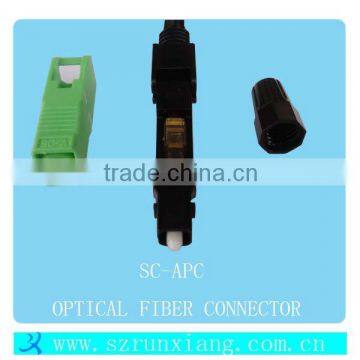

SC UTP Fiber Optic Connector
- SHENZHEN
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | szrunxiang | |
| Model Number | SZRX-SC FAST CONNECTOR | Type | Other, HDMI |
Product Description
Specifications
1.ISO9001:20002.FAST CONNECTION
3.SUPPLY FOR 500000 pieces
4.DELIVERY IN TIME
5.USE INDOOR CABLE
SC FAST CONNECTOR
DESCRIPTION
ITEM | Technical Parameters |
Applicable for | Drop cable.Indoor cable |
Optical fiber diameter | 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
Return loss | ≤ -40dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
PICTURE SHOWS
packing
use details
