Home > Products > cable accessory > Newest hot sale fiber optic FC fast connector for ftth

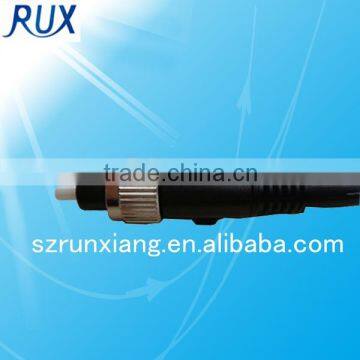

Newest hot sale fiber optic FC fast connector for ftth
- 20000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | RunXiang | |
| Model Number | FC Fast Connector |
Product Description
Specifications
Newest hot sale fiber optic FC fast connector for ftth1.Low Insertion Loss
2.High Return Loss
3.Fast delivery
Newest hot sale fiber optic FC fast connector for ftth
| Product Description |
It is the two end precision optical fiber optic jumper, dock up according to the transmission medium can be divided into common silicon-based optical single-mode, multi-mode jumpers, and other such as plastic for transmission medium of fiber optic jumper cables, By connecting head structure forms can be divided into: FC , SC,ST , LC , MTRJ , MPO, MU, SMA , FDDI , E2000 , DIN4 , D4 etc various forms.
Product Features |
1.Accurate mechanical dimensions
2.Low insertion loss
3.High reture loss
4.Meet IEC61754-4 requirement
5.All material meet the ROHS
Application Field:
1.Used to open the FTTH fiber terminal end.
2.The recovery,maintenance after the broken fiber accident.
3.Lan ,Wan,date and video transmission
4.The construction and maintenance of the fiber end user access
5.Optical fiber access mobile station
Parameter:
| Type | FC-UPC | |
| Performance Indicators | IEC61754-4,ROHS | |
| Insertion loss | Single Mode | Multi-Mode |
| ≤0.5dB | ≤0.3dB | |
| Return Loss | ≤-50dB(PC) ≤-60dB(APC) | ≤-25dB |
| Mechanical Durability | 0.25Db MAX | 0.15Db MAX |
| Connection Time | NOM≤90s | |
| Suitable for cable outer diameter | 0.9mm 2.0mm 3.0mm 2×3.0mm | |
| Working Temperature | -40°c-85°c | |
| Storage Temperature | -40°c-85°c | |
| Product Picture |
| Our Factory |
