1.Product Name

Top Quality 1.2083 steel plate -Dongguan Yaoteng Trade

2.1.2083 Equivalent Grade

• Chinese GB 3Cr17NiMnMo
• American AISI 420
• German DIN 1.2083
• Japanese JIS S136

3.1.2083 Comparative Standards

GB, AISI, ASTM, ASME, EN, BS, DIN, JIS

4.1.2083

round bar

Chemical Compositions

5.Specification of 1.2083 steel

Round bar

Diameter:1mm-2000mm

6.Specification

Plate/sheets

Sheets size: Thickness: 0.1mm-800mm Width: 10mm to 1500mm

1.2083 Cold-rolled sheet: Thickness: 2-5mm Width:1000mm Length: 2000mm

1.2083 Hot-rolled sheet: Thickness:6-80mm Width: 210-610mm

Length: We can supply any length based on the customer's requirement.

7.Ultrasonic inspection

100% ultrasonic inspection for any inperfections or based on the customer's requirement.

8.Applications

Used for making the corrosion resistance and wear resistance of high quaity plastic mould, transport plastic mould, like PVC and CD mould

9.Annealing

-Heat to 750~800° C, with hold at minimum rate for 3 hours.
-Furnace cooling.

10.Stress relieving

To be carried out after machining and before the final heat treatment.
Heating to 600~650° C for 2 hours.

11.Hardening:

Preheating to 600~700° C;
- Austenitizing at 990~1040° C
- Oil or thermal bath cooling at 500~550° C, then oil cooling according to the steel shape and size.
Quenched hardness: HRC 52~56

12. Tempering

To be carried out after hardening according to the required hardness; At 170-270 ° C in order to match hardness and resistance to corrosion; Permanence for at least 2 hours;
Tempering must be repeated at least twice at a temperature 30 ° C lower than the previous. Cooling in air.

13. Ultrasonic test standards

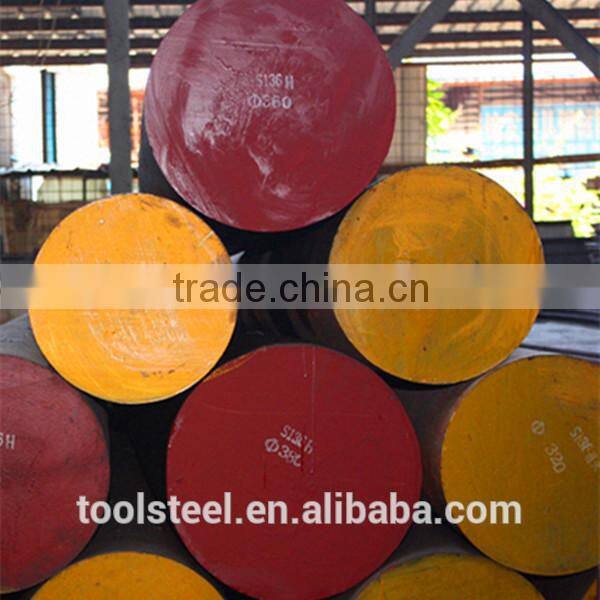

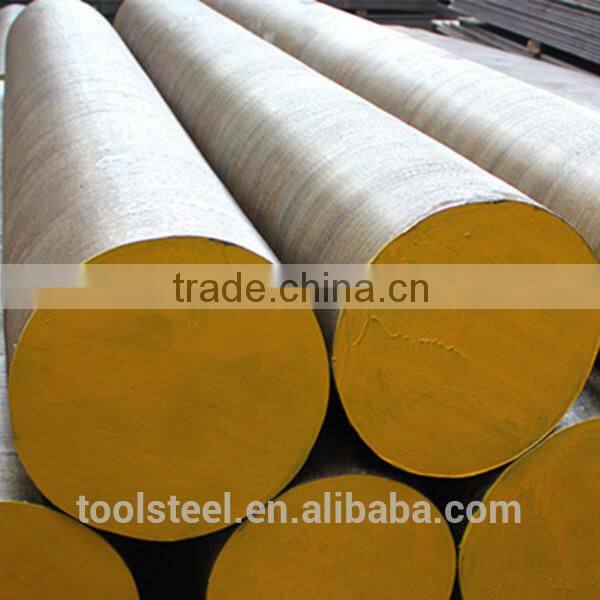

14.1.2083 round bar Delivery Condition

Hot rolled  or  forged condition, annealing or Pre-harden  , black or machined surface

15.Delivery Time

7-15 days

16.Competitive Advantage:

1. Pure & Precision mirror polishing

2. Highly quality of corrosion resistance

3. Convenient heat treatment for quenched&tempered steel, with out deformed

4. Easy for welding

5. Competitive price

6. Fast production leadtime

7. All the material are inspected with 3 times to meet the highly standards

8. Stable quality to be guarantee

Another STOCK STEEL FOR PROMOTION:

17.Hot work tool steel

DIN 1.2343, 1.2344, 1.2365, 1.2367, 1.2581, 1.2714, 1.2885, etc.

AISI H10, H10A, H11, H12, H13, H21, L6, etc.

JIS   SKD5, SKD6, SKD61, SKT4, etc.

18.Plastic Mould Steel

DIN 1.2083, 1.2085, 1.2311, 1.2312, 1.2316, 1.2738, etc.

AISI 420, P20, P20+S, P20+Ni, etc.

DAIDO NAK80

19.High Speed Steel

DIN 1.3343, 1.3355/ AISI M2, T1.

20.Alloy steel

AISI/SAE 4140, 4130, 4340, 8620, 8640, etc.

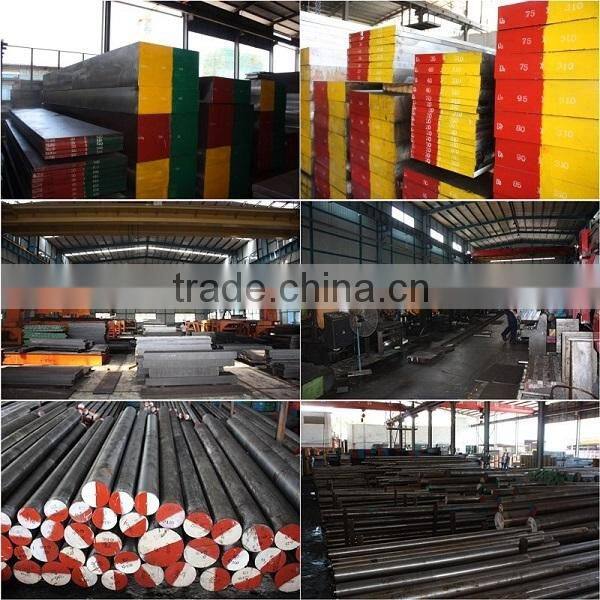

Warehouse Steel Stock-Dongguan Yaoteng Trade Company
