Quality Raw Material H13 Die Steel Round Bar From Yaoteng Trade Company

1.Product Name

Die Steel H13 1.2344 skd61 Round Bar-Dongguan Yaoteng Trade

2. Steel grade

GB4Cr5MoSiV/DIN 1.2344/AISI H13/JIS SKD61

3. Chemical Composition(%)

Carbon:0.32/0.45; Silicon:0.80/1.20; Manganese:0.20/0.50;
Chromium:4.75/5.50; Molybdenum:1.10/1.75; Vanadium:0.80/1.20;
Phosphorus,Sulphur:0.030max;

4.Properties

1 excellent high temp. Strength and thermal fatigue resistance

2 High ductility and toughness

3 good resistance to heat checking, cracking, hot wear and plastic deformation.

5.Specifications

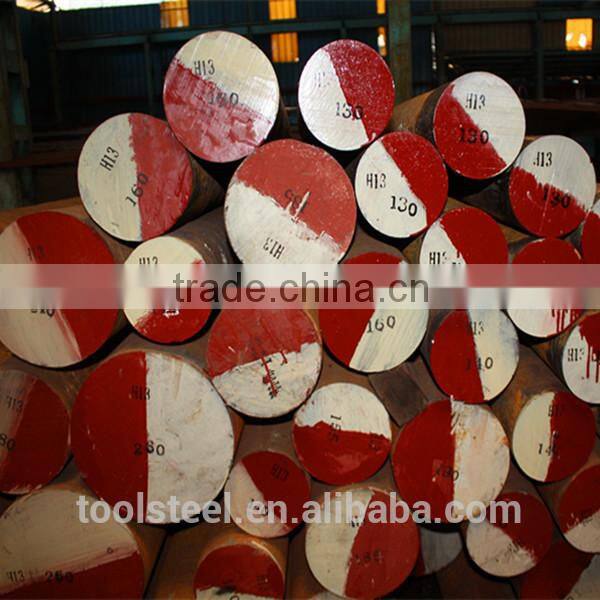

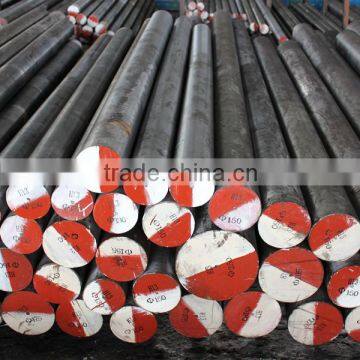

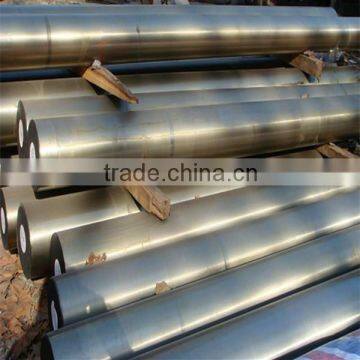

h13 Round bar

dia. 1-16mm(cold drawn);
dia. 10-50mm(hot rolled);
dia. 50-180mm(hot forged);
dia. 180-300(free forging);

6.Specifications

H13 Plate/Flat bar

Thickness: 1-2.5mm(cold rolled); 1.5-20mm(hot rolled); 20-300mm(hot forged);
Width: Max 800mm;

7.H13 Surface Condition

1)Black,Peeled,Turned;

2)H13 steel must be free of heavy scale,deep pitting,laps,porosity,excessive nonmetallic inclusions,seams,cracks,slivers,scale marks,dents,soft and hard spots,pipes or any defects that would detrimentally affect the suitability of 1.2344 steel.

3)Visual examination for H13 die steel shall be made to ensure compliance with the requirements for workmanship,finish,dimensions and tolerances,identification marking and packaging.

8.Straightness

The permissible deviation of 1.2344 mold steel shall not exceed 3mm in 1000mm length.This applies also to bars under one meter in length.Measurement is taken on the concave side of AISI H13 mould steel with a straight edge.

9.Hardness

DIN 1.2344 die steel annealed hardness values when obtained in accordance with the latest issue of test methods should not exceed 255HB.

10.Heat Treatment of H13 round bar

Annealing
1)Heat H13 tool steel slowly and uniformly to 880°C.
2)Soak for 3-4 hours and cool in the furnace to room temperature.
3)Cool 1.2344 tool steel in the furnace to room temperature.

Hardening
Pre-heat aisi h13 tool steel to the temperature 780°C.Increase the material to the hardening temperature of 1020°C.Soak thoroughly at the temperature for thirty minutes per 25mm,then cool or quench. when heating for hardening,it should not exceed 1020°C.

Tempering
DIN 1.2344 tool steel should be done with the least possible delay after hardening.Select a suitable tempering temperature, heat slowly and uniformly.When H13 steel has reached the desired temperature, soak for at least one hour per 25mm of whole diameter. Double tempering is recommended.The second tempering should be a repetition of the first.

11.Quality Certificate

1)Grade,Size,Quantity in Number & Weight
2)Heat Number
3)Chemical Composition
4)Hardness
5)Ultrasonic Test Report.

12.PAYMENT

30% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight

Another STOCK STEEL FOR PROMOTION:

13.Hot work tool steel

DIN 1.2343, 1.2344, 1.2365, 1.2367, 1.2581, 1.2714, 1.2885, etc.

AISI H10, H10A, H11, H12, H13, H21, L6, etc.

JIS   SKD5, SKD6, SKD61, SKT4, etc.

14.Plastic Mould Steel

DIN 1.2083, 1.2085, 1.2311, 1.2312, 1.2316, 1.2738, etc.

AISI 420, P20, P20+S, P20+Ni, etc.

DAIDO NAK80

15.High Speed Steel

DIN 1.3343, 1.3355/ AISI M2, T1.

16.Alloy steel

AISI/SAE 4140, 4130, 4340, 8620, 8640, etc.

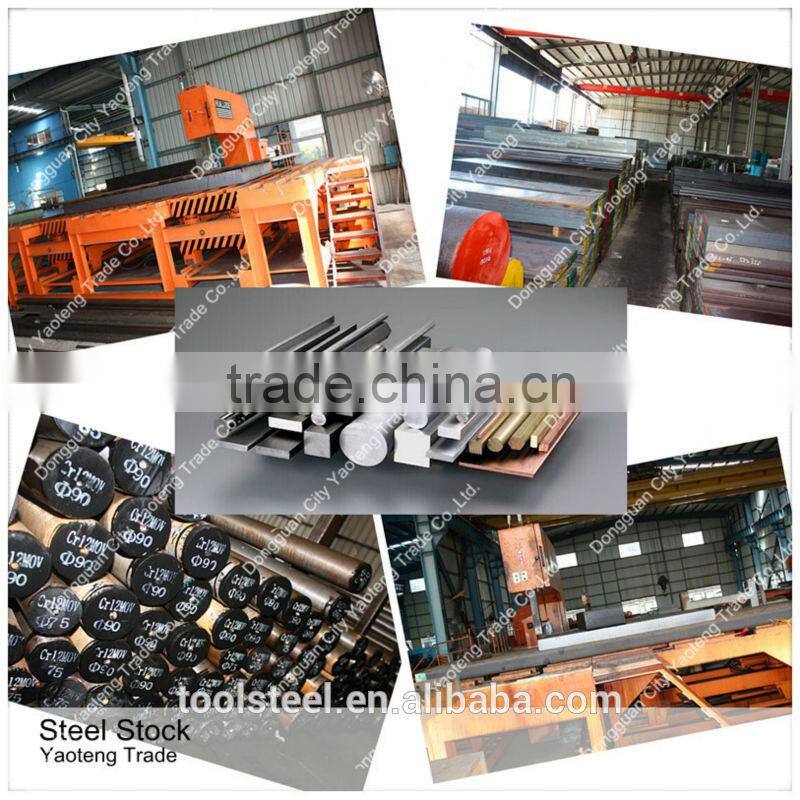

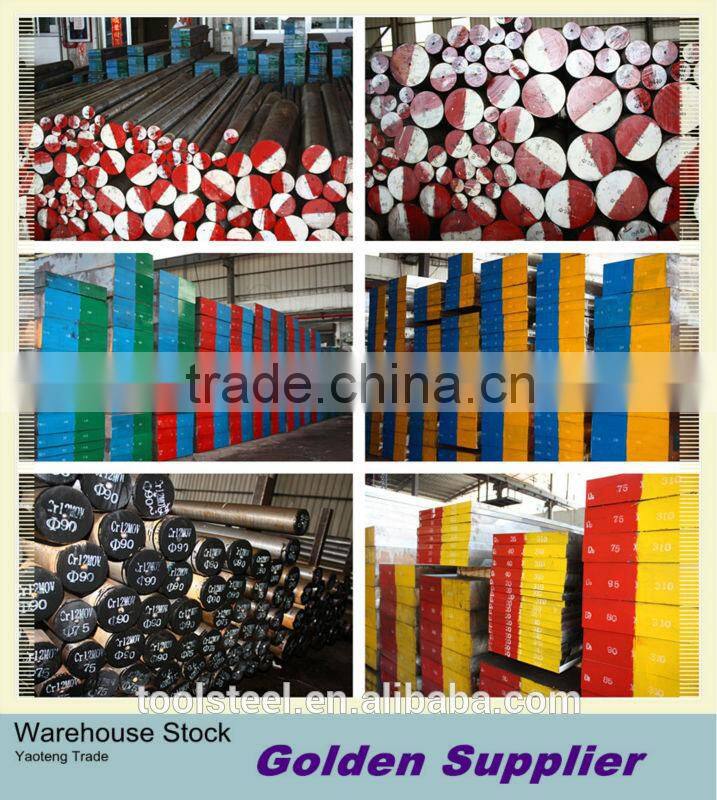

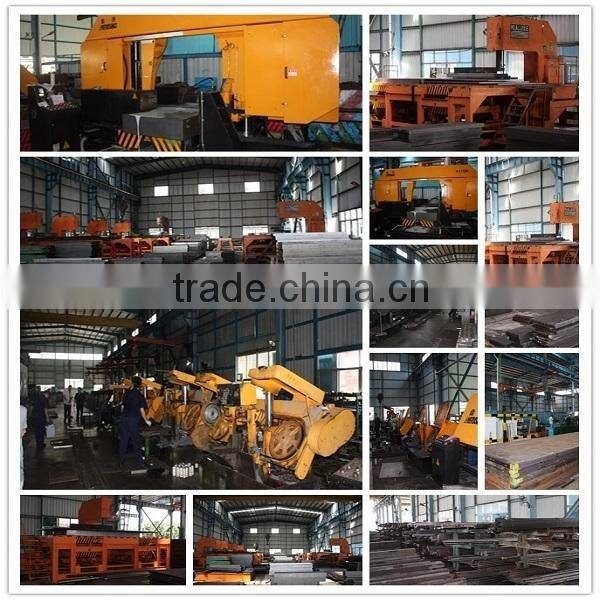

Warehouse Steel Stock-Dongguan Yaoteng Trade Company

H13 Steel Round Bar Product Details-Dongguan Yaoteng Trade Company

Our Steel Advantage:

1 excellent high temp. Strength and thermal fatigue resistance

2 High ductility and toughness

3 good resistance to heat checking, cracking, hot wear and plastic deformation.

Any Interested in Our Product Pls Contact with Your Friend-Fannyyau

Thanks for visit our website, any question contact us!

Contact Details:
