Tool Steel Cr12Mo1V1 / D2 / 1.2379 / SKD11 Hot Rolled Steel Plate

1.Product Name

Tool steel Cr12Mo1V1 / D2 / 1.2379 / SKD11 hot rolled alloy steel

2. Typical applications

moulds,punches,swaging dies,cold forging dies,forming dies,gauges,blades,shears.

3.Comparative Standards

1.2379/SKD11/ D2/ Cr12Mo1V1/ BD2

4.Chemical Compositions

5.Specifications

Round bar

 Round Bar Diameter 60mm - 800mm

6.Specifications

Plate

 Flat Bar 25-400mm*200-800mm

7.Heat Treatment

  D2 steels should be preheated very slowly to 815ºC (1500ºF) and then temperature can be increased to 1010ºC (1850ºF). They are then held at 1010ºC (1850ºF) for 20 to 45 minutes and air cooled (air quenched).

8.Forging

 Forging of D2 steels can be done from 1065ºC (1950ºF) down to 954ºC (1750ºF). Do not forge below 926ºC (1700ºF).

9.Annealing

 Annealing of D2 steels should be done at 871 to 898ºC (1600 to 1650ºF) followed by slow furnace cooling at 4.4ºC (40ºF) per hour or less.

10.Tempering

 D2 steels can be tempered at 204ºC (400ºF) for achieving Rockwell C hardness of 61 and at 537ºC (1000ºF) for a Rockwell C hardness of 54.

11.Applications

  D2 tool steels are used for long run tooling applications, where wear resistance is important, such as blanking or forming dies and thread rolling dies.

12.PAYMENT

 30% advance by TT; Balance pay before the shipment against shipping documents or irrevocable LC at sight

Another STOCK STEEL FOR PROMOTION:

13.Hot work tool steel

DIN 1.2343, 1.2344, 1.2365, 1.2367, 1.2581, 1.2714, 1.2885, etc.

AISI H10, H10A, H11, H12, H13, H21, L6, etc.

JIS   SKD5, SKD6, SKD61, SKT4, etc.

14.Plastic Mould Steel

DIN 1.2083, 1.2085, 1.2311, 1.2312, 1.2316, 1.2738, etc.

AISI 420, P20, P20+S, P20+Ni, etc.

DAIDO NAK80

15.High Speed Steel

DIN 1.3343, 1.3355/ AISI M2, T1.

16.Alloy steel

AISI/SAE 4140, 4130, 4340, 8620, 8640, etc.

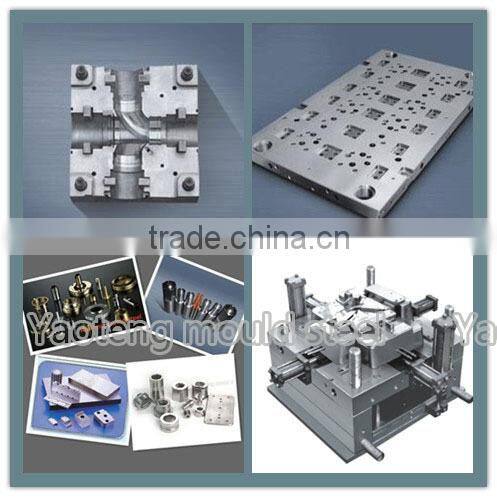

D2 Product Details and Application

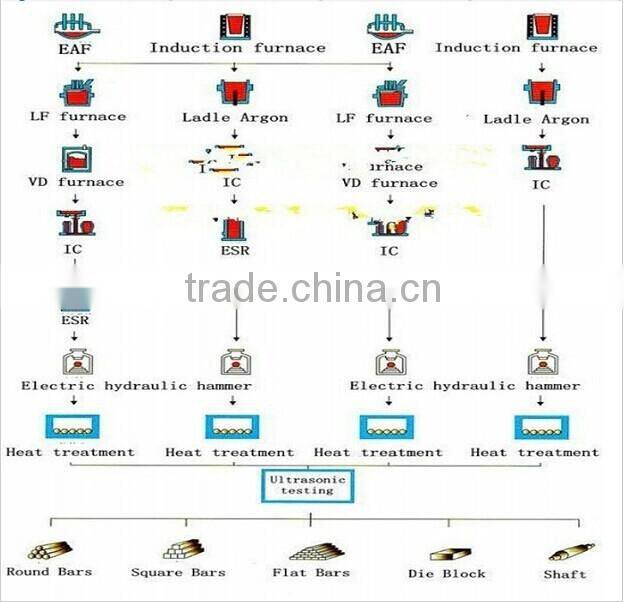

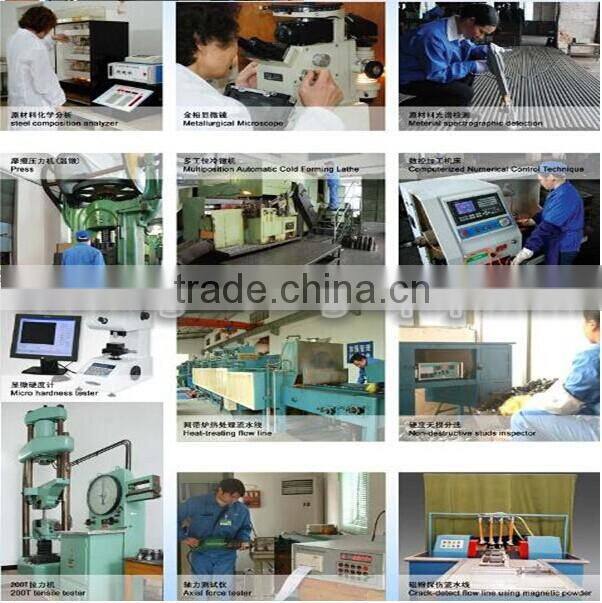

productation procss and quality control

Warehouse Steel Stock-Dongguan Yaoteng Trade Company
