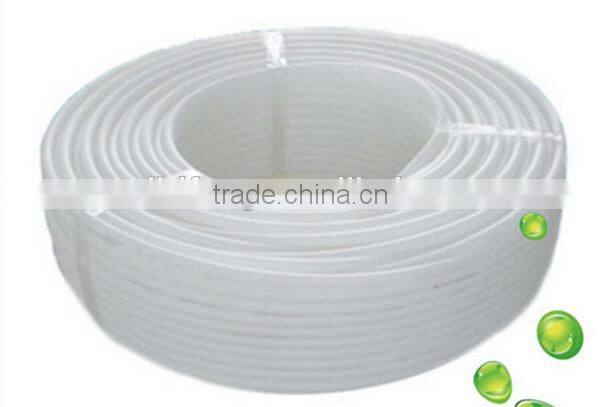

PERT Gas Tubing

FOB Price

US$ 0.1 - 1 / Meter

1000 Meters(Min. Order)

Port ningbo/shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	LF
Model Number	LF1216/1418/1620/2025/2026/2632	Material	PERT and Aluminum
Heat Conductivity	0.45w/mk	Specification	LF1216/1418/1620/2025/2026/2632
Linear Expansion Coefficient	0.025mm/mk	Outer Diameter	16~32mm
Length	50/100/200m/roll	Thickness	2.0~3.0mm
Standard	ISO9001/14001,CE	Color	Yellow,White,etc

Product Description

Specifications

PERT gas tubing
wear resistant
non-leaking
100 green material
can be recycle

PERT gas tubing

anti-corrosion

wear resistant

Brusting pressure:5.5~8Mpa

DIN8077DIN8078

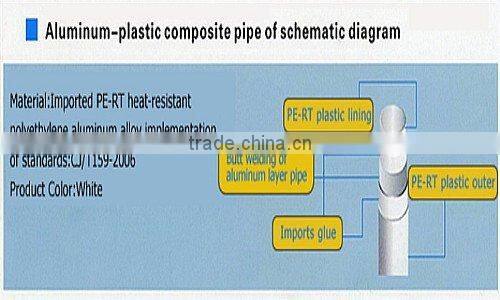

100% diffusion-resistant Multilayer composite (MLCP) pipe, five layer (PERT-adhesive agent -Continuously overlapped welded aluminum-adhesive agent-PERT), for general plumbing, under floor heating and radiator-connection applications. Manufactured to the strictest European standard.

---------------------------------------------------------------------------------------------------------------------------------------------------------------

The materials used to form the pipe are as follows:

· Outer Layer: Polyethylene raised temperature (PE-RT) plastic coat: protects the aluminum core and allows the outer shell to be colored without contaminating the water.

· Adhesive layer: interface zone between the outer PE-RT layer and the aluminum core. Bonds the material together and prevents shear slippage.

· Aluminum layer: thin layer of lap welded aluminum which forms a 100% oxygen barrier to protect against corrosion and allows the pipe to have the ‘form-stable’ characteristic.

· Adhesive layer: interface zone between the inner PE-RT layer and the aluminum core. Bonds the material together and prevents shear slippage.

· Inner layer: inner layer of clear PE-RT. Inert and does not affect the water in any way. Allow for a smooth wall surface to reduce pressure drops for water flow.

Product classifications

Products	specif ication	O.D (mm)	I.D (mm)	wall thickness (mm)	PN Mpa	Length /roll(m)
pipe (PERT-AL-PERT)	1216	16	12	2	2	150
	1418	18	14	2	2	100
	1620	20	16	2	2	100
	2025	25	20	2.5	2	50
	2632	32	26	3	2	50
	3340	40	33	3.5	2	120

Pre-sale service

1. Sample can be offered with sample charge and courier fee by buyer's side.

2. We have full stock,and can deliver within short time.Many styles for your choices.

3. OEM and ODM order are accepted, Any kind of logo printing or design are available.

4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you

5. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

6. We have rich experience of design, manufacture and sell lingerie, we cherish every order from our honor.

Packing

1. Normally, we will apply polyethylene bag and carton.

2. We can also arrange it according to customers’ requirements.
3. Different packing will appear to different products.

Transport

One roll size is 0.54*0.2*0.54=0.058CBM.

Container size	Available Volume	Rolls can hold
20ft	26CBM	1850
40ft	56CBM	4000
40HQ	67CBM	4750

♥Whatever pipes you want,we will try our best to supply for you.

♥We have rich experience of design, manufacture and sell lingerie.

♥ Sample can be offered with sample charge and courier fee by buyer's side.

♥Looking forward to receive good news from u.

♥Best wishes!
