KTMS-B Series High Speed Plastic Film Rotogravure Printing Machine
- Ningbo/Shanghai
- T/T
You May Like
-
High Quality Roto Gravure Printing Machine,Gravure Printing Machine Price
-
High Speed Auto 8 Color Rotogravure Printing Machine China
-
New Technology Designed Rotogravure Printing Machine 8 Color
-
Top quality Rotogravure Printing Machine In Thailand
-
2016 Newest Type 4 Color Rotogravure Printing Machine
-
New Technology Designed Rotogravure Printing Machine 2
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | KETE | Model Number | KTMS-B | |
| Usage | Paper Printer, Other, Paper Printer, Platic film, Aluminum Foil | Automatic Grade | Automatic | |
| Voltage | 380V/3P | Gross Power | About135kw | |
| Dimensions(L*W*H) | L13500 x W2900 x H2800mm | Weight | about 17000kg | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Plastic Film Rotogravure Printing Machine
Feature:
This 8 color plastic film rotogravure printing machine is suitable for roller to roller printing plastic film, aluminum Foil, BOPP, PET, PVC, PVC Foil, PE, CPP and Paper etc. It is widely use in high quality packaging material printing.
Main Technical Specification:
Main Point | Model | KTMS-B |
Printing Colors | 2~12 Colors (base on customer requirement) | |
Printing Material | Plastic Film / Paper / Aluminum Foil etc | |
Printing Width | 600mm/800mm/1000mm/1200mm | |
Heating Way | Electrical heating, Gas heating | |
Printing speed | 120m/min | |
Total power | About 135kw(8 color) | |
Machine weight | About 17 Ton (8 color) | |
Machine Size(LWH) | 13500 x 2900 x 2800mm (8 color) | |
Unwind &Rewind | Type | Twin-reel rotating design |
Raw Material Diameter | 600mm (Optional 800mm or more) | |
Paper Core Diameter | 76 mm(optional152mm) | |
Material Splicing and cutting | Manual(Optional automatic) | |
Tension Control | Auto tension | |
Air-shaft | Shaft type air shaft | |
Printing Unit | Printing cylinder | Shaft-less type design |
Printing cylinder Diameter Range | 120~300mm (special size possible) | |
Color register precision | Vertical (Y-Axis) ≤±0.10mm (automatic) Horizontal (X-axis) ≤±0.10mm (Manual) | |
Emboss rubber roller Diameter | 135 mm (NBR Shore (A) 60 °~ 65°) | |
Ink recycle | Pneumatic Ink pump | |
Control Part | Auto color register system | Include |
Web video inspection system | include | |
Water cooling system | Not Include(Optional possible) | |
3 motor drive tension system | Not include(optional possible) | |
7 motor drive tension system | Not include(optional possible) | |
Ink viscosity | Not include(optional possible) | |
Reverse Printing device | Not include(optional possible) | |

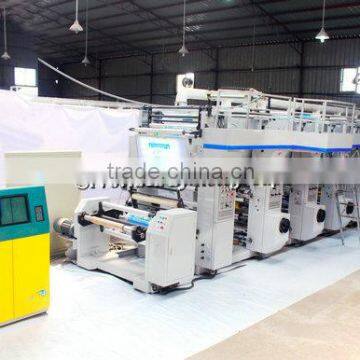

Machine Detail Show:
Printed Sample Show:
Other machines may be you will interesting, pls click the following picture get more details
KTLM-B Series Laminating Machine
KTSM-B Series Slitting Machine
TSS-A Sereis Three Side Sealing Pouch Making Machine
TSS-F Series Zipper Pouch Making Machine
KTGS-A Series Bottle Label Folding and Glue Sealing Machine
KTIM-B Series Label Inspection Machine
Our Certification
Question: Are you Manufacture or Trading Company?
Answer:We are film extrusion machines, printing machines, bag making machines ,laminating machines, slitting machines, and other related machines manufacturer nearly 20 years, we had established our own trading company to expand our foreign market business, and provided our customer better service.
Question: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
Question: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.
Question: Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
